Automatic Tube Filling And Sealing Machine

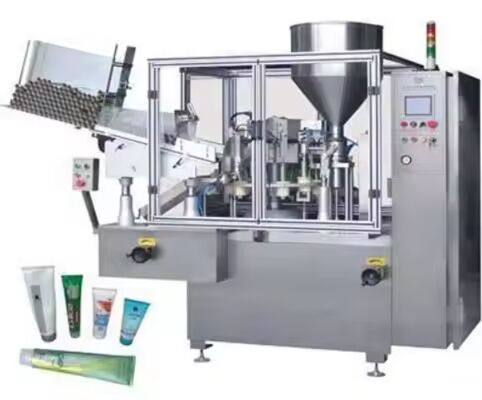

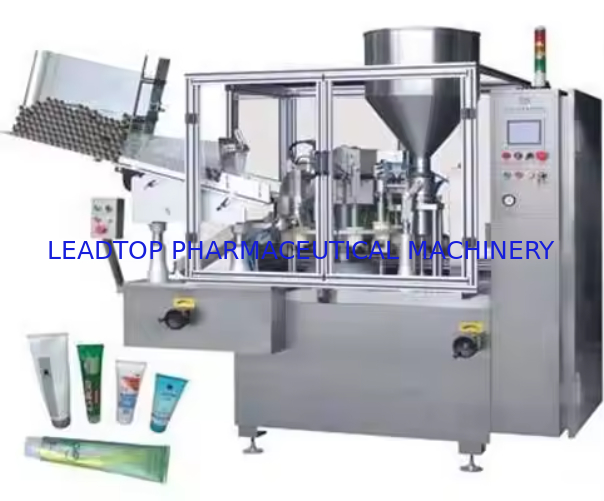

Automatic Aluminum Soft Tube Filling and Sealing for Cosmetic Cream Tube Filling Machine

Automatic Aluminum Soft Tube Filling and Sealing for Cosmetic Cream Tube Filling Machine

Brand Name:	LTPM China
Model Number:	LTRG-Series
MOQ:	1set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	15Set/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Automatic Grade:

Automatic

Voltage:

380(220)V/50Hz

Material:

SUS 304/316L

Production Capacity:

25-40 Pcs /min

Motor:

1.5kw

Tube Height:

50-250mm

Weight:

300kg

Dimension(L*W*H):

1500*700*1800mm

Packaging Details:

Export Standard Wooden Case

Supply Ability:

15Set/Month

Highlight:

Ultrasound Tube Filling And Sealing Machine

40pcs/min Tube Filling And Sealing Machine

1.5kw Automatic Tube Filling And Sealing Machine

Product Description

This model machine adopts 12station design. Suitable for all kinds of folding Packing for metal tube. can easily realize the plastic tube and the metal tubePacking by replacing the moulds and parts. It is an ideal equipment for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, foodstuff, adhesives etc industries, and it complies with the standard of GMP.

Technical characters

1. High grade operation screen with LCD display and PLC control, easy operation and more humanization By stepless speed adjust, parameter set, output count, pressure index and failure display.

2. Automatically executing tube supply,photocell register, inert gas filling (optiona1), material filling and sealing, batch number printing, final products output.

3. High prevision photocell register, that reduces the chromatic aberration scope.

4. Adjustment parts external in position, position digital display, convenient and accurate adjust (suitable for variable products producing).

5. Mechanical, photoecectrical, electric, pneumatic integrative controlling, reaches no tube no filing function: warning if tube error positioned or pressure too 10w, it will automatic stop while open the protective door.

Technical parameters

Product	Automatic Tube Filling And Sealing Machine
Total Power	2Kw 380V/220V 50Hz
Heat sealing power	3Kw
Tube material	Plastic Tube, Laminate Tube
Tube diameter(ram)	φ10-φ60
Tube length(mm)	50-300 (customizable)
Filling volume	5-800ml/pcs (Adjustable)
Filling accuracy	≤±1%
Speed(r/min)	2.5-7
Product capacity(pc/min)	30-70 (Adjustable)
Air supply	0.55-0.65Mpa 0.1 m 3 /min
Overall dimension	2620×1020×1980mm
Machine weight	1100kg
Certificate	CE ISO
Warranty	1 Year

Feature highlights

The LTPMCHINA Automatic Soft Tube Filling and Sealing Machine is designed for industrial use, suitable for filling and sealing cosmetic, foodstuff, and adhesive products. It features a 12-station design with PLC control, LCD display, and stepless speed adjustment for efficient operation. The machine supports various tube materials, including plastic and aluminum, with customizable tube length and adjustable filling volume. It ensures high precision with ≤±1% filling accuracy and operates at speeds of 30-70 tubes per minute. Additional functions include automatic tube supply, inert gas filling (optional), batch number printing, and safety mechanisms like automatic stop if the protective door is opened.

Supplier highlights

This supplier is both a manufacturer and trader, collaborating with Fortune 500 companies and providing quality control. They offer full customization and design-based customization. Main exports are to Taiwan, Mexico, and Vietnam. Customer satisfaction stands at 100.0%.
