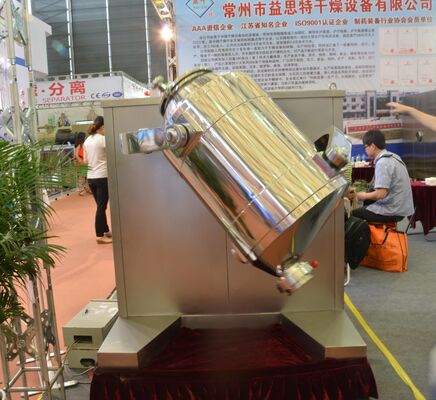

Low Noise Granule Raw / Powder Mixing Machine Three Dimensional
|Place of Origin:||China|
|Brand Name:||LTPM China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 SET|
|Packaging Details:||Export standard wooden case|
|Payment Terms:||L/C, T/T|
powder mixing equipment,
dry powder mixing machine
Low Noise Three Dimensional Powder Mixing Machine With Shortly Mixing Time
Volume of mixing drum (L):100-1000
Max loading volume (L):80-750
Power of motor (kw):2.2-11
Model No.: SYH
Max loading weight (kg):80-500
Material: Stainless steel 304
Total Weight: 500-1800 kg
Power Supply: 380V 50HZ Three Phase
Certificate: CE Certificate
1. Structure: this machine consists of stand, transmission system, electric control system, multi·directional motion mechanism, mixing drum and so on. The mixing drum contacted with raw material is made of stainless steel. The inner and outer wall of drum is polished.
2. Meanwhile it avoids the phenomenon of segregation and accumulation caused by centrifugal effect in ordinary mixer and no dead corner. It can guarantee the best quality of mixed raw material.
This machine is suitable for many industries such as pharmaceutical industry, chemical industry, metallurgy industry, foodstuff industry, architecture industry and institutes. It can mix powder and granule raw materials having good fluidity and make the mixed raw materials reach the best mixing state.
|Model||SYH -100||SYH -200||SYH -400||SYH -600||SYH -800||SYH -1000|
|Volume of mixing drum (L)||100||200||400||600||800||1000|
|Max loading volume (L)||80||150||300||450||600||750|
|Max loading weight (kg)||80||150||200||300||400||500|
|Power of motor (kw)||2.2||3||4||5.5||7.5||11|
|Overall dimensions (mm)||1200×1800
