380V 50HZ Three Phase Pharmaceutical Powder Mixer Three Dimensional

380V 50HZ Three Phase Pharmaceutical Powder Mixer Three Dimensional

powder mixing equipment

powder mixer machine

Place of Origin:


Brand Name:

LTPM China



Model Number:


Contact Us

Request A Quote
Product Details
Product Description

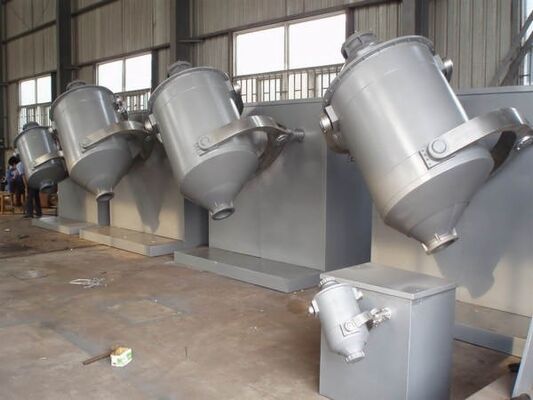

Three Dimensional Powder Mixing Machine 380V 50HZ Three Phase



Quick Detail:



Rotating speed(r/min):10-15

Power of motor (kw):2.2-11

Volume of mixing drum (L):100-1000

Model No.: SYH

Max loading volume (L):80-750

Max loading weight (kg):80-500

Material: Stainless steel 304

Total Weight: 500-1800 kg

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate





1. Meanwhile it avoids the phenomenon of segregation and accumulation caused by centrifugal effect in       ordinary mixer and no dead corner. It can guarantee the best quality of mixed raw material.

2. During the period of operation, because the mixing drum has multi-directional actions of motion, it               speeds up the fluid and diffused effect of raw material.
3. Structure: this machine consists of stand, transmission system, electric control system, multi·directional     motion mechanism, mixing drum and so on. The mixing drum contacted with raw material is made of           stainless steel. The inner and outer wall of drum is polished.






This machine is suitable for many industries such as pharmaceutical industry, chemical industry, metallurgy industry, foodstuff industry, architecture industry and institutes. It can mix powder and granule raw materials having good fluidity and make the mixed raw materials reach the best mixing state.






Model SYH -100 SYH -200 SYH -400 SYH -600 SYH -800 SYH -1000
Volume of mixing drum (L) 100 200 400 600 800 1000
Max loading volume (L) 80 150 300 450 600 750
Max loading weight (kg) 80 150 200 300 400 500
Rotating speed(r/min) 15 12 10 10 10 10
Power of motor (kw) 2.2 3 4 5.5 7.5 11
Overall dimensions (mm) 1200×1800
Weight (kg) 500 750 1200 1500 16500 1800



Competitive Advantage:



1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
