2D Powder Mixing Machine Barrel Granule Mixing Tank 180-12000L 1.15-60kw
|Place of Origin:||China|
|Brand Name:||LTPM China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 SET|
|Packaging Details:||Export standard wooden case|
|Payment Terms:||L/C, T/T|
dry powder mixing machine,
powder mixer machine

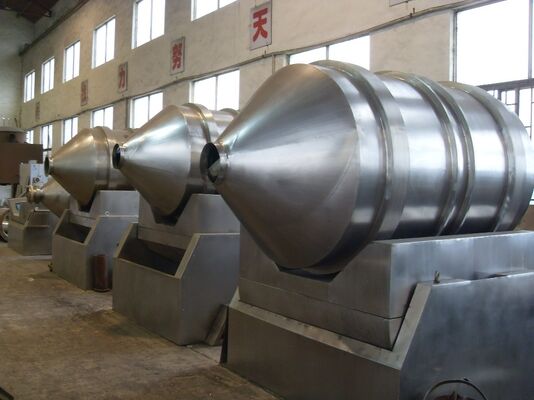

2D Powder Mixing Machine For Mixing Of Powder And Granule Materials
Total Weight: 340-12000 kg
Total Motor PowerL 1.15-60kw
Barrel Weight: 60-25000kg
Loading Capacity: 180-12000L
Model No.: EYH
Material: Stainless steel 304
Power Supply: 380V 50HZ Three Phase
Certificate: CE Certificate

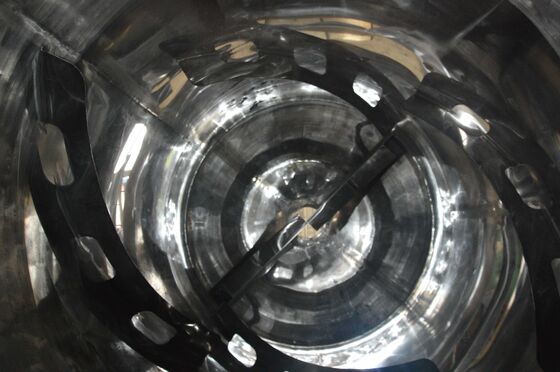

The mixing tank is a cylinder-shaped barrel without any strring decive inside, which makes the self-rotation around its axis and also produces reversible swing movement around its horizontal axis at the same time. Therefore, the target materials inside the barrel coulu be mixed diffusely and moveably. It is features with short mixing time, good uniformity, big output, convenient to discharging, etc. It is for prompt, even and cast mixing.
The mixer is suitable for mixing of dry granule materials in pharmaceutics, chemical and foodstuff industries, especially for those in high tonnage.
|Model||Barrel volume (L)||Loading capacity (L)||Max Loading Weight (Kg)||Turn/Swa (r/min)||Total Power (Kw)||Overall Dimension (X*Y*Z*Z1) (mm)||Y1 (mm)||Barrel Dia. (mm)||Total Weigh
