Multi Directional Motion Powder Mixing Machine With Transmission System
Quick Detail:
Power of motor (kw):2.2-11
Volume of mixing drum (L):100-1000
Model No.: SYH
Max loading volume (L):80-750
Max loading weight (kg):80-500
Rotating speed(r/min):10-15
Material: Stainless steel 304
Total Weight: 500-1800 kg
Power Supply: 380V 50HZ Three Phase
Certificate: CE Certificate
Description:
1.During the period of operation, because the mixing drum has multi-directional actions of motion, it speeds up the fluid and diffused effect of raw material.
2.Meanwhile it avoids the phenomenon of segregation and accumulation caused by centrifugal effect in ordinary mixer and no dead corner. It can guarantee the best quality of mixed raw material.

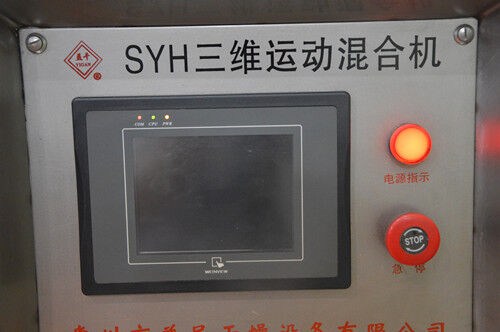

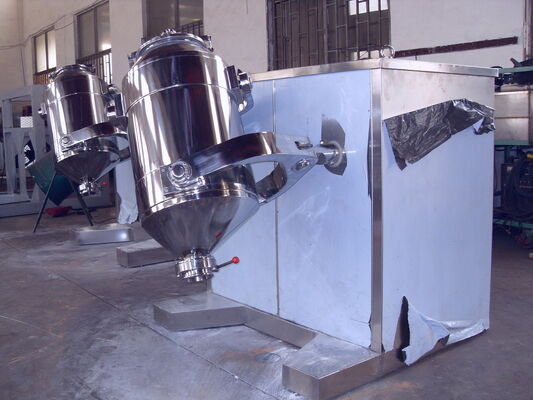

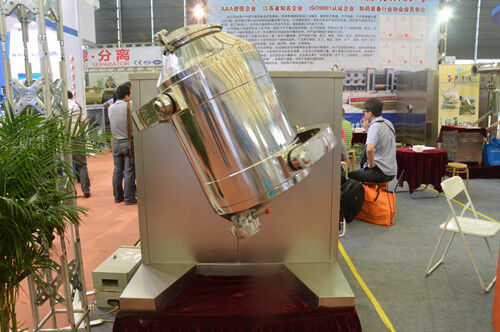

3.Structure: this machine consists of stand, transmission system, electric control system, multi·directional motion mechanism, mixing drum and so on. The mixing drum contacted with raw material is made of stainless steel. The inner and outer wall of drum is polished.
Applications:
This machine is suitable for many industries such as pharmaceutical industry, chemical industry, metallurgy industry, foodstuff industry, architecture industry and institutes. It can mix powder and granule raw materials having good fluidity and make the mixed raw materials reach the best mixing state.
Specifications:
| Model |
SYH -100 |
SYH -200 |
SYH -400 |
SYH -600 |
SYH -800 |
SYH -1000 |
| Volume of mixing drum (L) |
100 |
200 |
400 |
600 |
800 |
1000 |
| Max loading volume (L) |
80 |
150 |
300 |
450 |
600 |
750 |
| Max loading weight (kg) |
80 |
150 |
200 |
300 |
400 |
500 |
| Rotating speed(r/min) |
15 |
12 |
10 |
10 |
10 |
10 |
| Power of motor (kw) |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
| Overall dimensions (mm) |
1200×1800
×1500 |
1300×1600
×1500 |
1500×2200
×1500 |
1850×2500
×1650 |
1900×2400
×2100 |
1950×2500
×2400 |
| Weight (kg) |
500 |
750 |
1200 |
1500 |
16500 |
1800 |
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
