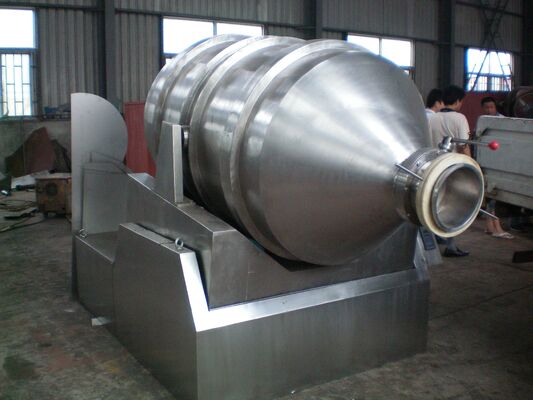

Fully Mixed Two Dimensions Chemical Powder Mixing Machine For Granule Materials
Quick Detail:
Material: Stainless steel 304
Loading Capacity: 180-12000L
Model No.: EYH
Total Weight: 340-12000 kg
Barrel Weight: 60-25000kg
Total Motor PowerL 1.15-60kw
Power Supply: 380V 50HZ Three Phase
Certificate: CE Certificate
Description:

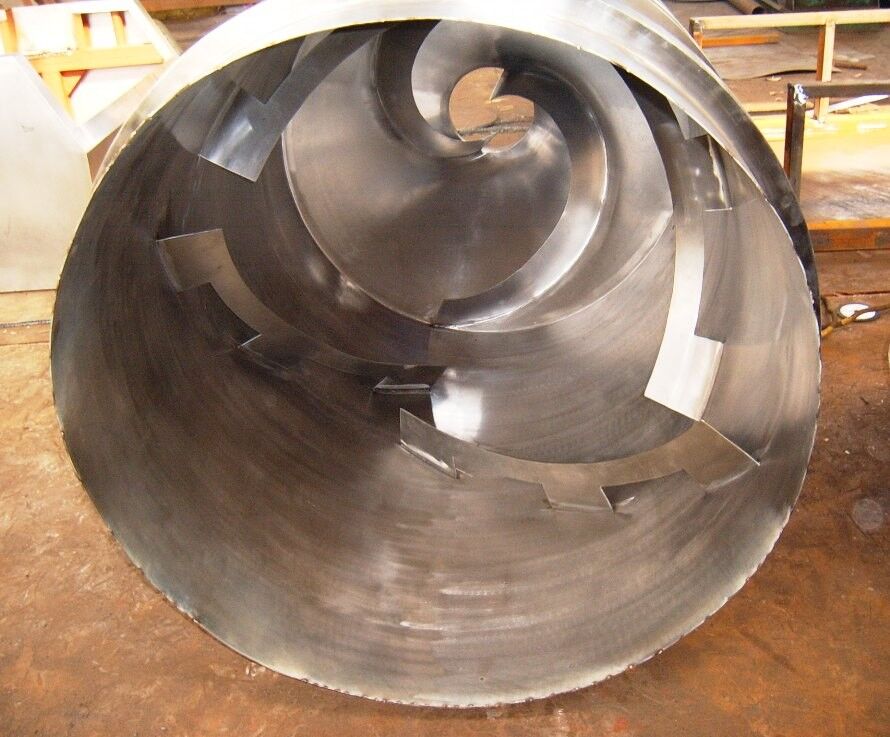

The mixing tank is a cylinder-shape barrel without any stirring device inside, which makes the self-rotation around its axis and also produces onvert swing movement around its plane axis synchronized. Therefore, the target materials inside the barrel could be mixed diffusely and moveably. It is featured with short mixing time, good uniformity, big output, convenient to discharging, etc.
Applications:
Our EYH Series Two Dimensional Mixing Equipment is widely used in pharmaceutical, food, dye, feed, chemical fertilizer and pesticide industries and especially suitable for mixing various solid materials with large volume
Specifications:
Model | Barrel volume (L) | Loading capacity (L) | Max Loading Weight (Kg) | Turn/Swa (r/min) | Total Power (Kw) | Overall Dimension (X*Y*Z*Z1) (mm) | Y1 (mm) | Barrel Dia. (mm) | Total Weigh (Kg) |
Barrel weight (Kg) |
EYH300 | 300 | 180 | 90 | 18/11 | 1.3 | 925*905*1480*1360 | 1460 | 600 | 340 | 60 |
EYH600 | 600 | 360 | 180 | 16/9 | 2.2 | 1145*1105*1750*1600 | 1650 | 750 | 1150 | 140 |
EYH800 | 800 | 480 | 240 | 10/6 | 3 | 1305*1255*1900*1790 | 1990 | 820 | 1600 | 200 |
EYH1000 | 1000 | 600 | 300 | 8/6 | 3 | 1375*2255*1910*1770 | 2950 | 900 | 1700 | 240 |
EYH1500 | 1500 | 900 | 450 | 9/5 | 4.4 | 1505*2445*2200*2100 | 3200 | 1000 | 2000 | 320 |
EYH2000 | 2000 | 1200 | 600 | 8.5/5 | 5.2 | 1635*2445*2255*2120 | 3250 | 1130 | 2600 | 430 |
EYH3000 | 3000 | 1800 | 900 | 7/4.5 | 7.0 | 1905*2755*2600*2420 | 3650 | 1300 | 3500 | 620 |
EYH4000 | 4000 | 2400 | 1200 | 7.8/5 | 9.5 | 2035*3205*2755*2550 | 4200 | 1400 | 4100 | 700 |
EYH6000 | 6000 | 3600 | 1800 | 7/4 | 13 | 2265*3805*3230*2960 | 5040 | 1600 | 6100 | 1100 |
EYH8000 | 8000 | 4800 | 2400 | 6.7/4.5 | 13 | 2555*4305*3680*3390 | 5510 | 1800 | 7900 | 1450 |
EYH10000 | 10000 | 600 | 3000 | 6/4.2 | 18.5 | 2665*4355*3800*3420 | 5670 | 1900 | 10000 | 1700 |
EYH12000 | 12000 | 7200 | 3600 | 6/4 | 18.5 | 2765*4985*4120*3760 | 6500 | 2000 | 13000 | 2000 |
EYH15000 | 15000 | 9000 | 4500 | 6/4 | 22 | 3035*4855*4500*4150 | 6700 | 2300 | 15000 | 2500 |
EYH20000 | 20000 | 12000 | 6000 | 5/3.5 | 30 | 3295*5155*5000*4500 | 7050 | 2500 | 18000 | 3100 |
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
