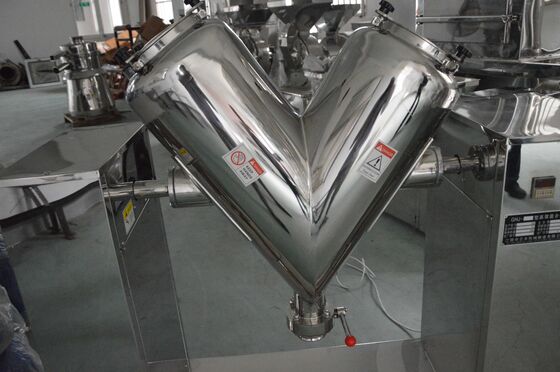

Stainless Steel V Type Powder Mixing Machine For Dry Powder With Vacuum Pump
Quick Detail:
Product capacity (kg/h): 72-2400
Model Name: VH
Material Fed in Time: 3-25min
Mixing Time: 4-12min
Motor Power: 1.1Kw-18.5kw
Rotating Height: 1580mm-5300mm
Total Weight: 280kgs-3850kgs
Description:
The structure of this machine is unique. Its mixing efficiency is high and no dead corner. It is made of stainless steel. Its inner and outer wall is processed through polishing. Its appearance is beauty. Its mixing is uniform. Its scope of application is wide. The forced stirrer can also be equipped in order to meet the requirements of raw materials that contain fine powder, cake and certain moisture as request.
Applications:
This machine is suitable for mixing two or more dry and powder or granule raw materials from pharmaceutical industry, chemical industry, foodstuff industry and so on.
Specifications:
|
Model
|
0.18
|
0.3
|
0.5
|
1.0
|
1.5
|
2.0
|
2.5
|
3.0
|
4.0
|
5.0
|
6.0
|
|
Product capacity (kg/h)
|
72
|
120
|
200
|
400
|
600
|
80
|
1000
|
1200
|
1600
|
2000
|
2400
|
|
Model of vacuum pump
|
W2
|
W2
|
W2
|
W3
|
W3
|
W3
|
W3
|
W4
|
W4
|
W4
|
W4
|
|
Time of raw material fed in (min)
|
3-5
|
3-5
|
4-6
|
6-9
|
6-10
|
8-13
|
8-15
|
8-12
|
10-15
|
15-20
|
18-25
|
|
Mixing time (min)
|
4-8
|
6-10
|
6-10
|
6-10
|
6-10
|
6-10
|
6-10
|
8-12
|
8-12
|
8-12
|
8-12
|
|
Total volume (m3)
|
0.18
|
0.3
|
0.5
|
1.0
|
1.5
|
2.0
|
2.5
|
3.0
|
4.0
|
5.0
|
6.0
|
|
Speed of stirring (rpm)
|
12
|
12
|
12
|
12
|
12
|
12
|
12
|
10
|
10
|
10
|
10
|
|
Power of motor (kw)
|
1.1
|
1.1
|
2.2
|
4
|
4
|
5
|
7.5
|
7.5
|
1
|
15
|
18.5
|
|
Rotating height (mm)
|
1580
|
1760
|
2400
|
2840
|
3010
|
3240
|
3680
|
3700
|
4350
|
4800
|
5300
|
|
Weight (kg)
|
280
|
320
|
550
|
950
|
1020
|
1600
|
2040
|
2300
|
2800
|
3250
|
3850
|
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
