Round Vacuum Pharmaceutical Dryers For Easily Damaged Material Drying

Round Vacuum Pharmaceutical Dryers For Easily Damaged Material Drying

spray drying equipment

microwave vacuum drying equipment

Place of Origin:


Brand Name:

LTPM China



Model Number:


Contact Us

Request A Quote
Product Details
Product Description

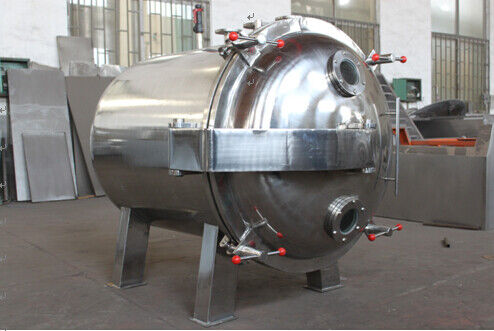

Round Model Vacuum Pharmaceutical Dryers Specially For Easily Damaged Material Drying



Quick Detail:



Layers of baking shelf: 4-8

Interval of baking shelf: 81-122

Material: Stainless steel 304

Number of baking tray: 4-32

Drying capacity(kg): 8-64

Temperature inside chamber(℃): ≤150

Weight of drying chamber(kg):250-2100

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate






1. It can get higher drying speed at lower temperature and the heat energy can be uses fully.

2. It can dry at low temperature or can dry heat sensitive raw materials.

3. It can dry raw materials that contain solvent and the solvent needs to recover.

4. Before drying, it can carry out disinfectant treatment.during the period of drying, any impurity can not enter in it.

5. The dryer belongs to static vacuum one, the shape and volume of raw materials can not be damaged.






It is suitable for drying heat sensitive raw materials which often decompose, polymerize or metamorphose under high temperature. It is widely used in the final of pharmaceutical, chemical, foodstuff and electronic industry.






Main Technical Data
Item Model YZG-600 YZG-1000 YZG-1400
Interior size of chamber(mm) Ø 600*976 Ø 1000*1527 Ø 1400*2054
Exterior size of chamber(mm) 1153*810*1020 1740*1226*1385 2386*1657*1800
Layers of baking shelf 4 6 8
Interval of baking shelf 81 98 102
Size of baking tray(mm) 310*600*45 460*640*45 460*640*45
Number of baking tray 4 12 32
Drying capacity(kg) 8 24 64
Permitted pressure inside the pipe of baking shelf ≤0.784 ≤0.784 ≤0.784
Temperature inside chamber(℃) ≤150 ≤150 ≤150
Vacuum level inside chamber without load -0.09~0.096 -0.09~0.096 -0.09~0.096
Type and powder of vacuum pump without condenser SK-1.5 4w SK-3 5.5w SK-6 11w
Weight of drying chamber(kg) 250 800 1000



Competitive Advantage:



1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

    California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi         (Agent), Dhaka (Agent), Laho
