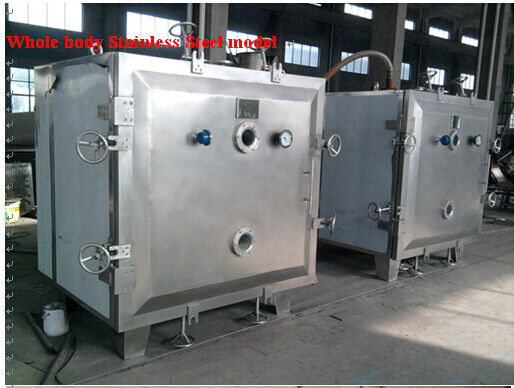

32 Trays Pharmaceutical Dryers Vacuum Drying Machine With Low Temperature
Machine Weight: 2100kg
Water Evaporation Rate (kg/㎡): 7.2
Heating Temperature ℃: 35—150

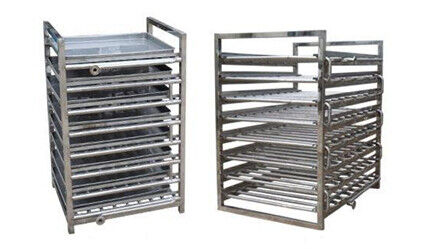

Tray Quantity: 32pcs
Tray Size (mm): 460*640*45mm
Tray Holder Layers: 8
Distance between layers: 122
The machine adopts vacuum pump for sucking the air and moisture from the inner machine, make the raw materials are under vacuum situation for heating and fast drying.
When the temperature is fixed, and increases the vacuum rate of the inner machine, it will help to make the drying more faster.
When the temperature is fixed, and increase the vacuum rate, it will also make the drying faster.
If increase both vacuum rate and temperature degree, then the drying speed will be faster.
The machine can be equipped with condenser for Solvent recovery which contains in raw materials.
This machine is widely used in Chemical, pharmaceutical, food and electronic industry, because of its low temperature drying never destroy raw materials.
|Outter Size (mm)||1924*2063*1513mm|
|Tray Holder Layers||8|
|Distance between layers||122|
|Tray Size (mm)||460*640*45mm|
|Inner pressure (MPa)||＜0.4|
|Heating Temperature ℃||35—150|
|Vacuum Rate (MPa)||≤0.097|
|Water Evaporation Rate (kg/㎡)||7.2|
