Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE, GMP
Model Number:
FZG-48
Contact Us

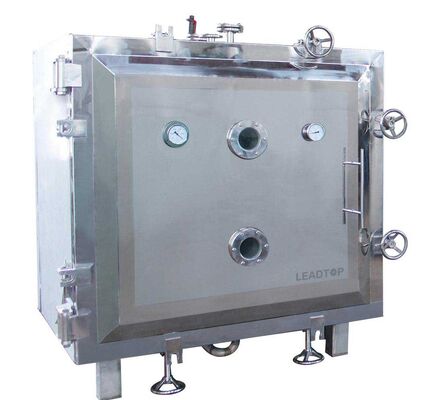

Stainless Steel Pharmaceutical Dryers Rectangular Vacuum Drying Machine 48 Trays
Quick Detail:
Heating Temperature ℃: 35—150

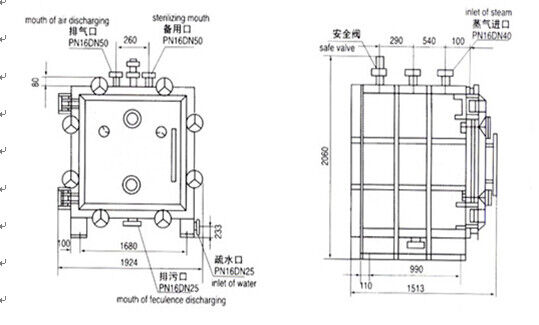

Inner Size(mm): 1500*1800*1220mm
Outter Size (mm): 1924*2500*1513mm

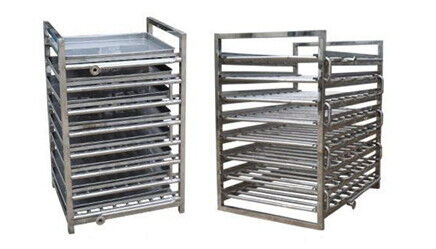

Tray Holder Layers: 12
Tray Size (mm): 460*640*45mm
Tray Quantity: 48pcs
Machine Weight: 3200kg
Description:
1. The machine adopts vacuum pump for sucking the air and moisture from the inner machine, make the raw materials are under vacuum situation for heating and fast drying.
2. When the temperature is fixed, and increases the vacuum rate of the inner machine, it will help to make the drying more faster.
3. When the temperature is fixed, and increase the vacuum rate, it will also make the drying faster.
4. If increase both vacuum rate and temperature degree, then the drying speed will be faster.
5. The machine can be equipped with condenser for Solvent recovery which contains in raw materials.
Applications:
This machine is widely used in Chemical, pharmaceutical, food and electronic industry, because of its low temperature drying never destroy raw materials.
Specifications:
| Name | Model |
| FZG-48 | |
| Inner Size(mm) | 1500*1800*1220mm |
| Outter Size (mm) | 1924*2500*1513mm |
| Tray Holder Layers | 12 |
| Distance between layers | 122 |
| Tray Size (mm) | 460*640*45mm |
| Tray Quantity | 48pcs |
| Inner pressure (MPa) | ＜0.784 |
| Heating Temperature ℃ | 35—150 |
| Vacuum Rate (MPa) | ≤0.097 |
| Water Evaporation Rate (kg/h) |
101kg(under -0.1MPa and 110℃) 60-80kg (under -0.1MPa and 70℃) |
| Vacuum Pump and Power |
SK-3 5.5kw (without condenser) 7.5kw (with condenser) |
| Machine Weight | 3200kg |
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
