Three Phase 50hz Micro Wave Drying And Sterilizing Machine With Self Cooled System

Three Phase 50hz Micro Wave Drying And Sterilizing Machine With Self Cooled System

spray drying equipment

pharmaceutical machinery

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP

Model Number:

HWZ

Contact Us

Request A Quote
Product Details
Product Description

Three Phase 50hz Micro Wave Drying And Sterilizing Machine With Self Cooled System





Quick Detail:





Item Model: HWZ-30

Total Power: 30kw

Material: Stainless steel 304

Supply Voltage: 380±10% Three phase 50hz

Area of spreading materials: 3.4sqm

Sterilization Capability: 10 — 20

Evaporation Speed: 5-25kg/hour

Dehydration Temperature ℃: 30—80℃





Description:





Drying principle:

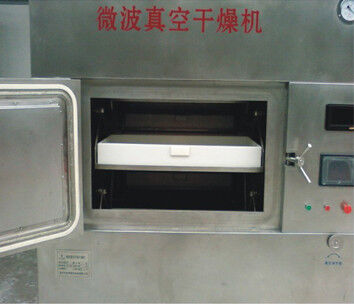

Raw material is placed into Teflon tray with rotation running in the machine, its orientation of polarity will be changed under high speed changing High-Frequency Electromagnetic Fields effecting, so all of the inner molecular will run and touch each other. Then the Micro wave field energy will change into Heating energy to make raw material heated and its temperature rise to reach final drying purpose.

Sterilizing Principle:

Micro Wave sterilizer is taking advantage of its Thermal effect and Non-Thermal effect for sterilization to kill the micro organism.





Applications:





Mainly used for quick drying process and biological sterilizing treatment for all kinds of semi-products of traditional Chinese medicine, western medicine and chemical medicine, health products, also widely used for drying, sterilizing, drying de-enzyme and mould proof for food, chemical, agricultural and sideline products, wood, paper etc.





Specifications:





Item Model HWZ-30
Total Power 30kw
Microwave Frequency 2450
Supply Voltage 380±10% Three phase 50hz
Area of spreading materials 3.4sqm
Sterilization Capability 10 — 20
Evaporation Speed 5-25kg/hour
Dehydration Temperature ℃ 30—80℃
Overall Dimension 1880×2400×2420mm





Competitive Advantage:





1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

   California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi        (Agent), Dhaka (Agent), Laho





Our product:





Three Phase 50hz Micro Wave Drying And Sterilizing Machine With Self Cooled System 0 Three Phase 50hz Micro Wave Drying And Sterilizing Machine With Self Cooled System 1Three Phase 50hz Micro Wave Drying And Sterilizing Machine With Self Cooled System 2
