Hot Air Circulation Drying Oven Dryer Machine For Vegetable Industry Stainless Steel

Brand Name:	LTPM China
Model Number:	CTC Series
MOQ:	1set
Payment Terms:	L/C, T/T
Supply Ability:	25sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, GMP

Drying Quantity Per Time (kg):

25-200

Power Of Blower Fan (kw):

0.45-1.1

Consumed Steam(L/min):

5-40

Drying Cart (pcs):

0-2

Drying Pan(pcs):

24-96

Machine Size (mm):

1550-2300*1000-2200*2044-2433

Upper And Lower Temp. Difference:

±2

Service Temperature:

Electrical Heating 50-350℃

Packaging Details:

Export standard wooden case

Supply Ability:

25sets/month

Highlight:

Air Circulation Drying Oven Dryer Machine

Industry Hot Air Circulation Oven Dryer

Stainless Steel Drying Oven Dryer

Product Description

Ct-C series hot air circulating tray oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system;
The entire system is enclosed to make the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-40% of the present one;The highes heat efficiency can be up to 50%.

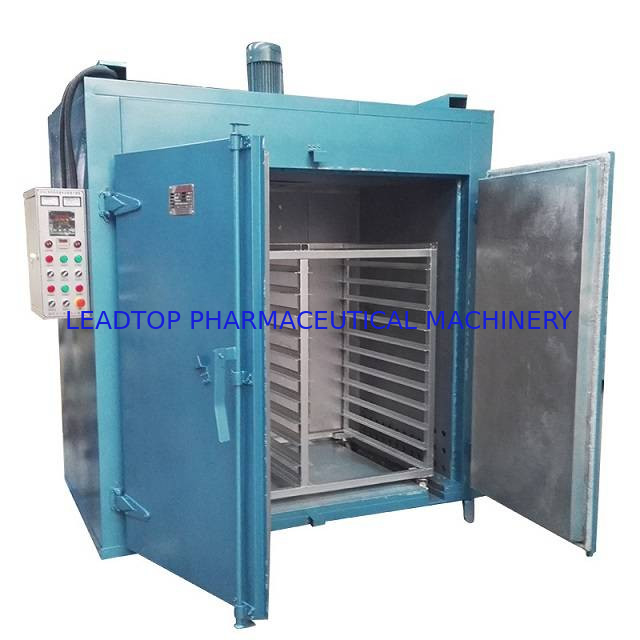

Hot Air Circulation Drying Oven Dryer Machine For Vegetable Industry Stainless Steel 0

FEATURES

1. Most hot air is circulated in the oven;

2. The high efficiency is high and energy-saved;

3. Forced ventilatingfunction, adjustable air distribution plated inside the oven, materials can be dried uniformly;

4. Heating source: electricity, steam, electricity+steam, widely choice;

5. Low noise: < 75dB;

6. Temperature: controlled automatically;

7. Easy maintenance, wide application.

Technical Data

Model & spec.	Drying quantity per time (kg)	Power of blower fan (kw)	Consumed steam(L/min)	Drying cart (pcs)	Drying pan(pcs)	Machine Size (mm)	Upper and lower temp. difference
CTC-0	25	0.45	5	0	24	155010002044	±2
CTC-1	100	1.1	20	2	48	230012002433	±2
CTC-2	200	1.1	40	2	96	230022002433	±2

Applications

The products are mainly applied to tobacco, seafood, timber, flowers, herbs, seeds, and all kinds of dehydrated vegetables.

VEGETABLES AND FRUITS
Mushrooms, Pumpkin, Poria, Onion, Fern, Spinach, Wild Vegetables, Carrots, Celery, Beans, Cowpea, Chili, Tomatoes, Garlic, Ginger, Kiwi, Lychee, Longan , Apples, Persimmons, Roses, and etc.

HERBAL
American Ginseng, Red Ginseng, White Ginseng, Heterophylla, Ginseng, Angelica, Cordyceps Sinensis, Honeysuckle, Chrysanthemum, Schisandra, Wolfberry, Rehmannia, Cistanche, Astragalus, Dendrobium, Konjac, Platycodon Grandiflorum, Yam, and etc.

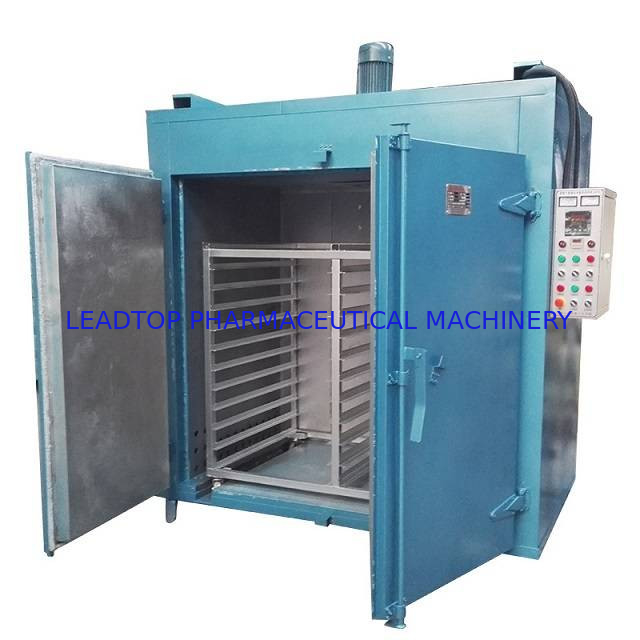

Hot Air Circulation Drying Oven Dryer Machine For Vegetable Industry Stainless Steel 1

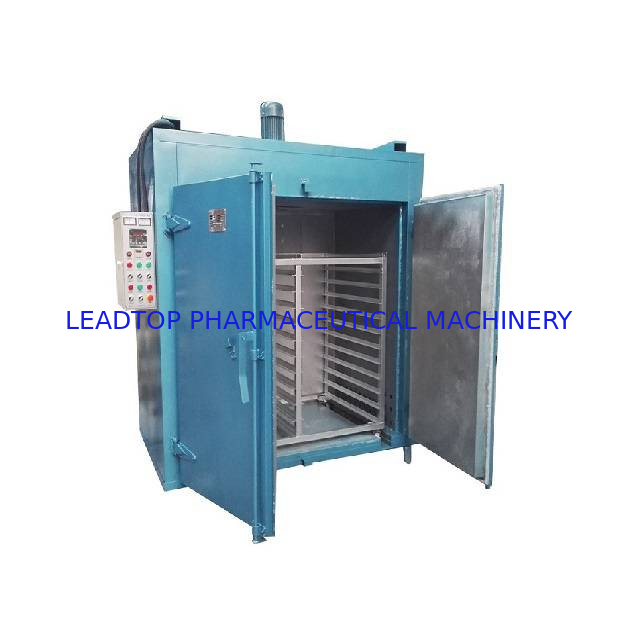

Hot Air Circulation Drying Oven Dryer Machine For Vegetable Industry Stainless Steel 2
