Hot Air Circulating Drying Equipment Chrysanthemum Electrical Heating Dryers

Brand Name:	LTPM China
Model Number:	CTC Series
MOQ:	1set
Payment Terms:	L/C, T/T
Supply Ability:	25sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, GMP

Drying Quantity Per Time (kg):

25-200

Power Of Blower Fan (kw):

0.45-1.1

Consumed Steam(L/min):

5-40

Drying Cart (pcs):

0-2

Drying Pan(pcs):

24-96

Machine Size (mm):

1550-2300*1000-2200*2044-2433

Upper And Lower Temp. Difference:

±2

Service Temperature:

Electrical Heating 50-350℃

Packaging Details:

Export standard wooden case

Supply Ability:

25sets/month

Highlight:

Hot Air Circulating Chrysanthemum Drying Equipment

Chrysanthemum flowers Dryers

Electrical Heating Pharmaceutical Dryers

Product Description

The CT-C Series Hot Air Circulation Drying Oven is a box-like shape which can be easily disassembled and fixed; it includes CT series (centrifugal blower) and CT-C series (axial flow blower). The heat source of the drying oven can be steam and electricity.

This product is equipped with low noise, high temperature proof axial flow blower and automatic temperature control system. The entire circulating system is fully sealed and it increased the thermal efficiency (traditional ovens 3%-7%, current oven 35%-45%), the highest thermal efficiency can reached 70%. The technology of the hot air circulating oven is advanced level in world. It is an energy saving product and it has improved the economic benefits for a lot of Chinese manufacturers. In 1990, the Chinese Medical Management Bureau has issued the industry standard for the drying oven and the standard model number is RXH.

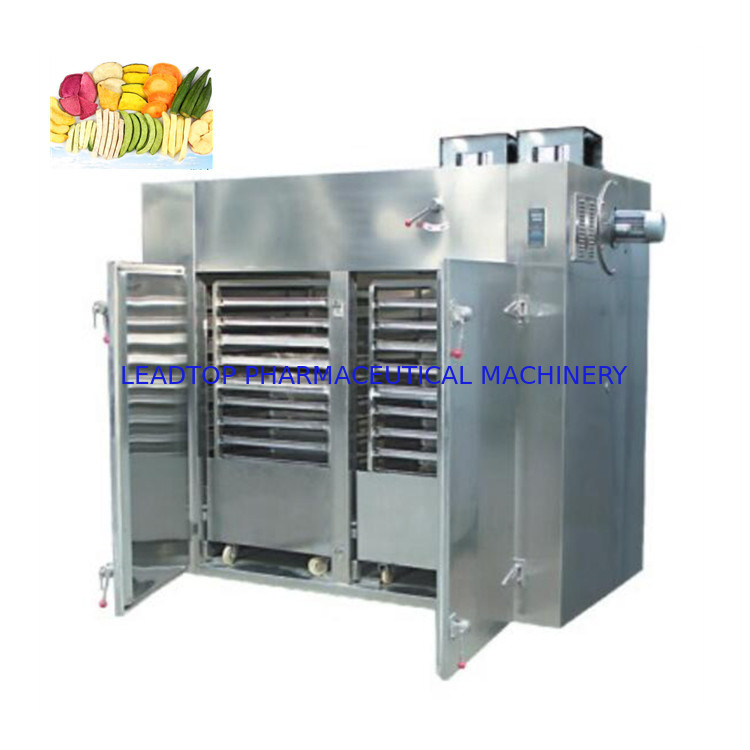

Hot Air Circulating Drying Equipment Chrysanthemum Electrical Heating Dryers 0

FEATURES
1.The hot air is circulated in the oven, high thermal efficiency and energy saving.
2.It utilizes the forced ventilating function with adjustable air distribution plates inside of the oven so the raw material can
be dried uniformly.
3.The heat source can be steam, hot water, electricity, and far infrared.
4.Low noise and stable operation. The temperature can be controlled automatically. Installation and maintenance are simple and easy.
5.It has a wide application. It can be used for drying all kinds of materials.

Material to be dried
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical,food, farming, side-product,aquatic product, light industries, heavy industries and others industries. Such as:raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster , powder, particle, drinking agent, pill,packing bottle,pigment, dyestuf f, de-watering vegetable, dried fruit piece, sausage, plastics,resin, electric component, baking varnish and etc.

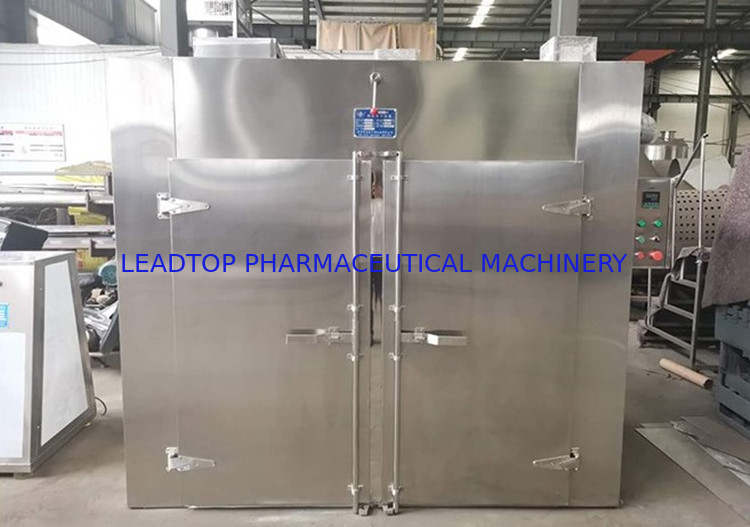

Hot Air Circulating Drying Equipment Chrysanthemum Electrical Heating Dryers 1

Technical Data

Model & spec.	Drying quantity per time (kg)	Power of blower fan (kw)	Consumed steam(L/min)	Drying cart (pcs)	Drying pan(pcs)	Machine Size (mm)	Upper and lower temp. difference
CTC-0	25	0.45	5	0	24	155010002044	±2
CTC-1	100	1.1	20	2	48	230012002433	±2
CTC-2	200	1.1	40	2	96	230022002433	±2

Applications

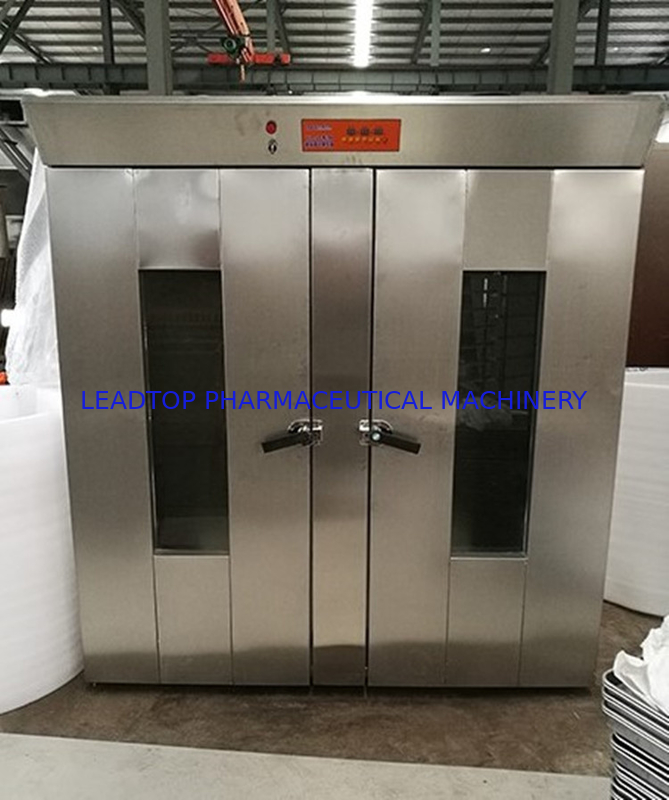

Hot Air Circulating Drying Equipment Chrysanthemum Electrical Heating Dryers 2

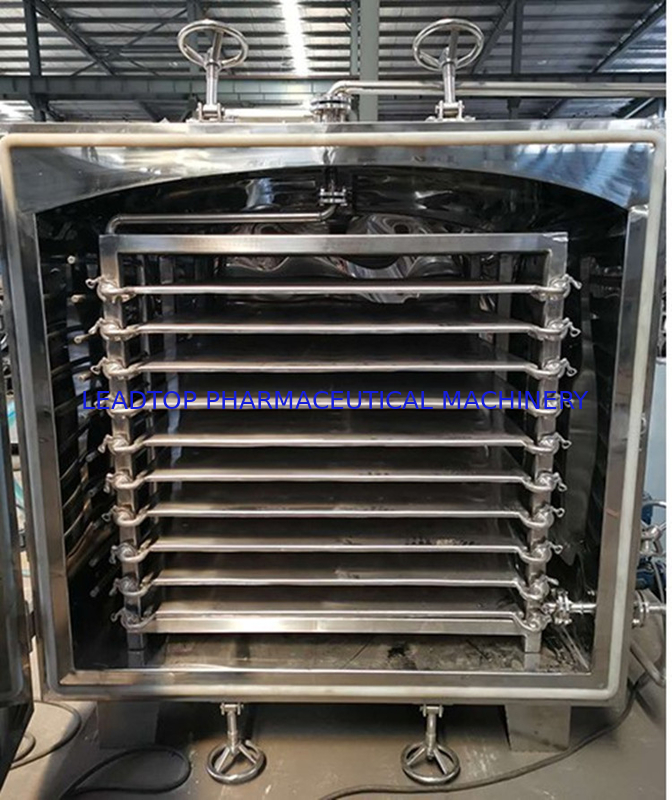

Hot Air Circulating Drying Equipment Chrysanthemum Electrical Heating Dryers 3
