Hot Air Circulation Pharmaceutical Dryers Machine Corn Oven CT - C Series

Hot Air Circulation Pharmaceutical Dryers Machine Corn Oven CT - C Series

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: CTC Series

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

Drying Quantity Per Time (kg): 25-200 Power Of Blower Fan (kw): 0.45-1.1
Consumed Steam(L/min): 5-40 Drying Cart (pcs): 0-2
Drying Pan(pcs): 24-96 Machine Size (mm): 1550-2300*1000-2200*2044-2433
Upper And Lower Temp. Difference: ±2 Service Temperature: Electrical Heating 50-350℃
High Light:

CT - C Corn Oven Dryers

,

air Circulation Pharmaceutical Dryers

,

Hot Air Pharmaceutical Dryers

Product Description

CT-C series hot air circulation oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3~7% of the traditional drying oven to 35~45% of the present one. The highest heat efficiency can be up to 50%. The successful design of CT-C hot air circulation oven makes that the hot air circulation drying oven in our country reach the advanced level in the world. It saves energy and increases the economic benefit. In1990,the medical management bureau of the State issued the industry standard and the uniform type is RXH.

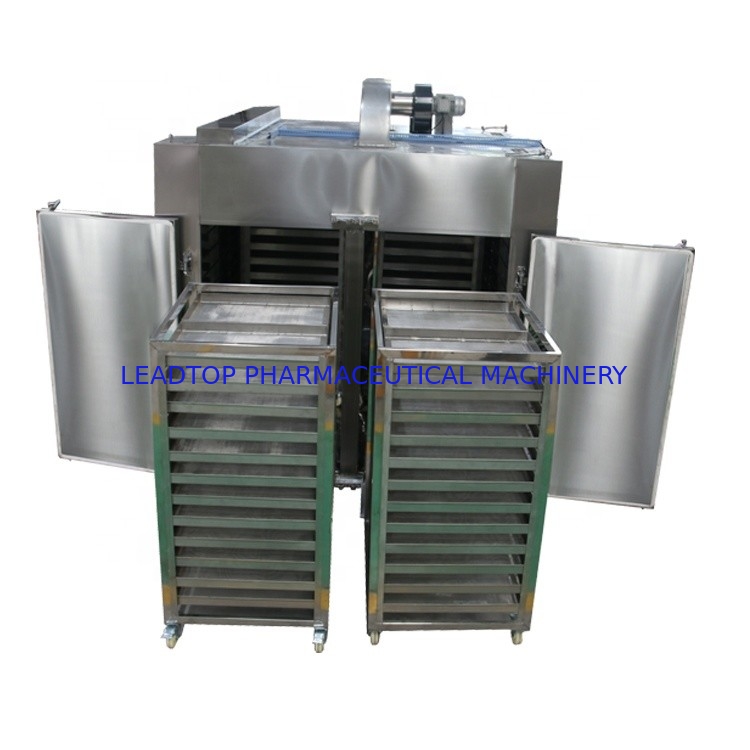

Hot Air Circulation Pharmaceutical Dryers Machine Corn Oven CT - C Series 0



Principles
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

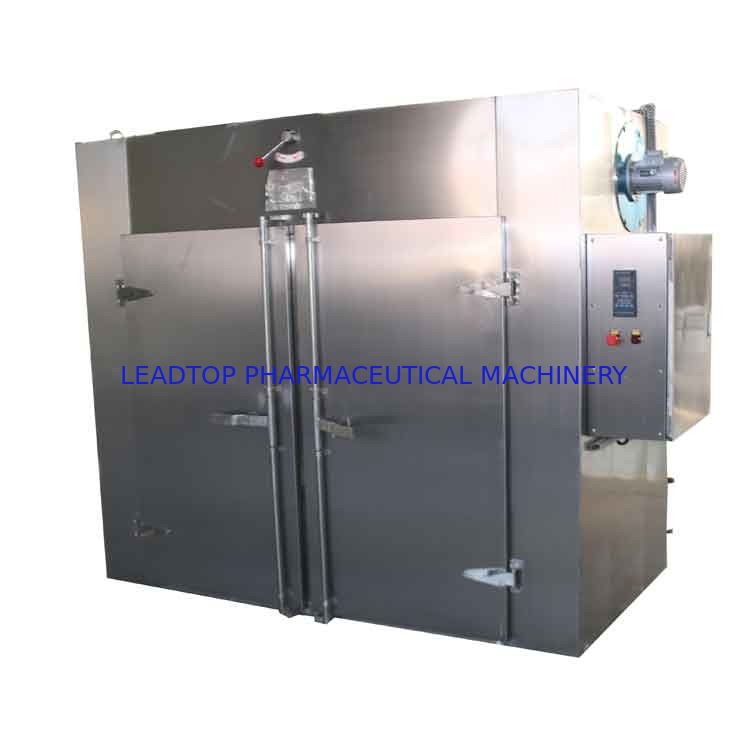

Hot Air Circulation Pharmaceutical Dryers Machine Corn Oven CT - C Series 1



Technical Data

Model & spec. Drying quantity per time (kg) Power of blower fan (kw) Consumed steam(L/min) Drying cart (pcs) Drying pan(pcs) Machine Size (mm) Upper and lower temp. difference
CTC-0 25 0.45 5 0 24 1550*1000*2044 ±2
CTC-1 100 1.1 20 2 48 2300*1200*2433 ±2
CTC-2 200 1.1 40 2 96 2300*2200*2433 ±2



Features
Most hot air is circulated in the oven. The Heat efficiency is high and the energy is saved. By using the forced ventilation function, there are adjustable air distribution plates inside the oven. The materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared. With a wide selection. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and is versatile drying equipment.



Explanation
1. Options of heat source: steam, electricity, or far infrared, or both steam electricity.

2. Drying temperature: steam heating 50-130 °C, Max.140 °C.

3. Electricity and far infrared:50-300 °C .Automatic control system and computer control system on request.

4. Commonly used steam pressure 0.2-0.8Mpa (2-8 bar).

5. For CT-C-I, electric heated, rated power consumption: 15Kw, real consumption: 5-8Kw.

6. The special requirements should be indicated at the time of order.

7. Please consult as for any special requirements.

8. For operation temperature of over 140 °C or less than 60 °C, please indicate when order.

9. The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.

10. Baking plate dimensions: 460*640*45mm



Applications

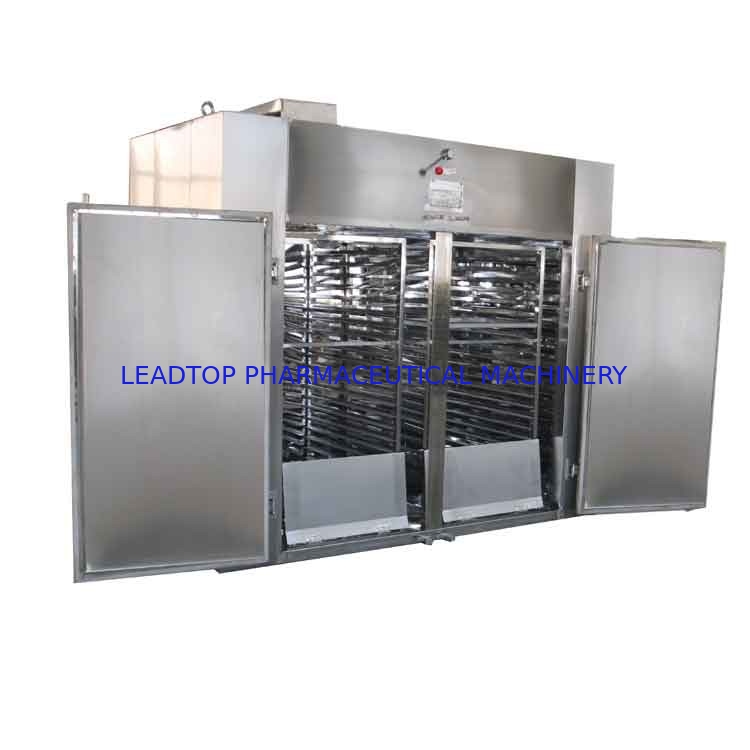

Hot Air Circulation Pharmaceutical Dryers Machine Corn Oven CT - C Series 2
