Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE, GMP
Model Number:
CTC Series
Contact Us
1.The heat source includes steam, heat transfer oil, electric heating tube, far infrared tube, etc., for customers to choose.
2.Temperature range: steam heating 50-100℃, electric heating normal temperature to 100℃ (over 100℃ is non-standard
High temperature oven needs to be customized, far infrared heating 50-350℃.
3.Automatic control system and computer control system are available for users to choose.
4.The usual steam pressure is 0.02-0.8Mpa.
5. Equipped with electric heating, 12kw calculated according to type I, practical 5-8kw per hour.
6. Please contact customer service before placing an order. Special requirements must be stated when ordering.
7.The price of non-standard oven is negotiable.
8.The operating temperature is greater than 100°C or less than 60°C, please specify when ordering.
9.The size of the baking trays of the factory's ovens is uniform, interchangeable, and supports non-standard customization.
10.Baking tray size: 460*640*45 mm, there are many styles to choose from.
Main Features
1) The heating sources are optional, you can use steam or electricity.
2) Hot air circulation drying system, which can dry food faster.
3) Temperature control which can set different hot air temperature according to different food.
Technical Data
| Model & spec. | Drying quantity per time (kg) | Power of blower fan (kw) | Consumed steam(L/min) | Drying cart (pcs) | Drying pan(pcs) | Machine Size (mm) | Upper and lower temp. difference |
| CTC-0 | 25 | 0.45 | 5 | 0 | 24 | 1550*1000*2044 | ±2 |
| CTC-1 | 100 | 1.1 | 20 | 2 | 48 | 2300*1200*2433 | ±2 |
| CTC-2 | 200 | 1.1 | 40 | 2 | 96 | 2300*2200*2433 | ±2 |
1) The inner wall of dryer is fully welded by stainless steel, and outer wall also adopts stainless steel 304.

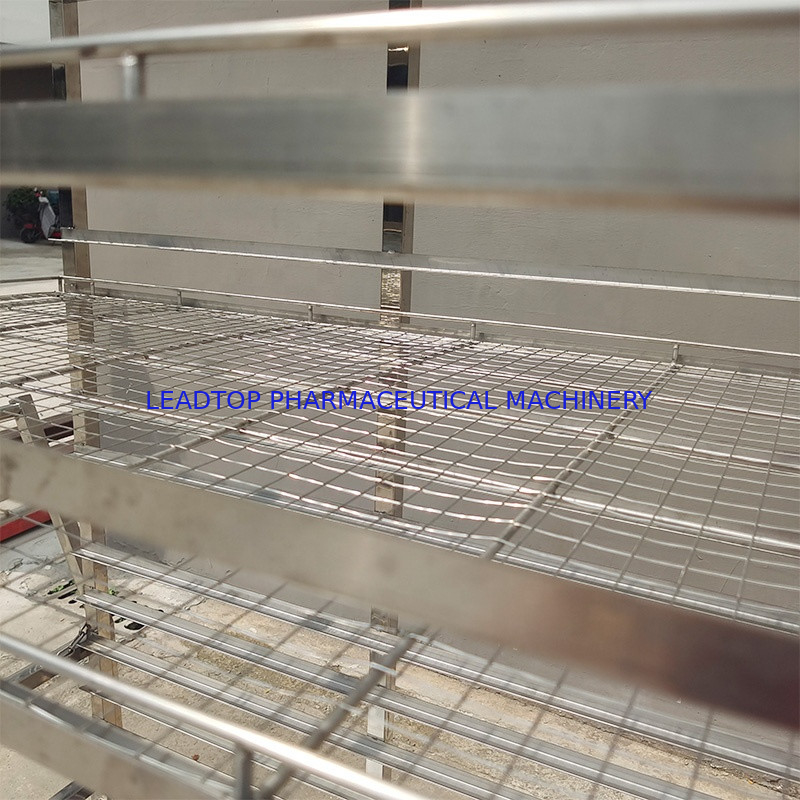

2) The tray is made of stainless steel 304, which is good for drying food.
Machine Application
The hot air circulating drying oven is widely applied for the heating and dehumidifying of raw materials and products in the lines of pharmacy, chemical, foodstuff industry etc.
