Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE, GMP
Model Number:
CTC Series
Contact Us

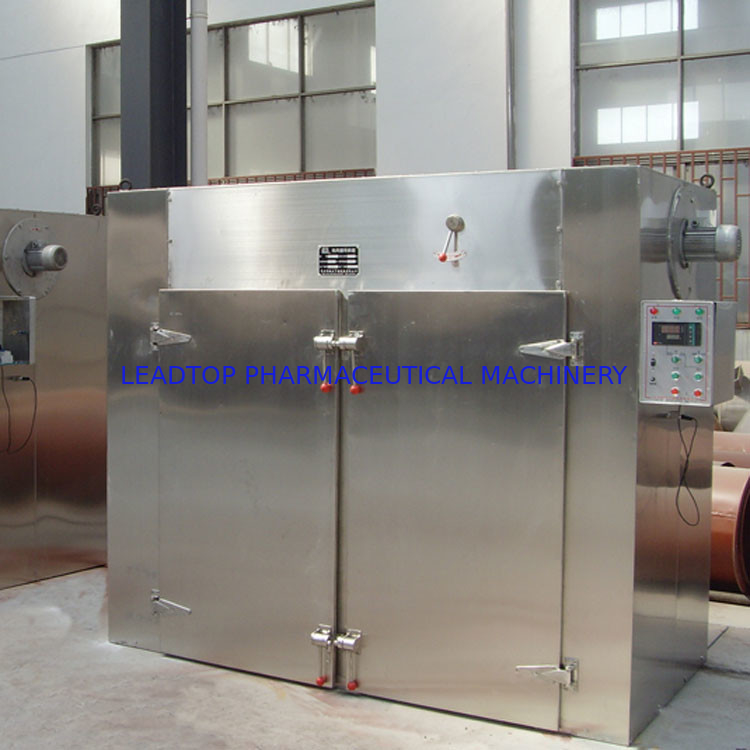

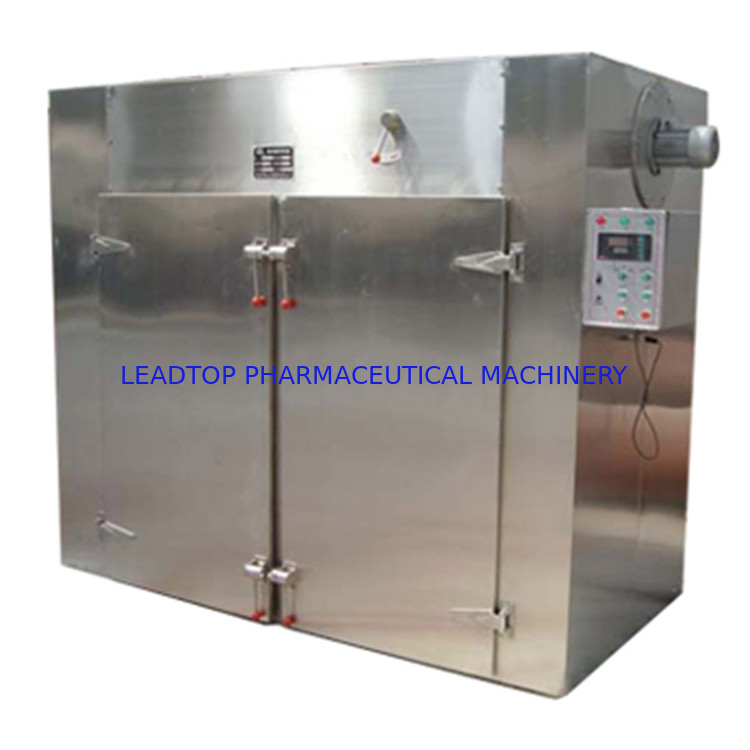

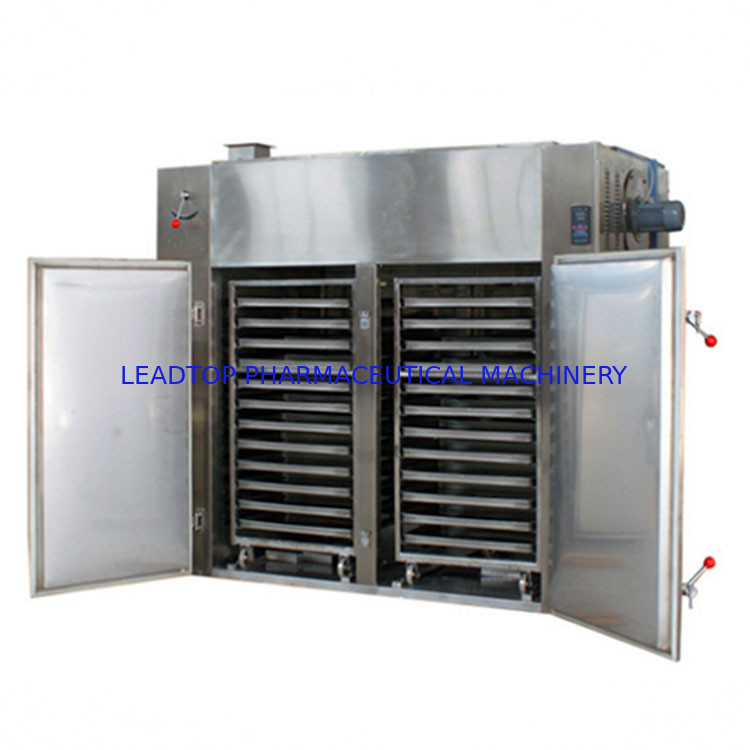

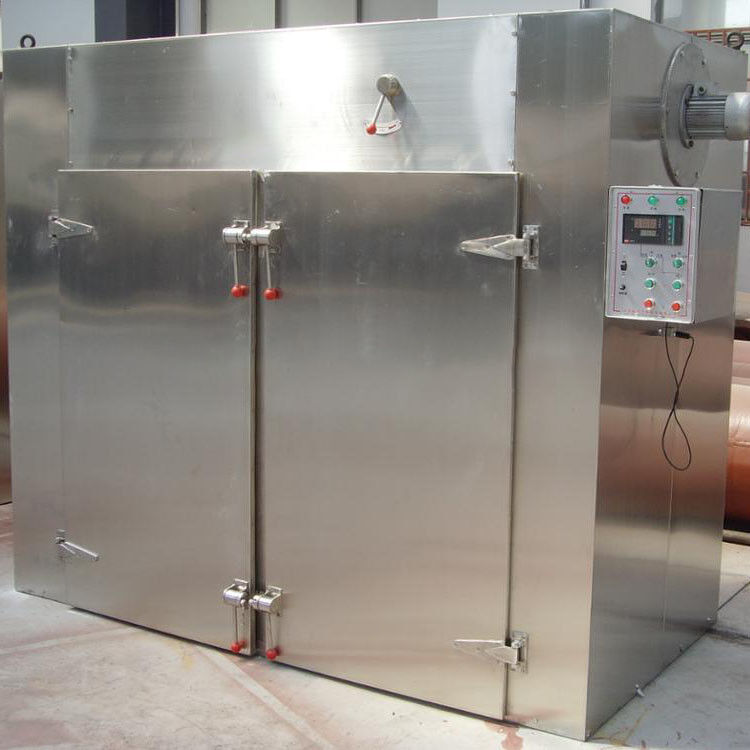

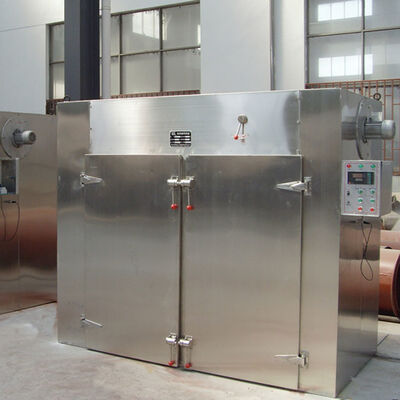

This mahcine is widely applied for the heating and dehumidifying of raw materials and products in the lines of pharmacy,chemical,foodstuff,light industry,heavy industry etc.
Specialty:
Great part of hot wind is circulated in the oven with high thermal efficiency,less energy consumption.The oven is equipped by the adjustable air-distributing plates to utilize the forced ventilating to dry the target materials evenly.The whole machine runs in stable condition,low noise,self-control temperature,easy installing and maintaining,and wide application.
Feature:
Heating source includes three modes steam, electricity and electrical steam.
Service temperature: steam heating 50-150℃; max 150℃; electrical heating 50-350℃.
The temperature is automatically controlled, and is recorded by the recorder;
Inner wall of oven adopts full welding and arc transition, with no dead angle.
The whole machine has favorable sealing performance. The unique guide rail sealing device guarantees fine sealing performance for the whole machine.
The air inlet port is equipped with high efficiency air filter; dehumidification port is equipped with medium efficiency air filter.
The two doors of double-door drying oven are mechanical interlocked.
Components and parts in the oven can be quickly dismantled and installed, which is convenient for cleaning.
The control system has text display and touch screen for selection.
The whole machine is in accordance with GMP standard.
Technical Data
| Model & spec. | Drying quantity per time (kg) | Power of blower fan (kw) | Consumed steam(L/min) | Drying cart (pcs) | Drying pan(pcs) | Machine Size (mm) | Upper and lower temp. difference |
| CTC-0 | 25 | 0.45 | 5 | 0 | 24 | 1550*1000*2044 | ±2 |
| CTC-1 | 100 | 1.1 | 20 | 2 | 48 | 2300*1200*2433 | ±2 |
| CTC-2 | 200 | 1.1 | 40 | 2 | 96 | 2300*2200*2433 | ±2 |
Packaging Details:
Export standard package. Fumigation wooden box or container.
For small machine, we pack it in wooden box.
For super big machine, we will separate the machine into several parts and pack it with film. Then, fix them in container with steel to avoid any shaking or moving during the shipping.
