Herb Extract Pharmaceutical Spray Dryer SS304 Centrifugal Atomizing 100kg/H

Herb Extract Pharmaceutical Spray Dryer SS304 Centrifugal Atomizing 100kg/H

Centrifugal Atomizing Pharmaceutical Spray Dryer

SS304 Pharmaceutical Spray Dryer

100kg/H Pharmaceutical Spray Dryer

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP

Model Number:

LPG Series

Contact Us

Request A Quote
Product Details
Material Consist:
Stainless Steel 304 (316 Is Available)
Inlet Temperature:
140-350℃(Auto Controled)
Outlet Temperature:
80-90℃
Application:
Food,chemical,pharmaceutical Industry
Dust Collect:
Included
Power Supply:
380V 50Hz
Product Description

The machine adopts full close structure with primary middle and high effect air filter to fit one hundred thousand grade requirement, the tower body is provide cooling air jacket to make wall temperature less than 80 degree, when the material stops on wall will not to be preheated and softened, it increases the powder collection rate (95%) and will not appear mixing and sticking wall phenomenon.







Principle

High Speed centrifugal atomizing for the extract of traditional Chinese Medicine is an application of centrifugal atomizing technique. It also uses high-speed atomizer to make liquid material into foggy droplet to contact with hot air fully to finish instant drying and get final powder products.

The LPG Chinese Herb Extract Spray Dryer is specially designed to solved the problems which previous spray dryer meets during drying herb extract and plant extract products as follows:

1) Raw material sticks to wall and powder collection rate is low.

2) Raw material stays on wall for long time, resulting in coking and deterioration phenomenon.

3) It is difficult to clean and can not meet GMP requirement.

4) Low in output: 150 type dryer can only process 50-60kgs/h of raw material liquid.

In view of above situation, according to property and process requirement of traditional Chinese Herb Extract, our factory has researched and designed the special spray dryer the extract liquid and got patent. It solves the traditional difficult problems in drying the extract and product colour after drying is good. The dried raw material does not degenerate too. It raises the economic benefit for user greatly. There are special features as below compared to ordinary type spray dryer.

1) Adopt three grade air filter, the inlet air reaches one hundred thousand grade

2) Adopt wall cooling device, the temperature of inner wall will be less than 80 degree, even if materials stay on inner wall surface, it will not be burnt and softened.

3) Its whole volume is 3.5 times of standard high speed spray dryers.

4) Adopt quick-open washing device, it can meet requirement for varieties production, the CIP auto cleaning device can also equip if needed.

5) Adopt wet duster and no powder dust leak out. It is in conformity with the requirements of environment protection.

6) Air sweeping device is optional, the clean effect is satisfied for some product.

7) Adopt PLC control and touch screen system to display system processing.

8) Dehumidifier and centralized collect system can be used to avoid re-wetting and softening.

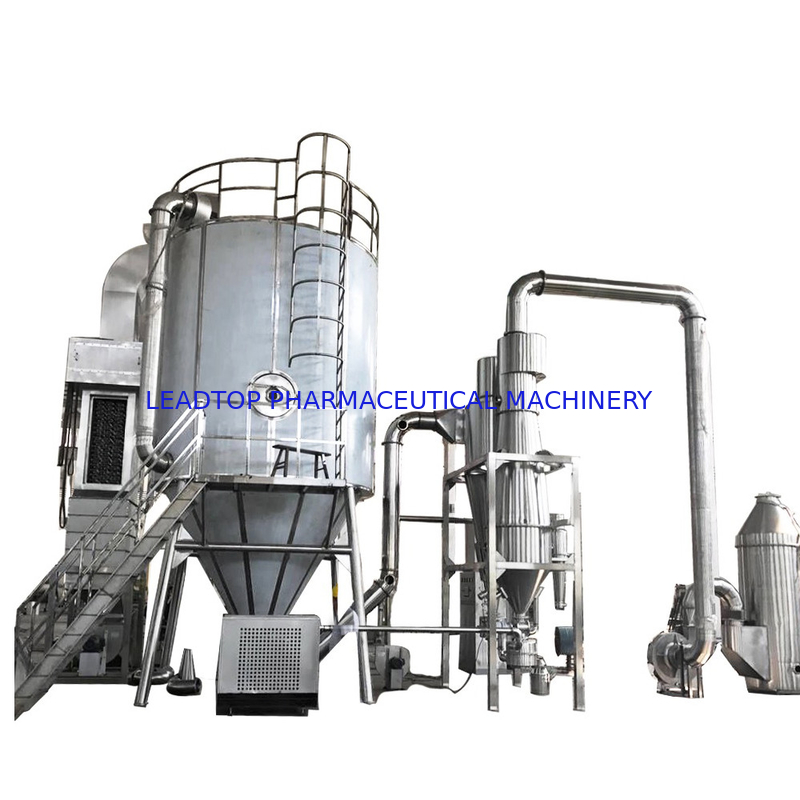

Herb Extract Pharmaceutical Spray Dryer SS304 Centrifugal Atomizing 100kg/H 0

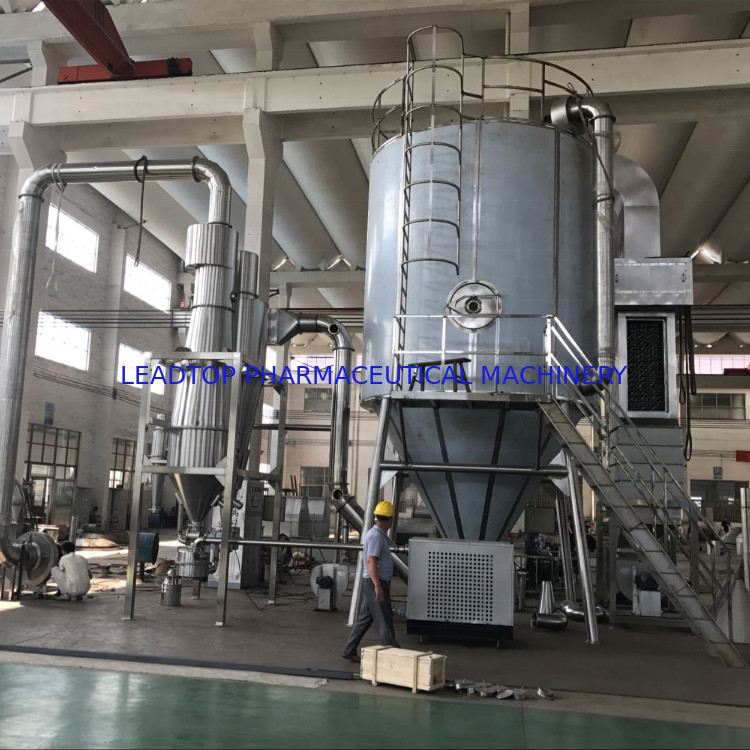

Herb Extract Pharmaceutical Spray Dryer SS304 Centrifugal Atomizing 100kg/H 1

Technical Data



Model

5

25

50

100

150

200-2000

Inlet temperature

350°C

Outlet temperature

80-90°C

Max. evaporation(kg/h)

5

25

50

100

150

200-2000

Centrifugal spraying nozzle transmission mode

compressed air transmission

mechanical transmission

Rotation speed (r.p.m)

25000

22000

21500

18000

18000

15000

Spray disc diameter

50mm

100mm

120mm

140mm

150mm

180-340mm

thermal source

electricity

electricity

electricity + steam, fuel, oil, fuelgas

solved by user

Max. electric heating power (kw)

8

31.5

60

81

99



Overall dimension

1.8*0.93*2.2

3*2.7*4.26

3.7*3.2*5.1

4.6*4.2*6

5.5*4.5*7

optional

Powder recollection (%)

95

95

95

95

95

95



Features

1) The tower body is equipped with cool air jacket to reduce inside tower temperature and eliminate product preheating and soften phenomenon.

2) The atomizer on top of tower is equipped with cooling device to reduce atomizer temperature, at the same effectively eliminate material return to the top in eddy current and avoid preheat coking phenomenon.

3) Tower body and pipeline is equipped with manual quick-open cleaning hole and drainage hole. CIP automatic cleaning device can also equipped if needed.

4) A automatic control constant temperature feeding tank can be equipped.

5) Manual high pressure washing tools can be offered as accessories together with spray dryer.

6) All product contact parts are made with Stainless Steel, (or whole parts with stainless steel)

7) Product collect way adopts two grade cyclones and water film duster.

8) Air inlet temperature is automatic and continuous control which is interlocked with feeding.

9) An air sweeping device can be optional for some products.

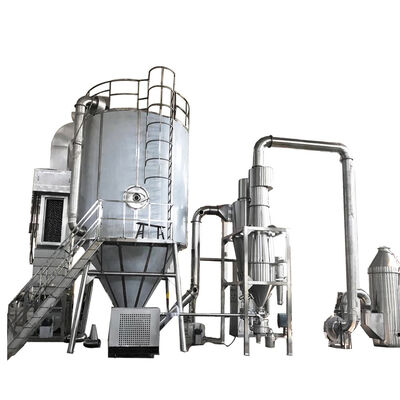

Herb Extract Pharmaceutical Spray Dryer SS304 Centrifugal Atomizing 100kg/H 2
