Hot Sale Lab Use Pharmaceutical Plant Sublimator Powder Small Freeze Dryer Price
Lyophilization or freeze drying is a process in which water is frozen, followed by its removal from the sample, initially by sublimation (primary drying) and then by desorption (secondary drying). Freezedrying is a process of drying in which water is
sublimed from the product after it is frozen. It is a drying process applicable to manufacture of certain pharmaceuticals and biologicals that are thermolabile or otherwise unstable in aqueous solutions for prolonged storage periods, but that are stable in the dry state.
Technical Parameters
| Model | LTDG-10S | LTDG-10T | LTDG-10P | LTDG-10PT |
| Type | Standard chamber |
Stoppering chamber |
Standard chamber with 8 port manifold |
Standard stoppering |
| chamber with 8 port manifold |
||||
| Final condenser temp (℃) | -55 | |||
| Vacuum Degree (Pa) | <10 | |||
| Condenser volume (L) | 9 | |||
| Freeze drying area (m2) | 0.12 | 0.09 | 0.12 | 0.09 |
| Ice condenser capacity (Kg/24h) | 3 | |||
| Qty of shelf | 4 | 3 | 4 | 3 |
| Material loading capacity/shelf (ml) | 300 | 300 | 300 | 300 |
| Material loading capacity (ml) | 1200 | 900 | 1200 | 900 |
| Freeze drying time (h) | 24 | 24 | 24 | 24 |
| Manifold | / | / | 8 pieces | 8 pieces |
| USB Interface | Y | Y | Y | Y |
| Drying Chamber(standard) | Transparent acrylic | |||

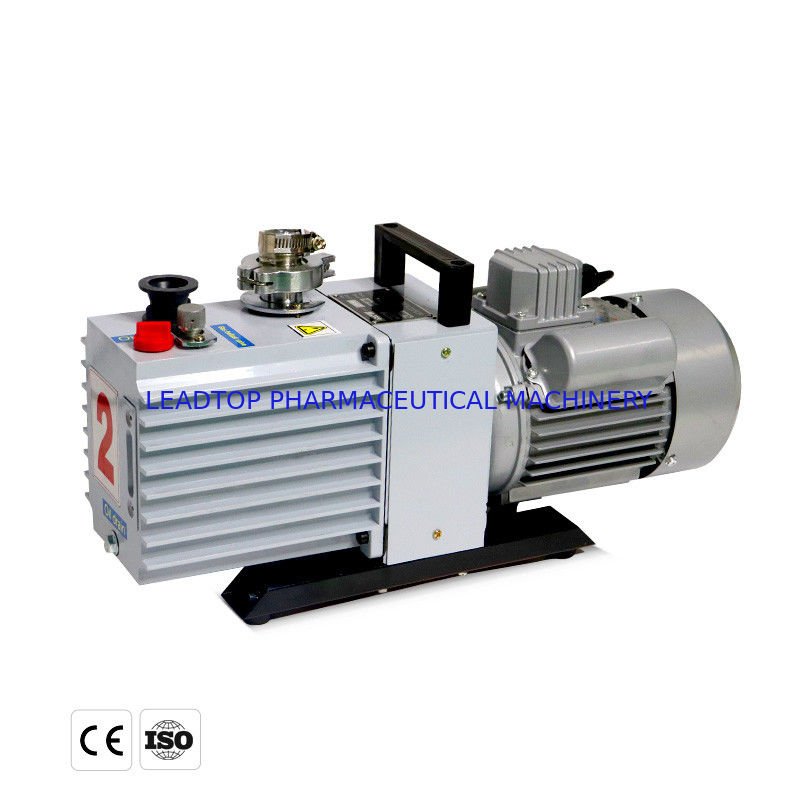

| Vacuum Pump | Speed: 2L/S | |||

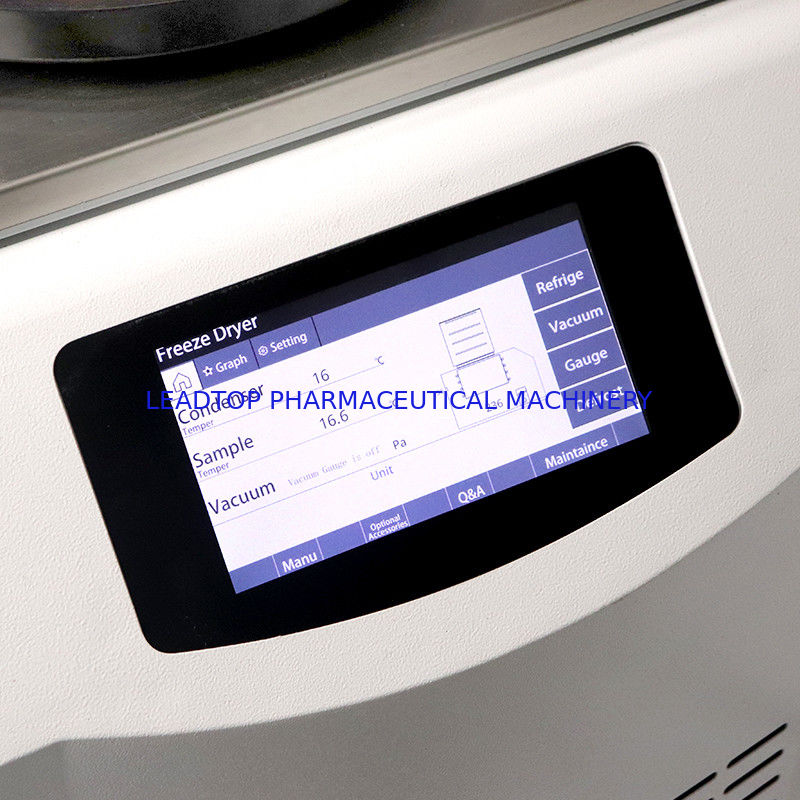

| Control System | Microprocessor, touch screen | |||
| Power supply (V/Hz) | 220V/50Hz,60Hz | |||

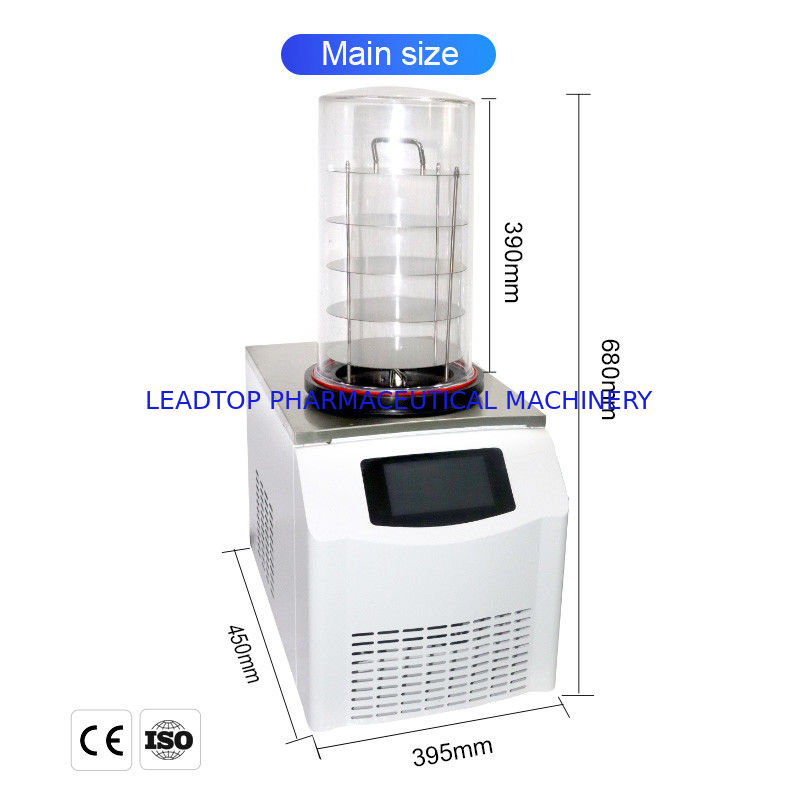

| Exterior dimension (WxDxH mm) | 582*541*374/684 | |||
| Penicillin bottle Φ22 | 260 | 195 | ||
| Penicillin bottle Φ16 | 480 | 360 | ||
| Penicillin bottle Φ12 | 920 | 690 | ||
