Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE
Model Number:
LTDG-Series
Contact Us

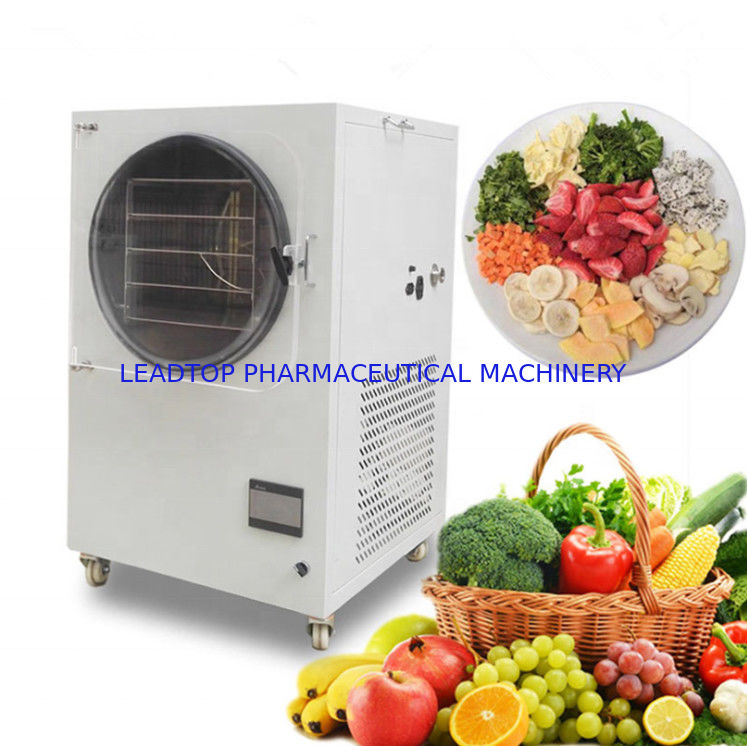

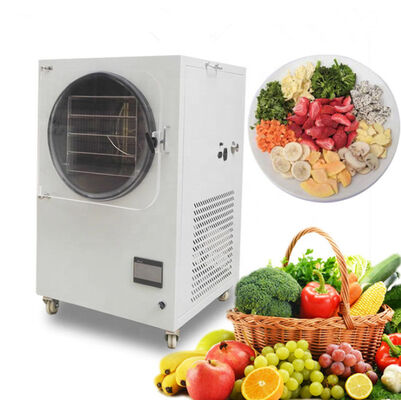

Industrial Food Freeze Dryer Machine From China Manufacturer Home Small Mini Vacuum Freeze Dryers Lyophilizer For Sale
Vacuum Freeze Drying Machine is widely used in food, fruit, vegetable, fish, sea cucumer,shrimp, meat drying indstury, chemical and biological industry etc.
The dried product dried by freeze dryer is with good taste, beautiful color and good shape.
Technical Parameters
| Model | LTDG-20S | LTDG-30T | LTDG-50S | LTDG-50T |
| Type | Standard | Top-press | Standard | Top-press |
| Shelf temp (℃) | -50 to 70 | |||
| Final condenser temp (℃) | -80 | |||
| Vacuum Degree (Pa) | <10 | |||
| Freeze drying area (m2) | 0.24 | 0.3 | 0.5 | |
| Condenser capacity (Kg/24h) | 6.5 | 10 | ||
| Shelf specification (L*W*H mm) | 300*400*20 | 300*450*20 | ||
| Qty of shelf | 2+1 | 3+1 | 4+1 | |
| Distance between shelves(mm) | 145 | 90 | ||
| Liquid material loading capacity (L) | 4.5 | 7 | 10 | |
| Temperature uniformity (℃) | ±1 | |||
| Cooling mode | Air cooling | |||
| Electric heater defrost | Y | |||
| Cap seal method | N | Hydraulic pressure | N | Hydraulic pressure |
| Penicillin bottle Φ22 | 468 | 702 | 1040 | |
| Penicillin bottle Φ16 | 864 | 1296 | 1944 | |
| Penicillin bottle Φ12 | 1584 | 2376 | 3456 | |
| Power supply (V/Hz) | 220V/50Hz,60Hz | 220V/50Hz,60Hz | 220V/50Hz,60Hz, | |
| 380V/50Hz,60Hz | ||||
| Exterior dimension (WxDxH mm) | 1200*750*1250/1600 | 1200*850*1500/1850 | ||
1. compact conformation, convenient maintain, low price, full automatic control and convenient operation;
2. multi-function, can be used in many materials, like food, fruit, vegetable, fish, sea cucumber, etc;
3. excellect design, low energy cost, only need to work by using electricity;
4. quickly drying with good result;
