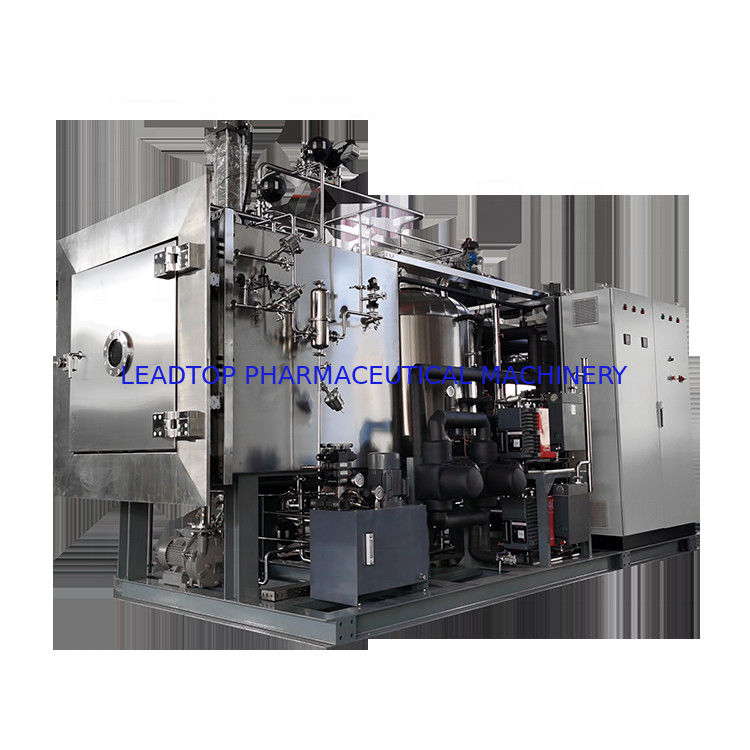

Pilot Scale Fruit Vegetable Vacuum Freeze Dryer 100L 15kg/Batch

Pilot Scale Fruit Vegetable Vacuum Freeze Dryer 100L 15kg/Batch

Brand Name:	LTPM China
Model Number:	LTDG-Series
MOQ:	1 Set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	15 Set/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Weight:

1200kgs

Item Name:

Freeze Dryer

Dry Area:

1.08 Square Meter

Tray Area:

1.02 Square Meter

The Total Volume Of Dehydration:

15kg/batch

Shelf Spacing:

70 Mm

Heating Mode:

Conduction Mode

Control System:

PLC Control

Packaging Details:

Export Standard Wooden Case

Supply Ability:

15 Set/Month

Highlight:

PLC Pilot Scale Vacuum Freeze Dryer

100L Vacuum Freeze Dryer

15kg/Batch Vacuum Freeze Dryer

Product Description

Pilot Scale Fruit Vegetable Vacuum Freeze Dryer 100L 15kg/Batch

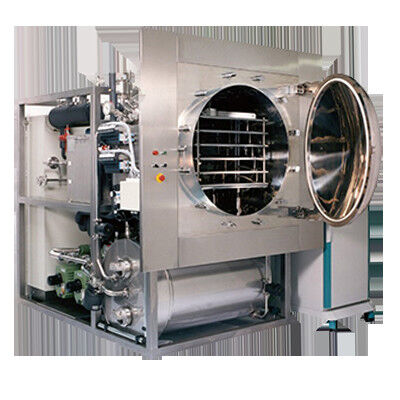

Pilot freeze dryer

The Pilot model freeze dryer with drying capacity up to 150L liters,Cover most demand for vial or other material commercial production,comliance with regulation. More optional systems available,Main feature are:
◆ Intergrated design,compact and easy install
◆ Automatic shelf stoppering under vacuum
◆ Automatic control for freeze drying,SIP and CIP

◆ Scada control system comliance with regulation and save up to thousand recipes
◆ Shelf flatness less than1.0mm,temperature uniformity less than 1C.
◆ Environment friendly refrigerant
◆ Flexible arrangement design,suit user's plant layout,thus space saved

Technical Parameters

Power	167Kw, 380V±10%,50HZ,3Phase,5Wire
Vacuum function	19.8kw
Refrigeration function	92kw
Heating function	55.5kw
Compressed air	≥40L/min(P=0.5~0.8Mpa)
Cooling water Quantity	≥50m3/h(T≤30℃,P=0.2-0.3Mpa)
Defrost water Quantity	≥4000kg(T≥30℃,P=0.1-0.2Mpa)
Whole volume(L×W×H)	Dry chamber and Condenser: D=φ2100mmL=6650mm Freeze system vacuum system control system: L=2600mm W=2200mm H=2000mm Final dimension based on design
Structure	Split
Total weight	15T(Approx.)

Application

lyophilized injections

vaccine,hormone.etc

Pilot Scale Fruit Vegetable Vacuum Freeze Dryer 100L 15kg/Batch 0

Pilot Scale Fruit Vegetable Vacuum Freeze Dryer 100L 15kg/Batch 1

Biological products.

Blood plasma,diagnosis,biological scarfford

Pilot Scale Fruit Vegetable Vacuum Freeze Dryer 100L 15kg/Batch 2

Freeze Dried Nutrition,Food,Fruits.etc.

Fruits, Bacteria,Food suppyments

Pilot Scale Fruit Vegetable Vacuum Freeze Dryer 100L 15kg/Batch 3

Optional Choice

* Sub door: Build on front of chamber.Operated automatically.
* CIP (cleaning in place) and SIP (Sterilization in place) system.
* Computer based SCADA system, all data can be recorded by table or curve type, easily print out for preservation.
* Adjustable shelf space mechanism.
* Vial stoppering system.

Any other doubts about our machine, please feel easy to contact with us.
