Pharmaceutical Foodstuff Fluid Bed Granulator Dryer 50Hz 220L

Pharmaceutical Foodstuff Fluid Bed Granulator Dryer 50Hz 220L

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: FL

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

Max Charge: 500 Max Differential Pressure: 28MPa
Capacity Of Electric Motor: 55kw Voltage: 415V
Frequency: 50Hz Power-phase: 3
High Light:

Foodstuff Fluid Bed Granulator Dryer

,

Fluid Bed Granulator Dryer 50Hz

,

220L Boiling Mixer Granulator Dryer

Product Description



FL Series Pharmaceutical Chemical Or Food Industrial Drying Machines Fluid Bed Dryer





Boiling Mixer Granulator Dryer is used to mix powder,dry and granulate it and coat in the industry of pharmaceutical,foodstuff and chemical.





Feature:
It produces particles with powders so as to improve the fluidity and reduce flying dusts.
It produces particles with powders so as to improve the solubility of the granules.
Mixing Granulating Drying 3 processes complete in one machine.
It adopts anti-static filter,safe operation is guaranteed.
There are pressure releasing holes to guarantee operating security.
The machine is designed according to GMP standard and made of stainless steel.The advantages of it are no blind spot,loading and discharging material easily and quickly,easy cleaning.



Specifications

Model 60
Volume (L) 220
Amount to be treated (kg/per time) 90
Power of fan(kw) 11
Consume of steam 0.4MPa(kg/h) 141
Consume of compressed air (m3/min) 1.0
Noise,dB(A) (fan is installed separately) ≤75





Operating Principle:
Powder flows in a cycle shape in the material container(fluidized bed).It is pre-heated by clean air and adhesive solution spays into the powder with the clean air together.Powder particles coalesce into granules and get dry.It has the feature of micro holes on the ball-shaped porous particles.

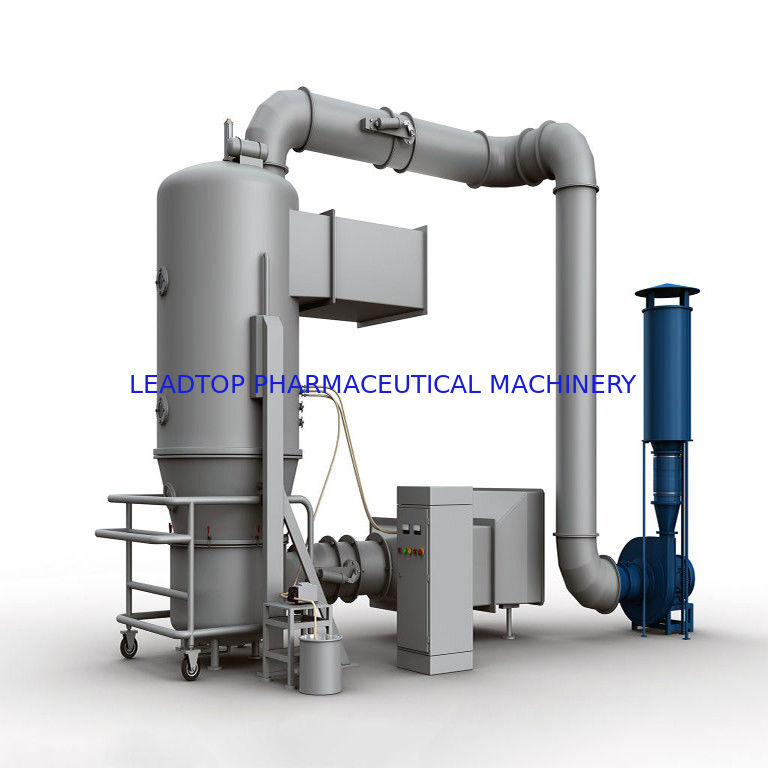

Pharmaceutical Foodstuff Fluid Bed Granulator Dryer 50Hz 220L 0

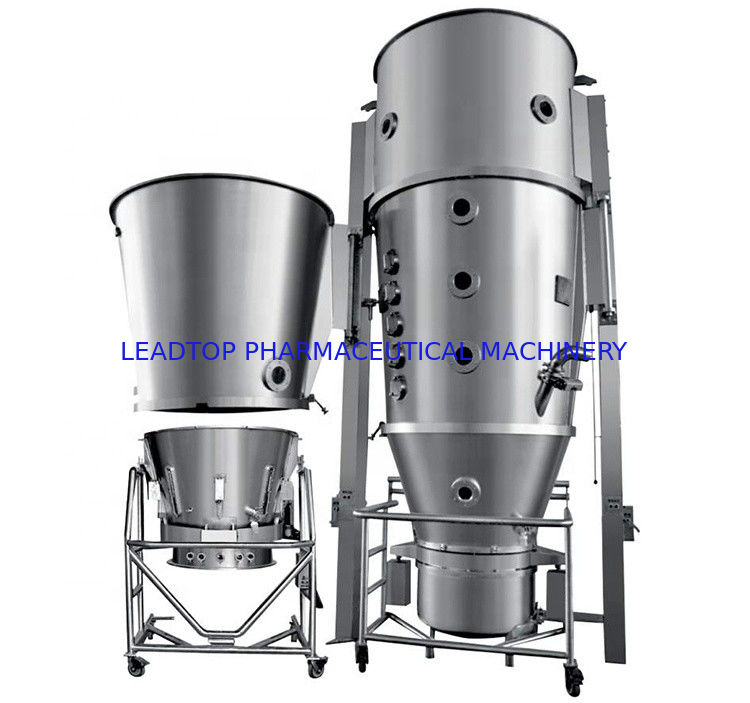

Pharmaceutical Foodstuff Fluid Bed Granulator Dryer 50Hz 220L 1


Main Application:
Granulating:Tablet,instant soluble medicine,granules for capsule.
Coating:Granules,pill’s protecting layer,slow release layer,thin-film,enteric coating.

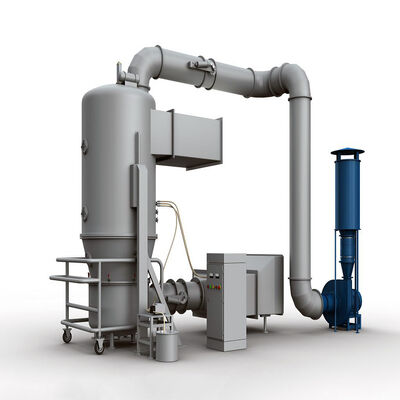

Pharmaceutical Foodstuff Fluid Bed Granulator Dryer 50Hz 220L 2

Pharmaceutical Foodstuff Fluid Bed Granulator Dryer 50Hz 220L 3
