Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE
Model Number: Vb-Top Series

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: In 30 days after receiving the deposit
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Outline Dimension Diameter * L * H Mm: Φ3000*18000*4600 10layer Heating / Cooling Area M^3: 200/14
Evaporation Capacity Kg / H: 190-210 Power KW: 55
Vacuum Degree Pa: 1600-5000  Heating / Cooling Temp ℃: 15-30 (adjustable)
High Light:

spray drying equipment


pharmaceutical machinery

Product Description


VB-Top-Series Vacuum Belt Dryer

Detailed Product Description:
      Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device. Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated. Belts move on the heating plates evenly. Steam, hot water, hot oil can be used as heating media. With the moving of the belts, the product goes through from the beginning evaporating, drying, cooling to discharging in the end. The temperature decreases through this process, and can be adjusted for different products. Special vacuum crusher is equipped at the discharge end to produce different size end product. The dry powder or granule product can be automatically packed or continue with subsequent process.
Equipment Advantage:
1. With functions of automatic batching, automatic feed, the feed rate is adjustable, the final concentration ointment density can reach to 1.3 and solid-liquid mixtures.

2. With vacuum degree on-line automatic adjustment function, dynamic vacuum degree can be arbitrarily set in the range 1000 ~ 5000 pa.

3. Have function of Online automatically adjust the heating temperature, the heating temperature can be set in the range of 40 ~ 135 ℃.

4. With continuous feeding and continuous discharge, Online crushing and grinding function, crushing level count up to 100 mesh.

5. Conveyor belt automatic online correction function, speed adjustable, drying time is up to 72 hours continuously.

6. The whole drying process realizes the pipe-lining and completely isolated from the external environment, to avoid heat pollution.

7. The whole drying process realizes automation control, reduce the labor costs, all process parameters have reversible search.

8. Use hot water closed-circuit circulation heating technology, greatly reduce the energy consumption, is only 1/5compare with the spray drier.

9. Equipped with a full set of online automatic cleaning system, can cleaning and drying of equipment fast and test the cleaning effect.



     Vacuum belt dryer (VBD) for liquid&paste is mainly used in drying many kinds of liquid or paste raw material, such as traditional & western medicines, food, biological products, chemical material, health foods, food additive etc, especially suitable for drying material with high-viscosity, easy agglomeration, or thermoplastic, thermal sensitivity, or material that can not be dried by traditional dryer.

For above materials, VBD is the best choice:

Pharmaceutical industry:chinese medicine extract, plant extract, egg embryo, PVPK series, fermenting liquid etc

Food industry:malt extract, carbohydrate, instant beverage, tea powder, cocoa powder, corn paste etc Chemical Industry:lithium battery, emamectin benzoate etc


Main Technical Data:


Outline dimension Diameter * L * H

Heating / cooling area m^3

Kg / h

Power KW

Vacuum degree

Heating / cooling temp ℃
VB-TOP-6 Φ1000*6000*2600 2layer 5/0.36 4-6 12


40-135 (adjustable)

VB-TOP-8 Φ1000*7500*2600 2layer 6.5/0.5 5-8 12
VB-TOP-12 Φ1200*7500*2700 3layer 11/1.8 7-12 13
VB-TOP-15 Φ1600*7500*2800 3layer 14/1.8 9-15 13
VB-TOP-25 Φ1600*9000*2800 3layer 25/1.8 18-25 15
VB-TOP-30 Φ1800*9000*2900 4layer 29/2 28-32 18
VB-TOP-50 Φ1800*12000*2900 4layer 46/2.4 35-50 20
VB-TOP-60 Φ1900*12000*3200 5layer 57/3 50-60 24
VB-TOP-80 Φ2300*12000*3400 6ayer 75/3.6 70-80 28


15-30 (adjustable)

VB-TOP-100 Φ2300*15000*3600 6layer 94/3.6 90-100 34
VB-TOP-130 Φ2600*15000*3800 7layer 118/5 110-130 40
VB-TOP-150 Φ2800*16500*4200 8layer 147/6.8 140-150 46
VB-TOP-180 Φ3000*16500*4500 9layer 178/7.6 160-180 50
VB-TOP-210 Φ3000*18000*4600 10layer 200/14 190-210 55

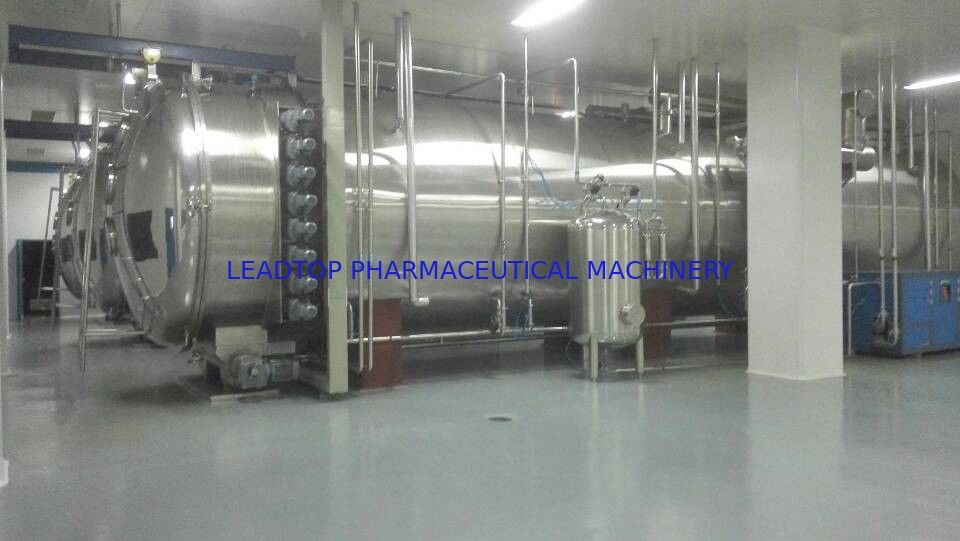

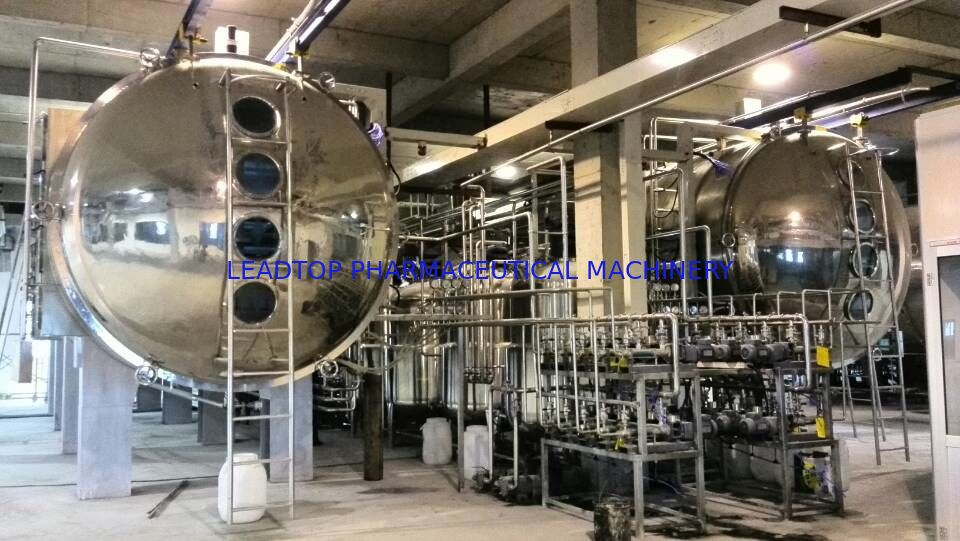

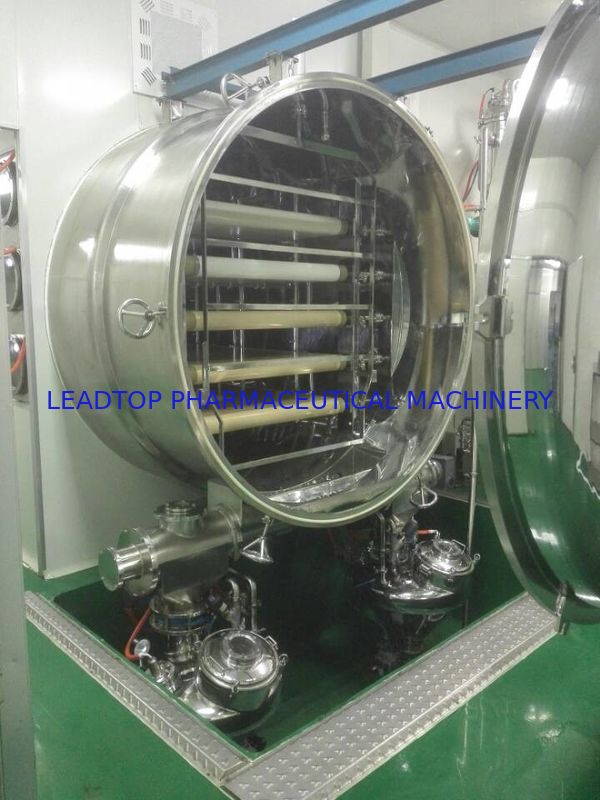

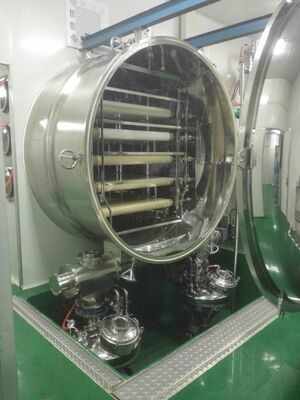

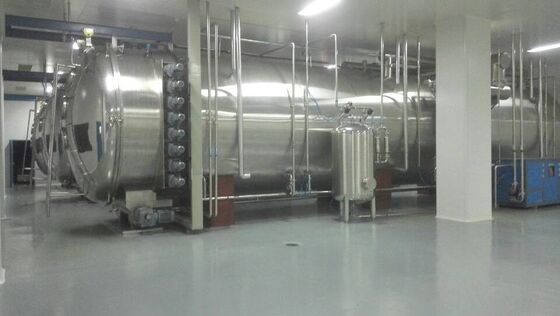

 CE Pharmaceutical Dryers Continuous Belt Industrial Vacuum Drying Machines 0CE Pharmaceutical Dryers Continuous Belt Industrial Vacuum Drying Machines 1
