Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE, GMP
Model Number:
LPG Series
Contact Us

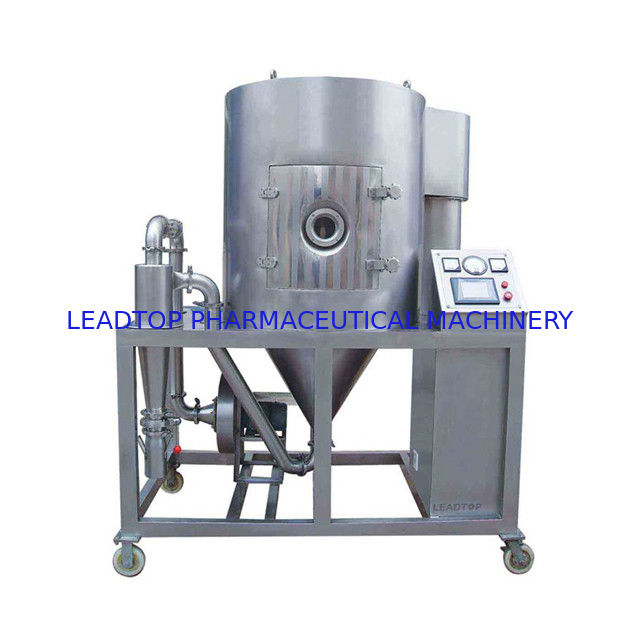

LPG Series Centrifugal Spray Drying Machine,Spray Drying Equipment
The spray machine for drying is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is the most suitable for producing solid powder or particle products from liquid materials, such as: solvent, emulsion, suspension and pumpable paste states, fro this reason, when the particle size and distribution of the final products, residual water contents. Mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technology.
1.Rapid drying speed, which just takes 5-15 seconds.
2.Suitable for thermo-sensitive material and keep the origin state.
3.Simple processing and easy operation, which is suitable for continuous production.
4.The product has a good degree of uniformity, liquidity and dissolubility with high quality and purity.
5.Can adjust the product diameter, density and water content in some degree which is convenient to control and manage.
| Model | 5 | 25 | 50 | 100 | 150 | 200-2000 |
| Inlet temperature | 350°C | |||||
| Outlet temperature | 80-90°C | |||||
| Max. evaporation(kg/h) | 5 | 25 | 50 | 100 | 150 | 200-2000 |
| Centrifugal spraying nozzle transmission mode | compressed air transmission | mechanical transmission | ||||
| Rotation speed (r.p.m) | 25000 | 22000 | 21500 | 18000 | 18000 | 15000 |
| Spray disc diameter | 50mm | 100mm | 120mm | 140mm | 150mm | 180-340mm |
| thermal source | electricity | electricity | electricity + steam, fuel, oil, fuelgas | solved by user | ||
| Max. electric heating power (kw) | 8 | 31.5 | 60 | 81 | 99 | |
| Overall dimension | 1.8*0.93*2.2 | 3*2.7*4.26 | 3.7*3.2*5.1 | 4.6*4.2*6 | 5.5*4.5*7 | optional |
| Powder recollection (%) | 95 | 95 | 95 | 95 | 95 | 95 |
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
Send your inquiry directly to us
