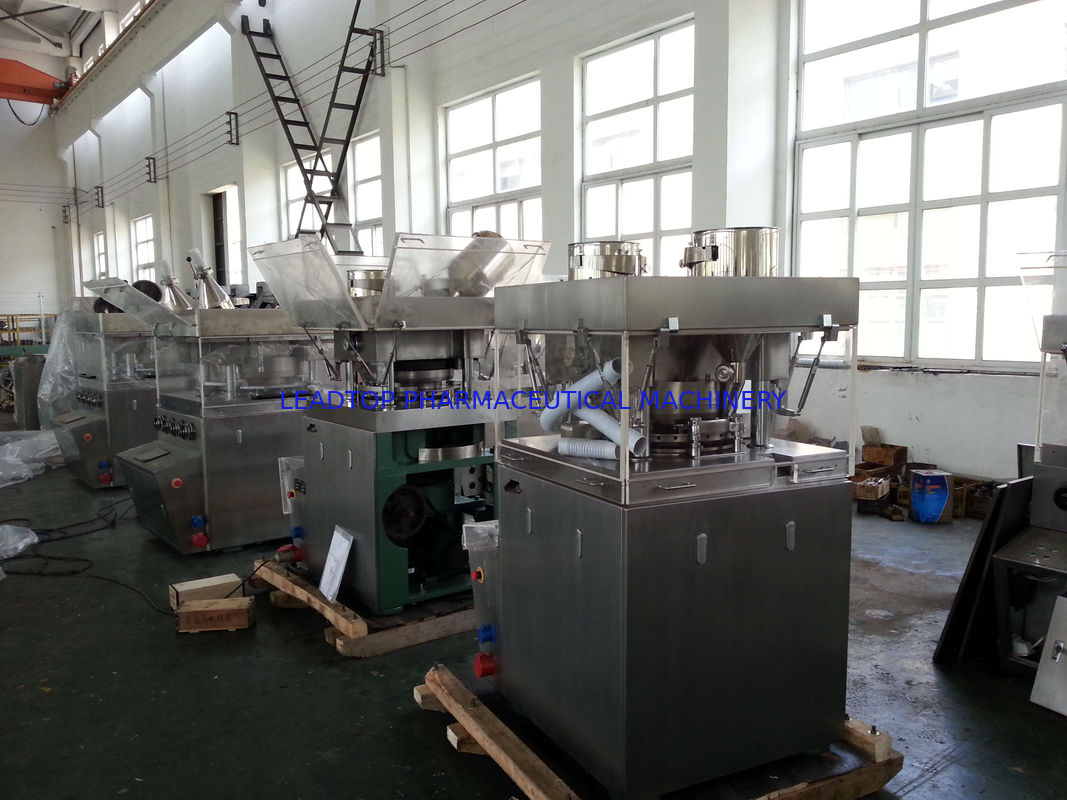

Stainless Steel 304 Double Rotary Tablet Compression Machine Pharmaceutical Tablet Presser
|Place of Origin:||China|
|Brand Name:||LTPM China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 SET|
|Packaging Details:||Wooden Case|
|Delivery Time:||In 25 days after receiving the deposit|
|Payment Terms:||30% TT as deposit and 70% before shipping|
|Supply Ability:||25 sets/Month|
rotary tablet compression machine,
tablet compression machine
Double Press Rotary Tablet Press Machine , Pharmaceutical Tablet Presser
Max Thickness Of The Tablet: 6mm
The Max Diameter Of The Tablet:13mm
Model No.: ZP-35D
Capacity: 60,000-147,000 pcs/hour
Material: Stainless steel 304
Thickness Of Die: 26mm
Power Supply: 380V 50HZ Three Phase
Certificate: CE Certificate
1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.
2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.
3. It is adopts the import Frequency Timing with Electromagnetism Clutch.
4. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.
5. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust
This machine is a double press automatic rotation for shape-pressing equipment, which have the function of press the grain material or powders to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
|Maximum compression (KN)||80|
|Max. Diameter of tablet to be produced (mm)||13|
|Max. Filling depth (mm)||15|
|Max. Thickness of tablet (mm)||6|
|Thickness of the die (mm)||26|
|The diameter of the circle of the central pitch of upper &lower punches on the turret||320mm|
|Rotary speed of the turret (rpm)||14-35|
|Capacity of the tablets (max ten thousand tablets/hour)||
|Area to occupy (mm 2 )||930x950|
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
