Cellophane Packing Automated Packaging Machine Cigerate Cellophane Wrapper TMP-200A

Cellophane Packing Automated Packaging Machine Cigerate Cellophane Wrapper TMP-200A

automatic packaging machine

packing machine for food products

Place of Origin:

Zhejiang Province,China

Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Cellophane Packing Machine
Packaging Material:
BOPP Film, PVC Film
Production Capacity:
30-70 (packs Per Minute)
Packing Size:
AC380V 50HZ 6.5KW
Product Description

TMP-200A Cellophane Packing Machine/Cigarette Cellophane Wrapper


Production Instruction:
Developed on the basis of BTB-300B, the machine is added the system of color mark calibration, which contains the Panasonic servo motor, Siemens controlling modules and PLC touching screen. It is featured by stable running, fast speed and easy operation. This machine is mainly used to automatically wrap various single-piece or slice-shaped collective articles with printed film, such as handkerchief, removable self-stick notes, notepaper, bulk playing cards and soap, etc.


Automatic Grade:

Automatic Driven Type: Electric



food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.
- single product & bulk products


Semi auto Shrink Wrap Machine for Books also Suitable for foods, toys, hardware, cosmetics, medicines, daily commodity, books etc.
Shrink film: PVC, POF and PP.
The sealing time, which depends on film thickness, is adjustable;
The blade with can be prevented from sticking and endure high temperature without smoking;
Adopt folded film and is suitable for small scale production.
Shrink Tunnel:
The tunnel uses stainless steel heating elements, which ensures long life span;
Shrinking temperature and conveyor speed are adjustable and stable;
Conveyor unit has mesh belt type and rod-shaped chain type for your option;
Intelligent digital temperature controller can guarantee precise temperature.
The finished products are neat, compact and suitable for storage and prolonged transportation.



Main Technical Data:

Model TMP-200B
Packaging Materials OPP, BOPP film, PVC film
Production capacity 30-70 (packs per minute)
Packing size L(50-190)×W(50-110)×H(10-50)mm
Power AC380V 50HZ 6.5KW
Working pressure 0.5Mpa
The whole weight 680kg
Dimensions 2100×800×1500mm

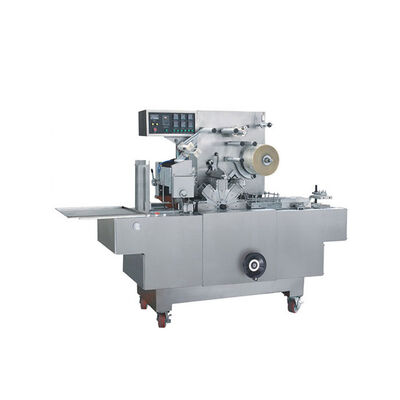

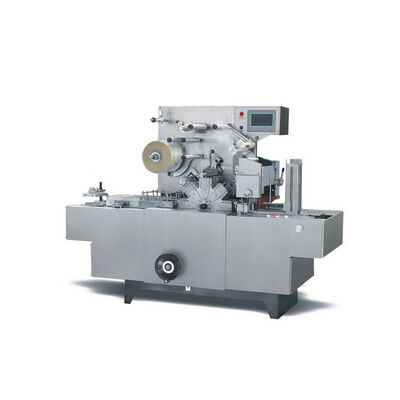

Machine Picture:

Cellophane Packing Automated Packaging Machine Cigerate Cellophane Wrapper TMP-200A 0

Cellophane Packing Automated Packaging Machine Cigerate Cellophane Wrapper TMP-200A 1


Our Services:

1. We have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and

Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)



For more information's, please feel free to contact with us by mail or telephone call.
