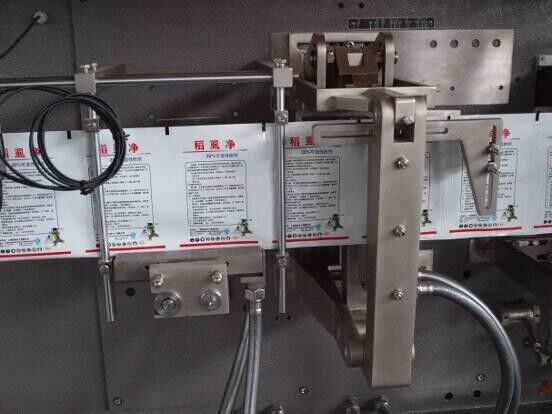

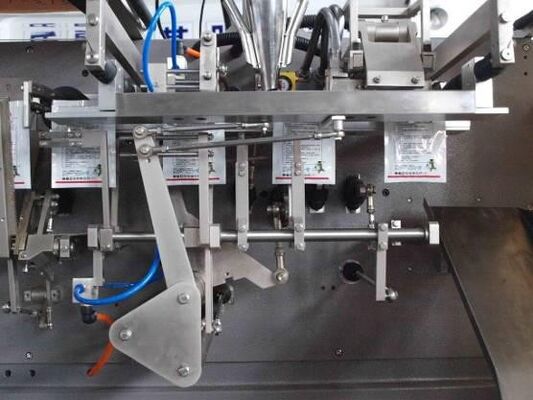

PLC Controller Automated Packaging Machine for Stand Up Zipper Pouches
Performance and features :
1. wide applications: various state and nature of solid (granule);
2. A wide range of pouches: all kinds of pre-made pouches;
3. Easy to operate: PLC controller, HMI system makes easy operation;
4. Easy to adjust: change different pouches within 10 minutes;
5. High automation: unmanned in weighing and packing process, machine alarm automatically when failure;
6. Perfect prevention system: when the bag is not opened or not opened completely, it will be non-filling and
non-sealing, so the bags can be reused and the product is not wasted thus save the production cost;
7. The product contact parts are adopted SUS304 to ensure sanitation and safety, meet the GMP standard;
8. Imported engineer plastic bearings, no need to oil, no contamination;
9. Vacuum generator: low consumption, high efficiency, cleaness, and long useful life;
10. Waterproof and suctproof design:direct water-washing the machine surface,easy to clean, prolong the useful life
11. Pre-made bag packing: perfect sealing quality, upgrade the finished product.
Technical parameters :
|
Equipment model |
GD8-200B |
|
Equipment material |
304 stainless steel |
|
Pneumatic component |
SMC,AirTAC |
|
Vacuum component |
Vacuum generator (SMC) |
|
Drive mode |
Frequency conversion motor drive |
|
Measuring type |
Auger filler, linear weigher |
|
Operation interface |
Touch screen(double language:Chinese and English) |
|
Bag materials |
Heat sealable film as PA/PE,PET/PE,AL film etc. |
|
Bag size |
W:70~200mm L:100~300mm (date coding requires≥140mm length) |
|
|
|
|
Filling range |
5~1500g |
|
Packing speed |
20~45bags/min (depended on the product and filling weight) |
|
Package accuracy |
Error≤±1% |
|
Weight |
RZ6-200:800kg |
|
|
RZ8-200:1000KG |
|
Dimension |
RZ6-200:1475*1325*1480(L,W,H) |
|
|
RZ8-200:1635*1455*1480(L,W,H) |
|
Total power |
RZ6-200:1.5kw |
|
|
RZ8-200:2.3kw |
|
Driving power source |
380V Three-phase Five-line 50HZ |
|
Control power source |
DC24V |
|
Compress air requirement |
≥0.45m³/min (compress air is provided by user) |
