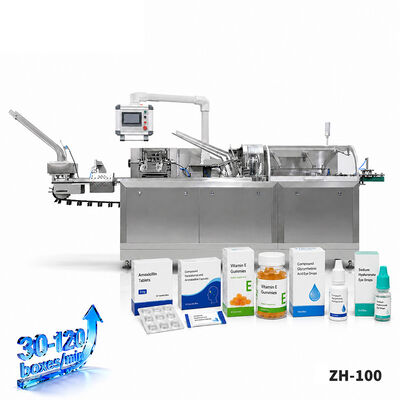

ZH100 automatic cartoning machine is a high-tech product integrating light, electricity, gas and machine, which greatly improves the performance and work efficiency of the equipment, realizes the requirements of fast cartoning, and still maintain a stable and reliable state when working fast.
This model is suitable for automatic feeding and boxing of similar bagged items (such as emulsion, granular bags, soft double aluminum, plasters, band-aids, facial masks, coffee bags, etc.). Online material detection; leaflet folding and transmission (automatic folding of 1-4 folds can be carried out); automatic expansion of the carton, forming and transmission, the material and the folded leaflet are loaded into the carton together; and automatic batch number pressing, Complex packaging process such as paper tongue sealing at both ends. The appearance of the machine is all made of high-quality stainless steel casing, and innovative design is strictly in accordance with the requirements of the "GMP" standard. The transmission part is designed with an overload protection function and an emergency stop device is set. The operating system adopts a touch-type man-machine interface operation screen to ensure the personal safety of the operator
Model
ZH100
Encasing speed
30-120 boxes /min
Box Quality requirement
250-350g/㎡
Working pressure
≥0.6mpa
Power supply
220V 50HZ
Main motor power
0.75kw
Machine dimension(L×W×H)
2150㎜×1140㎜×1800㎜
Machine weight
1100kg
Feature
1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2: Adopt human-machine operation system.
3. Automatically stop when machine is overload.
4. Automatically reject lacking of package product and leaflet.
5. Automatically display trouble, Alarm and count finished products. High-intensity photoelectric monitors the actions of various parts, and if abnormalities occur during operation, it can automatically display and eliminate the fault in time;
6. Stable performance, operation is easy.
7. The main machine adopts frequency conversion speed regulation (the number of packaging can be adjusted from 30 boxes to 120 boxes/minute, and the corresponding number of times can be set according to the difficulty of packaging items and packaging boxes).
