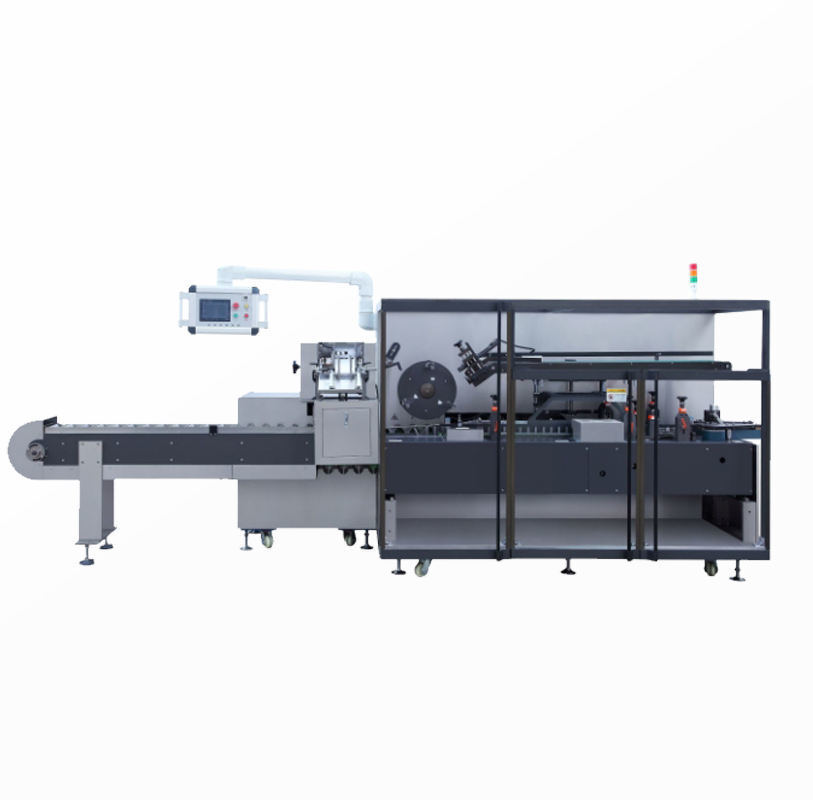

ZH100automatic cartoning machine is suitable for food,pharma, cosmetics, commodities etc.It can open box, fill product into box, then close box with tuck-in closure or hot-melt sealing. It can connect with the Pillow Packaging Machine, VFFS machine,Shrink-Wrapper, etc., to be a full automatic packaging line.The machine adopts world-famous brand electric parts,it's high productivity and high performance.
Size Information
Item
Parameters
Remarks
Material type
Manual discharge
Unpacking speed (production capacity)
200carton/minute
Carton requirements
Carton requirements
250—400g/m2
Carton size
L(70-210)xW(15-90)xH(15-80)mm
(L - W - H ) is shipped after on-demand debugging
Compressed air supply
pressure
≥0.6MPa
Air consumption
120-180L/min
power supply
220V/380V /400V50Hz 60HZ
Main motor power
1.5kw
Exterior dimensions LXWXH
4600x1500x1800mm
Non-standard equipment, there will be deviations, subject to the actual situation
