High-Speed Automatic Tablet Counting Machine with 15,000 Tablets Per Minute and >99.98% Accuracy for 10~500ml Bottles

High-Speed Automatic Tablet Counting Machine with 15,000 Tablets Per Minute and >99.98% Accuracy for 10~500ml Bottles

Brand Name: LTPM CHINA
Model Number: LTEC-Series
MOQ: 1 Set
Price: Negotiable price
Detail Information
Place of Origin:
Zhejiang China
Certification:
CE
Model:
RC-2/HY-2/HY-2A/ LTEC-Series
Service:
Door To Door Service
Air Consumption:
≤100L/min
Applicable Bottle:
10~500ml Round、square Plastic Bottle
Packing:
Wooden Case
Filling Range:
2-9999 Pcs/bottle
Accuracy Rate:
>99.98%
Capacity:
Up To 15,000 Tablets Per Minute
Packaging Details:
WOODEN CASE
Highlight:

15

,

000 Tablets Per Minute Tablet Counting Machine

,

>99.98% Accuracy Rate Capsule Counting Machine

,

10~500ml Bottle Compatibility Pill Counting Machine

Product Description
Multi Lane Automatic Capsule Tablet Bottling High Accuracy High Speed Counting Machine

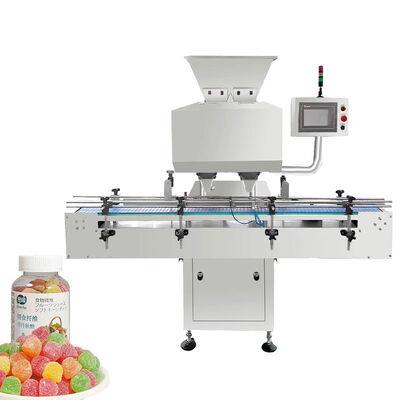

The Automatic Capsule Tablet Counting and Bottling Electronic Counting Machine is an advanced electromechanical integrated digital device designed for precise counting and filling of products including tablets, capsules, granules, soft gels, gummy candies, and food items. This system significantly enhances productivity while eliminating manual contamination risks associated with hand counting operations. Engineered in strict compliance with national GMP standards, the machine can operate independently or integrate seamlessly with complementary equipment such as bottle unscramblers, clearers, paper jammers, punching machines, capping machines, sealing machines, and labeling systems.
High-Speed Automatic Tablet Counting Machine with 15,000 Tablets Per Minute and >99.98% Accuracy for 10~500ml Bottles 0
Key Features
  • Consistent Feeding: Utilizes a 3-stage multi-channel vibration system
  • Accurate Counting: Boasts dust-proof photoelectric sensors and PLC control
  • Intelligent System: Automatic rejection and alert functions
  • Simple Operation: Intuitive touchscreen control with up to 15 memory presets
  • Dust Collection: Built with a dust manifold for a clean work area
  • Adjustable Height: Easily adapts to different bottle sizes
Technical Specifications
Parameter Specification
Accuracy Rate >99.98%
Application Tablet, Capsules, Pills, Candies, Screws, Nuts
Air Consumption ≤100L/min
Filling Range 2-9999 Pcs/bottle
Pill Size 5-25mm
Model RC-2/HY-2/HY-2A/LTEC-Series
Service Door To Door Service
Packing Wooden Case
Location China
Applicable Bottle 10~500ml Round, square Plastic Bottle
Applications
This specialized counting machine serves diverse industries including pharmaceuticals, healthcare, food processing, agricultural chemicals, and more. It efficiently handles various product types such as tablets, coated tablets, and soft/hard capsules. The system offers flexible deployment options, functioning effectively as a standalone unit or as part of a comprehensive production line when integrated with other processing equipment.
High-Speed Automatic Tablet Counting Machine with 15,000 Tablets Per Minute and >99.98% Accuracy for 10~500ml Bottles 1

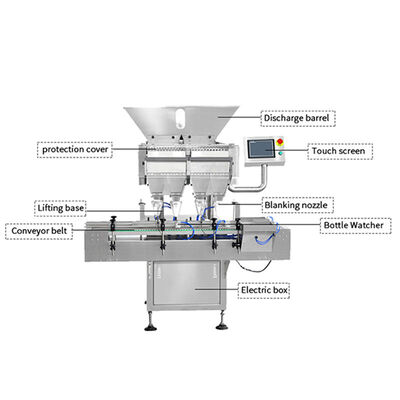

Machine Details
High-Speed Automatic Tablet Counting Machine with 15,000 Tablets Per Minute and >99.98% Accuracy for 10~500ml Bottles 2
High-Speed Automatic Tablet Counting Machine with 15,000 Tablets Per Minute and >99.98% Accuracy for 10~500ml Bottles 3
CONVEYOR VIBRATING BLANKING
Equipped with multi-stage vibrator and multi-channel design, this system vibrates different types of materials step by step in a stable and orderly manner. The vibration frequency is fully adjustable for optimal performance.
High-Speed Automatic Tablet Counting Machine with 15,000 Tablets Per Minute and >99.98% Accuracy for 10~500ml Bottles 4
INTELLIGENT CONTROL PANEL
Features a high-quality touch screen with stable performance for intuitive operation and precise control.
High-Speed Automatic Tablet Counting Machine with 15,000 Tablets Per Minute and >99.98% Accuracy for 10~500ml Bottles 5
LIGHT VIEWING BATTERY ELECTRIC EYE DEVICE
Incorporates a photoelectric detection device with high-quality anti-dust electronic counting technology that is highly sensitive and automatically detects bottle operation states.
High-Speed Automatic Tablet Counting Machine with 15,000 Tablets Per Minute and >99.98% Accuracy for 10~500ml Bottles 6
OBSERVATION WINDOW
Provides convenient real-time observation of material falling processes, preventing circulation issues and ensuring maximum production efficiency.
