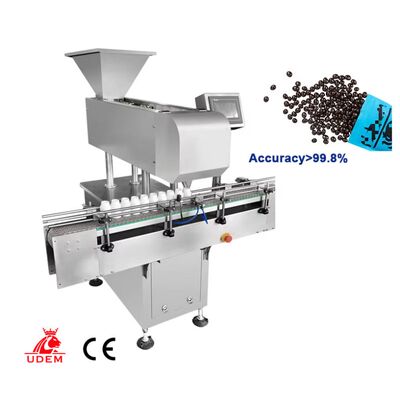

Automatic Tablet Counting Machine with 15,000 Tablets Per Minute, >99.98% Accuracy Rate, and 10~500ml Bottle Compatibility

Name: Automatic Tablet Counting Machine with 15,000 Tablets Per Minute, >99.98% Accuracy Rate, and 10~500ml Bottle Compatibility
Brand: Leadtop Pharmaceutical Machinery
SKU: LTEC-Series
Price: 32,505.00 USD
Availability: InStock

Brand Name:	LTPM CHINA
Model Number:	LTEC-Series
MOQ:	1 Set
Price:	Negotiable price

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang China

Certification:

Model:

RC-2/HY-2/HY-2A/ LTEC-Series

Service:

Door To Door Service

Air Consumption:

≤100L/min

Applicable Bottle:

10~500ml Round、square Plastic Bottle

Packing:

Wooden Case

Filling Range:

2-9999 Pcs/bottle

Accuracy Rate:

＞99.98%

Capacity:

Up To 15,000 Tablets Per Minute

Packaging Details:

WOODEN CASE

Highlight:

15 000 Tablets Per Minute Tablet Counting Machine

>99.98% Accuracy Rate Pill Counting Machine

Product Description

Automatic Particle Bean Seed Chewing Gum Candy Softgel Lab Capsule Tablet Counting Machine

Working Principle

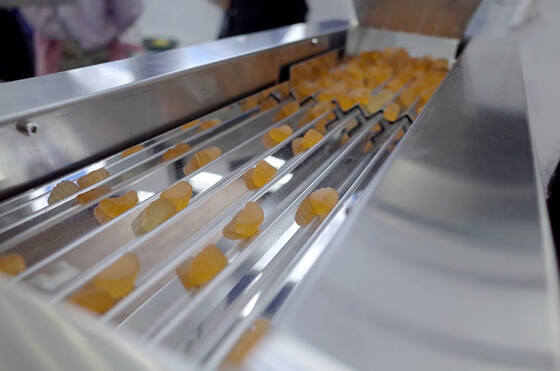

The machine operates through vibration-driven product movement. Products pass through the regulating valve below the material container, moving forward in sequence and falling into counting tunnels. When products reach raster holes, the counting photoelectric sensor generates pulse signals for counting. These signals are grouped into left and right channels, accumulated, and sent to the PLC controller. Once the preset quantity is reached, the flashboard closes automatically.

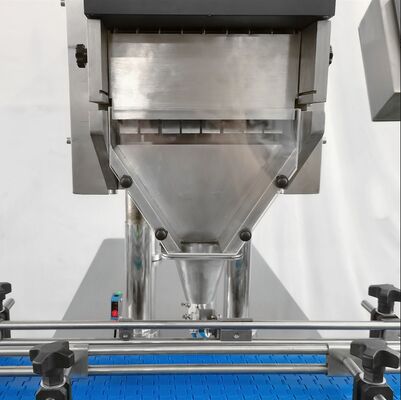

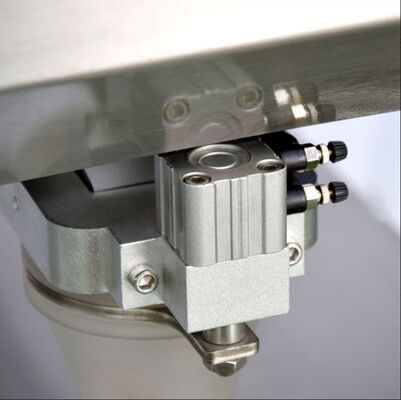

Simultaneously, the bottle to be filled is positioned correctly. The funnel cylinder board opens, allowing the counted products to fall into the bottle. The tunnel then begins another counting cycle while the positioning cylinder opens, sending the filled bottle to the next process. A new bottle is placed under the funnel, initiating a new round of counting and filling operations.

Key Features

Product Name: Tablet Counting Machine
Application: Tablets, Capsules, Pills, Candies, Screws, Nuts
Applicable Bottle: 10~500ml Round and Square Plastic Bottles
Counting Accuracy: ≥99.5%
Packing: Wooden Case
Location: China

Technical Specifications

Parameter	Specification
Accuracy Rate	>99.98%
Application	Tablet, Capsules, Pills, Candies, Screws, Nuts
Air Consumption	≤100L/min
Filling Range	2-9999 Pcs/bottle
Pill Size	5-25mm
Model	RC-2/HY-2/HY-2A/LTEC-Series
Service	Door To Door Service
Packing	Wooden Case
Location	China
Applicable Bottle	10~500ml Round, square Plastic Bottle

Applications

Machine Details
