Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE
Model Number:
LTRG-Series
Contact Us

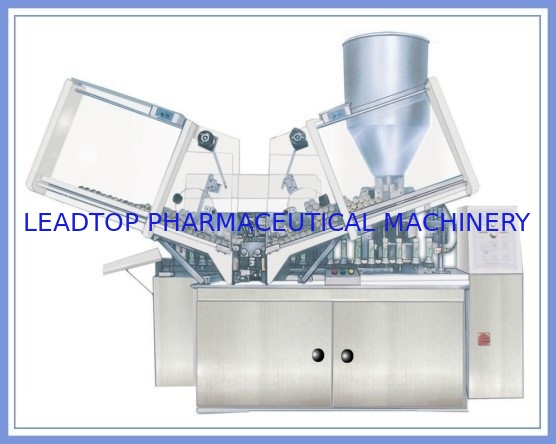

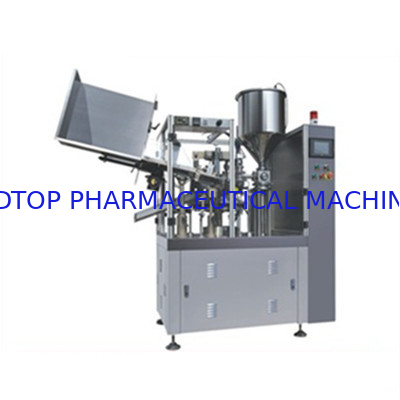

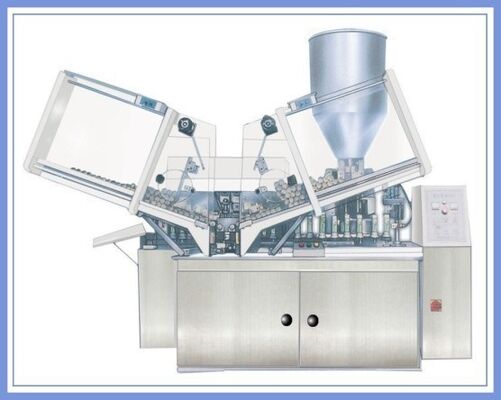

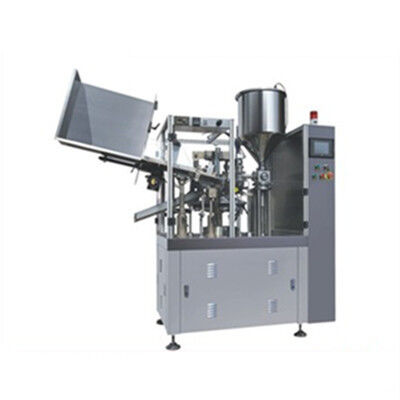

Plastic (compound) hose filling machine is mainly used for a transmission principle. Indexing mechanism drives the turntable with a fixture to move intermittently, to complete automatically a serious of functions,like filling,internal and external heating, sealing the tail of the hose, pressing code, trimming, exiting the finished products,date printing and so on.
Filling measurement is precise, heating time is stability and adjustable, the appearance of sealing is beautiful, tidy, solid, health. Trimming is smooth.The machine sets 10 stations, the whole actions can be done automatically. It runs smoothly and reliably.
All the material contact parts and related parts are made of stainless steel,the parts that need to be cleaned is chosen the fast-change equipment,it is so convenient to be disassembled and cleaned.For the materials that should be heated and kept warm,it can be equipped heating thermostatic device out the material barrel.
It is widely used in the cosmetics,medicines,adhesives,shoe polish industries and other related industries.
| Filling range | 20-100ml(can be changed) |
| Voltage | 220V |
| Capacity | 20-35pics/min(according to the material) |
| Precision of calculating | ±1% |
| Size | 1250×950×1005mm |
| Weight | 380kg |
| Working air pressure | >0.4MPa |
