Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE
Model Number:
LTRG-50
Contact Us

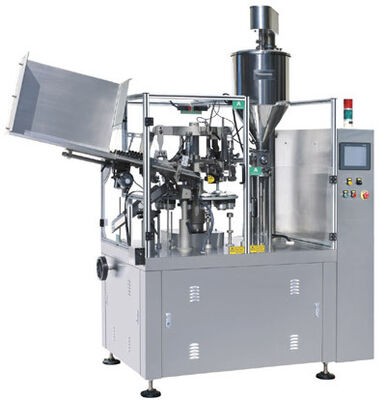

Intelligent Automatic Tube Filling And Sealing Machine For Soft Plastic Tube
Description:
The control parts of the machine are composed of intelligent man-computer interface, large touch screen display and operation control panel, functions including temperature setting, motor speed setting, filling speed setting, direct screen display, screen display and screen control. The components of the machine which will contact with the filling material are made of stainless steel SUS304 and SUS316L. Transparent cover, feeding hose, feeding device are also supplied along with the machine. The machine is featured with safety switch, auto-stop, soft tube location, photoelectric sealing control, etc. During the process of hose-feeding and setting, filling and sealing, the ejectings are all automatically controlled. Digital count device is installed at the front part of the machine. During the filing process, the filling head is placed inside of the material, and the blow-off device is installed to ensure a complete sealing. Various sealing types are available to meet different needs.
Applications:
This machine is mainly used to fill the material into metal tubes with fixed quantity and then seal the tube. It is widely used for the packing of chemicals, cosmetics, foods and pharmaceuticals, such as ointment, AB glues, super glues, epoxy adhesives, skin creams, hair dye, shoeshine, toothpaste and other liquid and sticky materials. Manually put the metal tube (max:16 tubes) into the tube-holding base. With the help of automatic mechanical transmission, automatic detection can confirm the tubing process and filling process. The final step is to seal the tube.
Specifications:
Power Supply | AC 220V±10% 50HZ |
Work Temp | 5~50℃ |
Filling Quantity | 10-75ml, 20-150ml |
Motor Power | 0.75~1.1kw |
Compressed Air Pressure | 0.6~0.7Mpa |
Compressed Air Volume | 0.2m3/min |
Capacity | 10~50 tube/min (adjustable) |
Dimension | 1000mm*600mm*1700mm |
Weight | 400kg |
Competitive Advantage:
1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
