Name: Flour Powder Filling Packaging Machine 2000BPH Industrial Auger Filler
Brand: LTPM CHINA
SKU: SingFill-Series
Rating: 4.7 (131 reviews)

Home > products > Automated Packaging Machine >

Flour Powder Filling Packaging Machine 2000BPH Industrial Auger Filler

Flour Powder Filling Packaging Machine

2000BPH Powder Filling Packaging Machine

Powder Auger Filler Machine

Place of Origin:

Zhejiang Province,China

Brand Name:

LTPM CHINA

Certification:

CE, GMP, SGS, BV

Model Number:

SingFill-Series

Request A Quote

Flour Powder Filling Packaging Machine 2000BPH Industrial Auger Filler

Product Details

Warranty:

5 Years

Machinery Capacity:

2000BPH

Weight:

350 KG

Packing Weight:

10~5000g

Packing Precision:

100~500g, ≤±1%;500~2000g, ≤±0.5%

Filling Speed:

20 - 40 Bottles/min

Air Supply:

6 Kg/cm2 0.05m3/min

Hopper Volume:

50L

Pouch 70Bags/Min 0.7Mpa Weigh Filler Packaging Machine

Get Best Price

Video

3.0Kw Puffed Food Multihead Weigher Packing Machine

Get Best Price

Video

Honey Blister Packing Machine 50ml Sustainable Easy Snap Type

Get Best Price

150mm Automated Packaging Machine

Get Best Price

86-0577-65158955

info@chinaleadtop.com

86-0577-65158944

Contact Now

Product Description

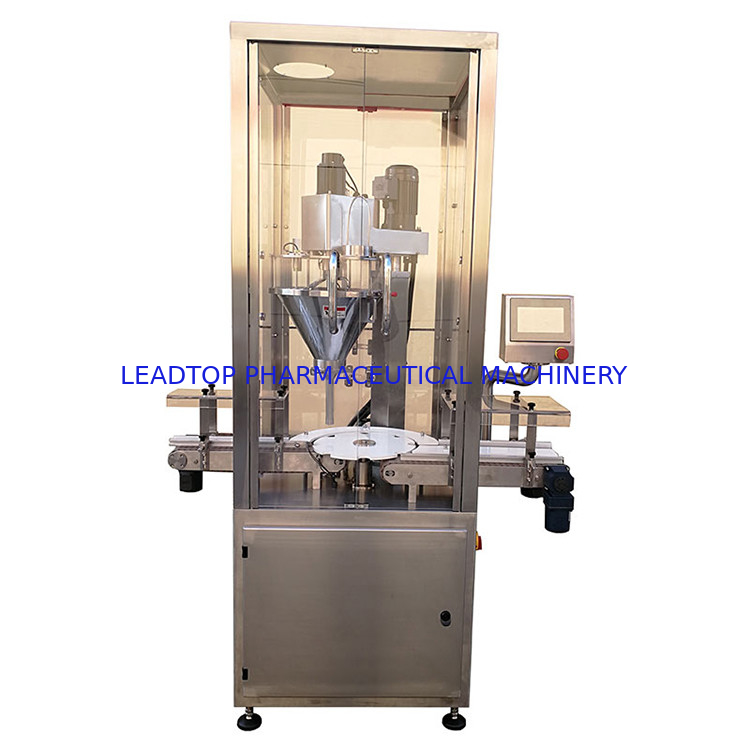

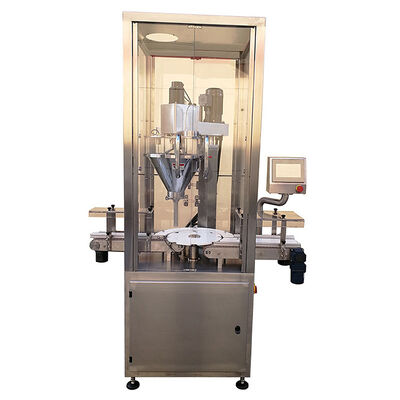

This Series Could Do Work Of Measuring, Can Holding, And Filling ,Etc, It Can Constitute The Whole Set Can Filling Work Line With Other Related Machines, And Suitable For Filling Kohl, Glitter Powder, Pepper, Cayenne Pepper, Milk Powder, Rice Flour, Albumen Powder, Soy Milk Powder, Coffee Powder, Medicine Powder ,Additive, Essence And Spice, Etc.

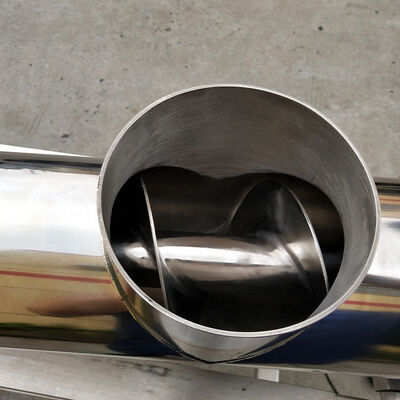

Flour Powder Filling Packaging Machine 2000BPH Industrial Auger Filler 0

Main Features

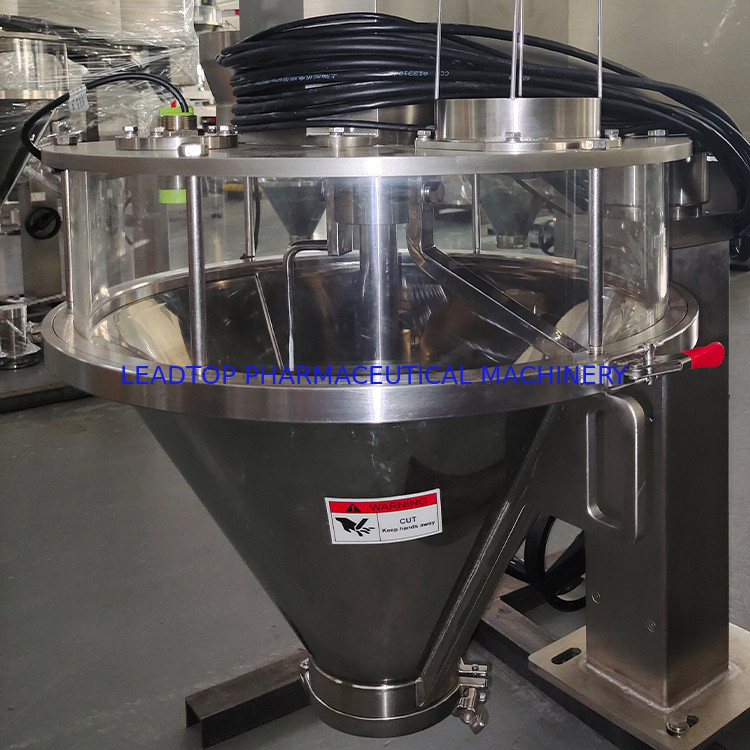

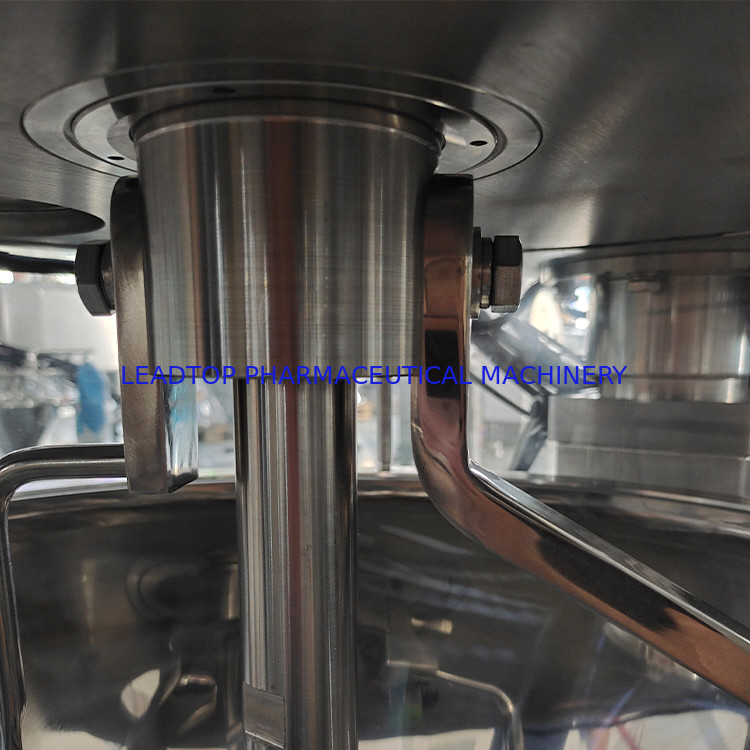

Stainless Steel Structure, Level Split Hopper, Easily To Wash. 2.Servo-Motor Drive Auger. Servo-Motor Controlled Turntable With Stable Performance.
PLC, Touch Screen And Weighing Module Control.

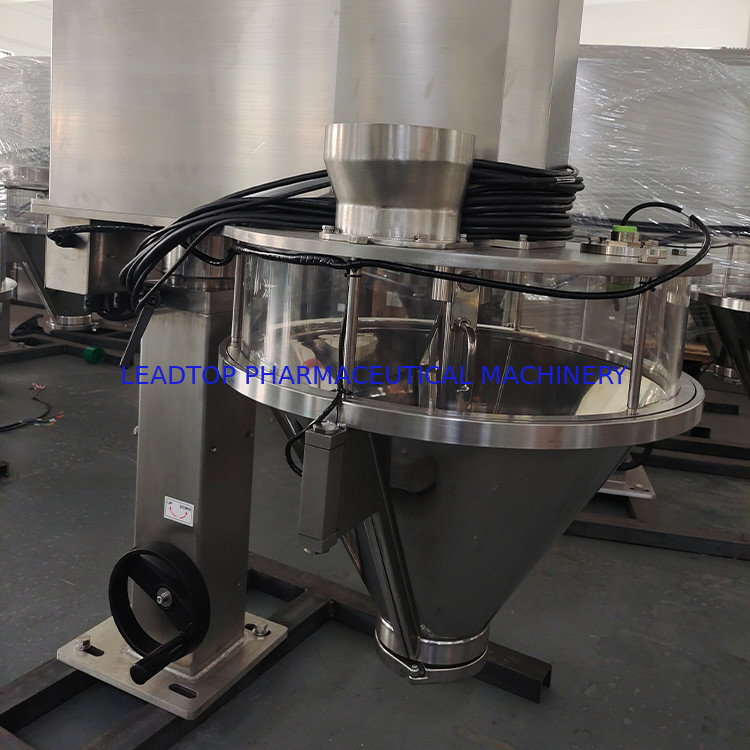

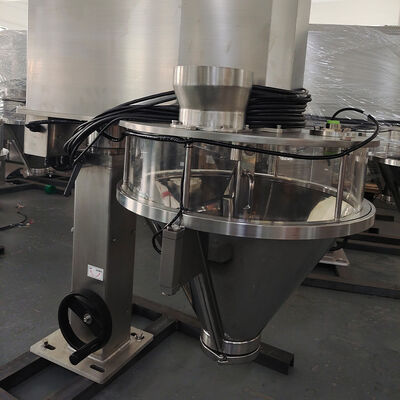

With Adjustable Height-Adjustment Handwheel At Reasonable Height, Easy To Adjust The Head Position.
With Pneumatic Can Lifting Device To Assure The Material Not Spilling Out When Filling.
Weight-Chosen Device, To Assure Each Product Be Qualified, So To Leave The Latter Cull Eliminator.
To Save All Product’s Parameter Formula For Later Use, Save 10 Sets At Most.
When Changing The Auger Accessories, It Is Suitable For Materials Ranging From Super Fine Powder To Small Granula.

Model	SingFill-1-D100	SingFill-1-D160
Container Size	φ20-100mm, H 15-150mm	φ30-160mm , H50-260mm
Filling Weight	1 – 500g	10 – 5000g
Filling Accuracy	≤ 100g, ≤±2%; 100 – 500g,≤±1%	≤ 500g, ≤±1%; >500g, ≤±0.5%
Filling Speed	20 - 40 bottles/min	20 - 40 bottles/min
Power Supply	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz
Air Supply	6 kg/cm2 0.05m3/min	6 kg/cm2 0.05m3/min
Total Power	1.8Kw	2.3Kw
Total Weight	250kg	350kg
Overall Dimensions	1400×830×2080mm	1840×1070×2420mm
Hopper Volume	25L(Enlarge Size 35L)	50L(Enlarged Size 65L)

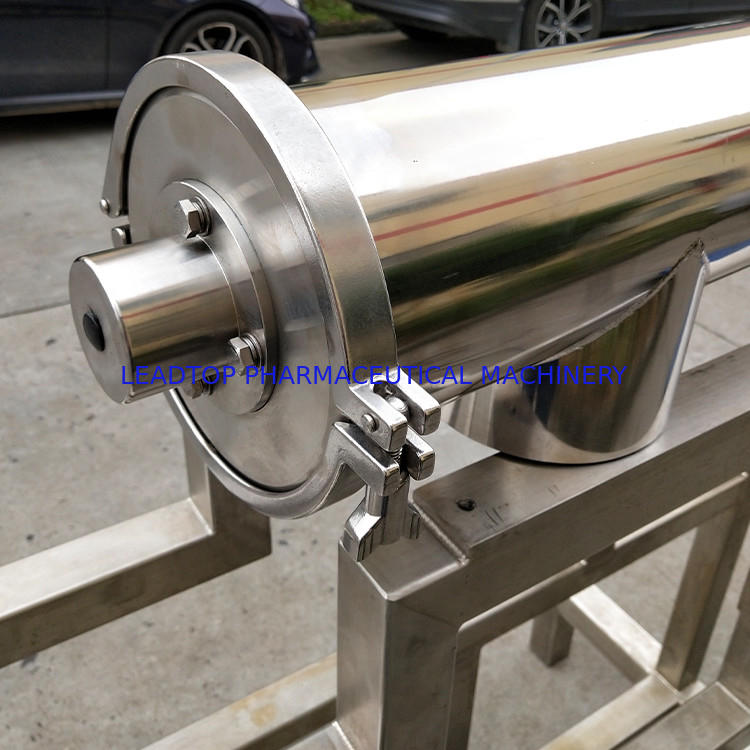

Model	AugEle-A1 -2K	AugEle-A1 -3K	AugEle-A1 -5K	AugEle-A1 -7K	AugEle-A1 -8K	AugEle-A1 -12K
Charging Capacity	2m3/h	3m3/h	5 m3/h	7 m3/h	8 m3/h	12 m3/h
Diameter of pipe	Φ102	Φ114	Φ141	Φ159	Φ168	Φ219
Total power	0.55KW	0.75W	1.5KW	2.2KW	2.2KW	3.0KW
Total Weight	70kg	90kg	130kg	160kg	180kg	230kg
Thickness of Pipe	2.0mm	2.0mm	2.0mm	3.0mm	3.0mm	3.0mm

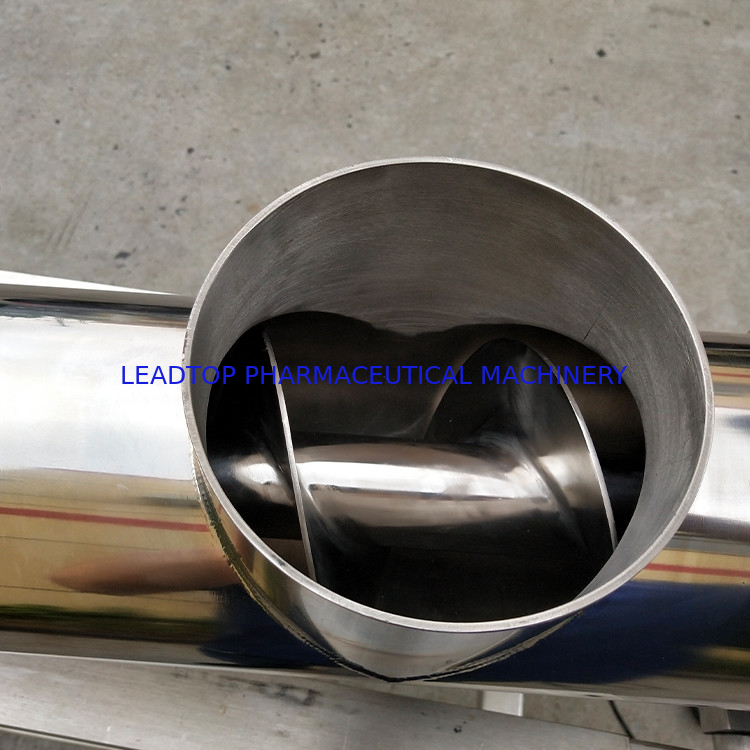

Outer dia.of Screw	Φ88mm	Φ100mm	Φ126mm	Φ141mm	Φ150mm	Φ200mm
Pitch	76mm	80mm	100mm	110mm	120mm	180mm
Thickness of Pitch	2mm	2mm	2.5mm	2.5mm	2.5mm	3mm
Dia.of Axis	Φ32mm	Φ32mm	Φ42mm	Φ48mm	Φ48mm	Φ57mm
Thickness of Axis	3mm	3mm	3mm	4mm	4mm	4mm

Power supply:3P AC208-415V 50/60Hz Charging Angle:Standard 45 Degree,30~60 Degree Are Also Available.
Charging Height:Standard 1.85M,1~5M Could Be Designed And Manufactured.
Fully Stainless Steel Structure,Contact Parts Ss304;
Remark: Other Charging Capacity Could Be Designed And Manufactured.

Deploy List
Motor:Able(Chinese brand)
Gear reducer:Shanghai Saini,Ratio:1:10

Model	AugEle-A2 -2K	AugEle-A2 -3K	AugEle-A2 -5K	AugEle-A2 -7K	AugEle-A2 -8K	AugEle-A2 -12K
Charging Capacity	2m3/h	3m3/h	5 m3/h	7 m3/h	8 m3/h	12 m3/h
Diameter of pipe	φ102	φ114	φ141	φ159	Φ168	Φ219
Total power	0.58KW	0.78W	1.53KW	2.23KW	2.23KW	3.03KW
Total Weight	100kg	130kg	170kg	200kg	220kg	270kg
Hopper Volume	100L	200L	200L	200L	200L	200L
Thickness of Hopper	1.5mm	1.5mm	1.5mm	1.5mm	1.5mm	1.5mm
Thickness of Pipe	2.0mm	2.0mm	2.0mm	3.0mm	3.0mm	3.0mm
Outer dia.of Screw	Φ88mm	Φ100mm	Φ126mm	Φ141mm	Φ150mm	Φ200mm
Pitch	76mm	80mm	100mm	110mm	120mm	180mm
Thickness of Pitch	2mm	2mm	2.5mm	2.5mm	2.5mm	3mm
Dia.of Axis	Φ32mm	Φ32mm	Φ42mm	Φ48mm	Φ48mm	Φ57mm
Thickness of Axis	3mm	3mm	3mm	4mm	4mm	4mm

Power supply:3P AC208-415V 50/60Hz Charging Angle:Standard 45 Degree,30~60 Degree Are Also Available.
Charging Height:Standard 1.85M,1~5M Could Be Designed And Manufactured.
Square Hopper,With Vibrator,Round Hopper Could Be Designed And Manufactured.
Fully Stainless Steel Structure,Contact Parts SS304;
Remark: Other Charging Capacity Could Be Designed And Manufactured.

Deploy List

Motor:Able(Chinese brand)
Gear reducer:Shanghai Saini,Ratio:1:10
Vibrating motor:Oli-Wolong,Power:30W
