Name: Spice Coffee Flour Automatic Auger Powder Filler Machine 40 Bottles/Min
Brand: LTPM CHINA
SKU: SingFill-Series
Rating: 4.8 (109 reviews)

Home > products > Automated Packaging Machine >

Spice Coffee Flour Automatic Auger Powder Filler Machine 40 Bottles/Min

Automatic Spice Coffee Auger Filler Machine

Flour Auger Powder Filler Machine

Automatic Auger Filling Machine

Place of Origin:

Zhejiang Province,China

Brand Name:

LTPM CHINA

Certification:

CE, GMP, SGS, BV

Model Number:

SingFill-Series

Request A Quote

Spice Coffee Flour Automatic Auger Powder Filler Machine 40 Bottles/Min

Product Details

Warranty:

5 Years

Machinery Capacity:

2000BPH

Core Components:

Motor, Pump, Gearbox

Packing Weight:

10~5000g

Packing Precision:

100~500g, ≤±1%;500~2000g, ≤±0.5%

Filling Speed:

20 - 40 Bottles/min

Power Supply:

3P AC208-415V 50/60Hz

Hopper Volume:

50L

Pouch 70Bags/Min 0.7Mpa Weigh Filler Packaging Machine

Get Best Price

Video

3.0Kw Puffed Food Multihead Weigher Packing Machine

Get Best Price

Video

Honey Blister Packing Machine 50ml Sustainable Easy Snap Type

Get Best Price

150mm Automated Packaging Machine

Get Best Price

86-0577-65158955

info@chinaleadtop.com

86-0577-65158944

Contact Now

Product Description

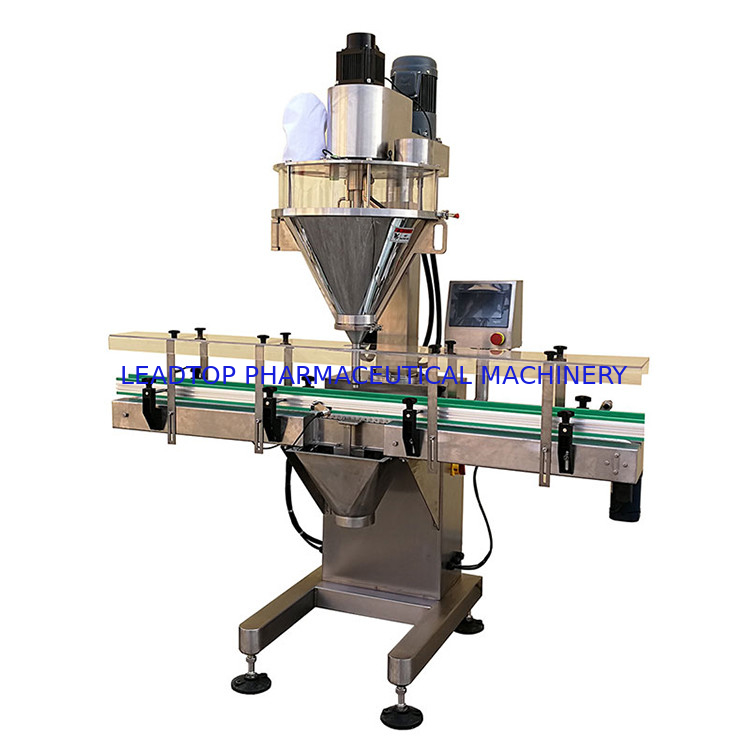

This Machine Is a Complete, Economical Solution To Your Filling Production Line Requirements.Can Measuring And Filling Powder And Granular. It Consists Of The Filling Head, An Independent Motorized Chain Conveyor Mounted On a Sturdy, Stable Frame Base, And All Necessary Accessories To Reliably Move And Position Containers For Filling, Dispense The Required Amount Of Product, Then Quickly Move The Filled Containers Away To Other Equipment In Your Line (e.g., Cappers, Labelers, Etc.).It Fits More To The Fluidic Or Low-Fluidity Materials, Like Milk Powder, Albumen Powder, Pharmaceuticals, Condiment, Solid Drink, White Sugar, Dextrose, Coffee, Agriculture Pesticide, Granular Additive, And So On.

Spice Coffee Flour Automatic Auger Powder Filler Machine 40 Bottles/Min 0

Main Features

Stainless Steel Structure; The Quick Disconnecting Hopper Could Be Washed Easily Without Tools. 2.Servo Motor Drive Screw.

PLC, Touch Screen And Weighing Module Control. 4.To Save All Product’s Parameter Formula For Later Use, Save 10 Sets At Most.

Replacing The Auger Parts, It Is Suitable For Material From Super Thin Powder To Granule.
Include Handwheel Of Adjustable Height.

Machine Parameters

Model	SingFill-1-S	SingFill-1-M
Dosing Mode	Directly Dosing By Auger
Filling Weight	1 - 500g	10 – 5000g
Filling Accuracy	≤ 100g, ≤±2%；100 – 500g, ≤±1%	≤ 500g, ≤±1%; >500g, ≤±0.5%
Filling Speed	15 – 40 Bottles Per Min
Power Supply	3P AC208-415V 50/60Hz
Air Supply	6 Kg/Cm2 0.05m3/Min
Total Power	1.2Kw	1.6Kw
Total Weight	160kg	300kg
Overall Dimensions	1500×760×1850mm	2000×970×2030mm
Hopper Volume	25L(Enlarged Size 35L)	50L(Enlarged Size 75L)

Model	AugEle-S1 -1K	AugEle-S1 -2K	AugEle-S1 -3K	AugEle-S1 -5K	AugEle-S1 -7K	AugEle-S1 -8K	AugEle-S1 -12K
Conveying Capacity	1m3/h	2m3/h	3m3/h	5 m3/h	7 m3/h	8 m3/h	12 m3/h
Diameter Of Pipe	Φ89	Φ102	Φ114	Φ141	Φ159	Φ168	Φ219
Total Power	0.4KW	0.4KW	0.55KW	0.75KW	0.75KW	0.75KW	1.1KW
Total Weight	45kg	50kg	60kg	70kg	80kg	90kg	120kg
Thickness Of Pipe	2.0mm	2.0mm	2.0mm	2.0mm	3.0mm	3.0mm	3.0mm
Outer Dia.Of Screw	Φ75mm	Φ88mm	Φ100mm	Φ126mm	Φ141mm	Φ150mm	Φ200mm
Pitch	68mm	76mm	80mm	100mm	110mm	120mm	180mm
Thickness Of Pitch	2mm	2mm	2mm	2.5mm	2.5mm	2.5mm	3mm
Dia.Of Axis	Φ28mm	Φ32mm	Φ32mm	Φ42mm	Φ48mm	Φ48mm	Φ57mm
Thickness Of Axis	3mm	3mm	3mm	3mm	4mm	4mm	4mm

Power Supply:3P AC208-415V 50/60Hz Conveying Length:Standard 0.8M,0.4~6M Could Be Designed And Manufactured.
Fully Stainless Steel Structure,Contact Parts SS304;
Remark: Other Charging Capacity Could Be Designed And Manufactured.

Deploy List
Motor:Able(Chinese brand)
Gear Reducer:Shanghai Saini,Ratio:1:10

Model	AugEle-S2 -1K	AugEle-S2 -2K	AugEle-S2 -3K	AugEle-S2 -5K	AugEle-S2 -7K	AugEle-S2 -8K	AugEle-S2 -12K
Charging Capacity	1m3/h	2m3/h	3m3/h	5 m3/h	7 m3/h	8 m3/h	12 m3/h
Diameter Of Pipe	Φ89	Φ102	Φ114	Φ141	Φ159	Φ168	Φ219
Total Power	0.4KW	0.4KW	0.55KW	0.75KW	0.75KW	0.75KW	1.5KW
Total Weight	75kg	80kg	90kg	100kg	110kg	120kg	150kg
Hopper Volume	150L	150L	150L	150L	150L	150L	150L
Thickness Of Hopper	1.5mm	1.5mm	1.5mm	1.5mm	1.5mm	1.5mm	1.5mm
Thickness Of Pipe	2.0mm	2.0mm	2.0mm	2.0mm	3.0mm	3.0mm	3.0mm
Outer Dia.Of Screw	Φ75mm	Φ88mm	Φ100mm	Φ126mm	Φ141mm	Φ150mm	Φ200mm
Pitch	68mm	76mm	80mm	100mm	110mm	120mm	180mm
Thickness Of Pitch	2mm	2mm	2mm	2.5mm	2.5mm	2.5mm	3mm
Dia.Of Axis	Φ28mm	Φ32mm	Φ32mm	Φ42mm	Φ48mm	Φ48mm	Φ57mm
Thickness Of Axis	3mm	3mm	3mm	3mm	4mm	4mm	4mm

Power Supply:3P AC208-415V 50/60Hz Hopper Volume:Standard 150L,50~2000L Could Be Designed And Manufactured.
Conveying Length:Standard 0.8M,0.4~6M Could Be Designed And Manufactured.
Fully Stainless Steel Structure,Contact Parts SS304;
Remark: Other Charging Capacity Could Be Designed And Manufactured.

Deploy List
Motor:Able(Chinese brand)
Gear Reducer:Shanghai Saini,Ratio:1:10

Vibrating Motor:Oli-Wolong,Power:30W
