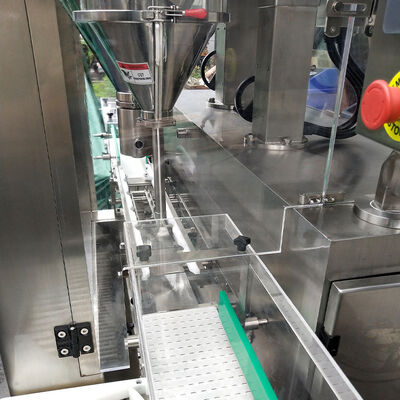

Name: Cocoa Spices Automatic Powder Filling Machine 83L Salt Sugar Milk
Brand: LTPM CHINA
SKU: DoubFill-Series
Rating: 4.7 (178 reviews)

Home > products > Automated Packaging Machine >

Cocoa Spices Automatic Powder Filling Machine 83L Salt Sugar Milk

Salt Sugar Powder Auger Filler Machine

83L Automatic Powder Filling Machine

Cocoa Spices Automatic Powder Filling Machine

Place of Origin:

Zhejiang Province,China

Brand Name:

LTPM CHINA

Certification:

CE, GMP, SGS, BV

Model Number:

DoubFill-Series

Request A Quote

Cocoa Spices Automatic Powder Filling Machine 83L Salt Sugar Milk

Product Details

Filling Accuracy:

±0.2%

Filling Speed:

50 ~ 70 Bottles Per Min

Compressed Air:

6 Kg/cm2 0.05m3/min

Packing Precision:

100~500g, ≤±1%;500~2000g, ≤±0.5%

Total Power:

2.6Kw

Power Supply:

3P AC208 - 415V 50/60Hz

Overall Dimension:

2000*1050*2030mm

Hopper Volume:

83L

Pouch 70Bags/Min 0.7Mpa Weigh Filler Packaging Machine

Get Best Price

Video

3.0Kw Puffed Food Multihead Weigher Packing Machine

Get Best Price

Video

Honey Blister Packing Machine 50ml Sustainable Easy Snap Type

Get Best Price

150mm Automated Packaging Machine

Get Best Price

86-0577-65158955

info@chinaleadtop.com

86-0577-65158944

Contact Now

Product Description

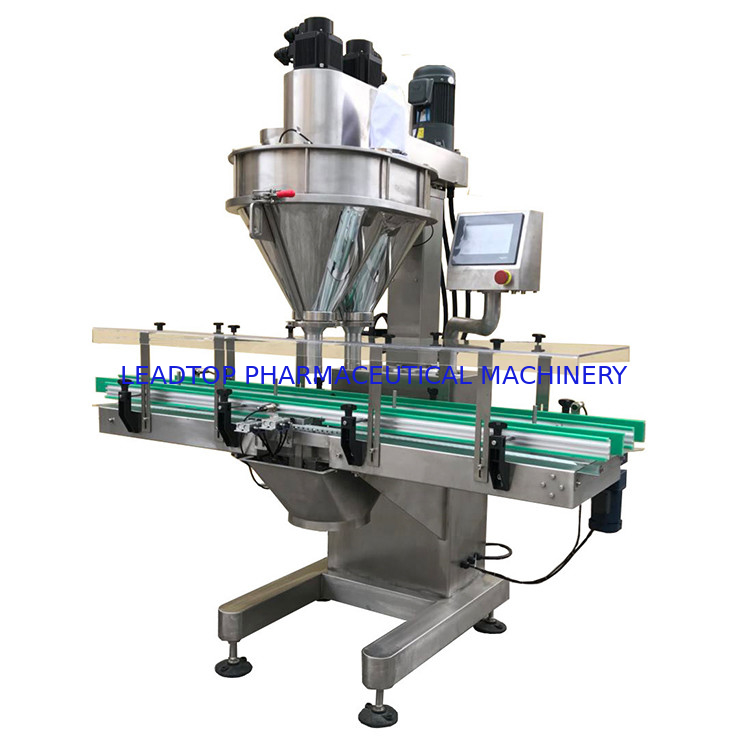

This Machine Is a Complete, Economical Solution To Your Filling Production Line Requirements.Can Measuring And Filling Powder And Granular. It Consists Of The Two Filling Head, An Independent Motorized Chain Conveyor Mounted On a Sturdy, Stable Frame Base, And All Necessary Accessories To Reliably Move And Position Containers For Filling, Dispense The Required Amount Of Product, Then Quickly Move The Filled Containers Away To Other Equipment In Your Line (e.g., Cappers, Labelers, Etc.).It Fits More To The Fluidic Or Low-Fluidity Materials, Like Milk Powder, Albumen Powder, Pharmaceuticals, Condiment, Solid Drink, White Sugar, Dextrose, Coffee, Agriculture Pesticide, Granular Additive, And So On.

Main Features1.Stainless Steel Structure; The Quick Disconnecting Hopper Could Be Washed Easily Without Tools. 2.Servo Motor Drive Screw.

3.PLC, Touch Screen And Weighing Module Control. 4.To Save All Product’s Parameter Formula For Later Use, Save 10
5.Replacing The Auger Parts, It Is Suitable For Material From Super Thin Powder To Granule.
6.Include Handwheel Of Adjustable Height.

Machine Parameters

			Model

			DoubFill-2-S

			DoubFill-2-M

			Working position

			2 lines + 2 filler

			2 lines + 2 filler

			Filling weight

			1 - 500g

			1 - 2000g

			Filling Accuracy

			≤ 100g, ≤±1.5%；100 – 500g, ≤±1%

			≤ 100g, ≤±1.5%；100 – 500g, ≤±1%;500 – 2000g, ≤±0.5%

			Filling Speed

			50 – 70 bottles per min

			Power Supply

			3P AC208-415V 50/60Hz

			Air Supply

			6 kg/cm2 0.05m3/min

			Total power

			2.0Kw

			2.6Kw

			Total Weight

			240kg

			400kg

			Overall Dimensions

			1185×940×1930mm

			2000×1050×2030mm

			Hopper Volume

			51L

			83L

Machine Details
This Type Can Do Measuring And Filling Work. Due To The Special Professional Design, It Is Suitable For The Fluidic Or Low-Fluidity Materials, Like Milk Powder, Albumen Powder, Rice Powder, Coffee Powder, Solid Drink, Condiment, White Sugar, Dextrose , Food Additive, Fodder, Pharmaceuticals, Agriculture Pesticide, And So On.

Machine Parameters

			Model

			AugFill-11S

			AugFill-15S

			AugFill-25S

			AugFill-50S

			AugFill-75S

			AugFill-100S

			Hopper

			Split Hopper 11L

			Split Hopper 15L

			Split Hopper 25L

			Split Hopper 50L

			Split Hopper 75L

			Split Hopper 100L

			Packing Weight

			0.5 - 20g

			0.5 - 20g

			1 - 200g

			10 - 2000g

			10 - 5000g

			100g - 15kg

			Packing Weight

			0.5 - 5g, ≤±3-5%; 5 – 20g, ≤±2%

			0.5 - 5g, ≤±3-5%; 5 – 20g, ≤±2%

			1-10g,≤±3-5%; 10 - 100g, ≤±2%; 100 – 200g, ≤±1%

			<100g,<±2%;100 ~ 500g, <±1%;＞500g, <±0.5%

			<100g,<±2%;100 ~ 500g, <±1%;＞500g, <±0.5%

			<100g,<±2%;100 ~ 500g, <±1%;＞500g, <±0.5%

			Filling Speed

			40 – 80 Times Per Min

			40 – 80 Times Per Min

			40 – 80 Times Per Min

			20 – 60 Times Per Min

			10 – 30 Times Per Min

			3 – 6 Times Per Min

			Power Supply

			3P Ac208-415V 50/60Hz

			Total Power

			0.95 Kw

			0.95 Kw

			1.2 Kw

			1.9 Kw

			3.75 Kw

			3.75 Kw

			Total Weight

			100kg

			100kg

			140kg

			220kg

			280kg

			350kg

			Overall Dimensions

			561×387×851mm

			561×387×931mm

			648×506×1025mm

			878×613×1227mm

			1141×834×1304mm

			1141×834×1304mm

Features1. The Split Hopper Could Be Washed Easily Without Tools. 2. Servo Motor Drive Screw.
3.Stainless Steel Structure,Contact Parts Ss304
4.Include Handwheel Of Adjustable Height.
5.Replacing The Auger Parts, It Is Suitable For Material From Super Thin Powder To Granule.
Air Holes
Observation Glass

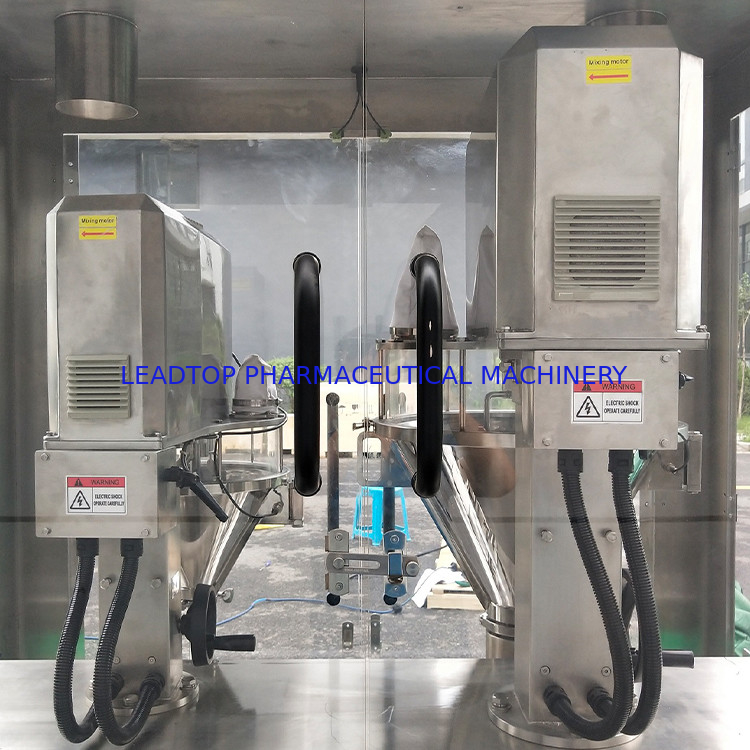

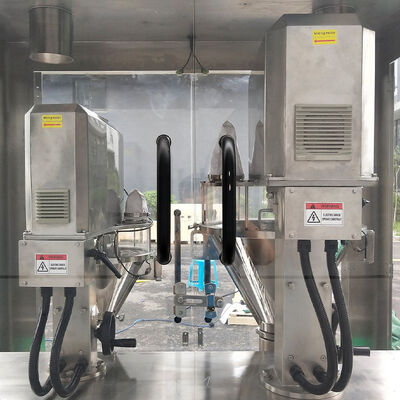

Feeding And Stirring
Feeding Port
Feeding Motor
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc. - LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models. - LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
Our Workshop
FAQ
Q: What is the warranty period for your machine? A: 5 years free warranty.

Q: Are you a real factory/manufacturer?

A: Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line.

Q: Is engineer available to serve oversea?

A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q: How can we make sure about the machine quality after placing the order?

A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.

Q: We are afraid you won't send us the machine after we send you the money?

A: We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine qulaity and delivery are guaranted.
