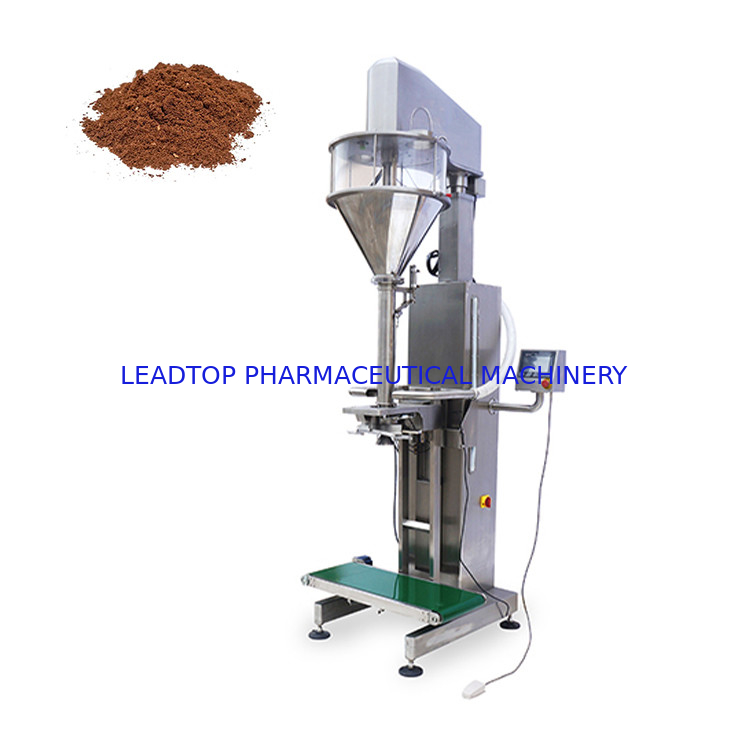

100L Small Bottle Pepper Powder Coffee Acrylic Milk Auger Filling Equipment

100L Small Bottle Pepper Powder Coffee Acrylic Milk Auger Filling Equipment

Auger Pepper Powder Filling Equipment

100L Small Bottle Powder Filling Equipment

Milk Powder Filler Auger Filling Equipment

Place of Origin:

Zhejiang Province,China

Brand Name:

LTPM CHINA

Certification:

CE, GMP, SGS, BV

Model Number:

LTWGF-Series

Contact Us

Request A Quote
Product Details
Filling Accuracy:
±0.2%
Machinery Capacity:
100BPH
Compressed Air:
6kg/cm3 0.1cbm/min
Packing Precision:
1~20kg, ±0.2%, >20kg, ±0.1%
Total Power:
2.37Kw
Power Supply:
3P AC208 - 415V 50/60Hz
Overall Dimension:
1125*975*2500mm
Hopper Volume:
100L
Product Description

This Model Is Designed Mainly For The Fine Powder Which Easily To Spout Dust And High-Accuracy Packing Requirement. Based On The Feedback Sign Given By Below Weight Sensor, This Machine Do Measuring, Two-Filling , And Up-Down Work ,Etc. It Is Specially Suitable For Filling Additives, Carbon Powder, Dry Powder Of Fire Extinguisher, And Other Fine Powder Which Needs High Packing Accuracy.

100L Small Bottle Pepper Powder Coffee Acrylic Milk Auger Filling Equipment 0



Machine Parameters
Model
LTWGF-B50
LTWGF-B100
Packing Weight
100g - 10kg
1kg - 25kg
Packing Accuracy
100-1000g, ≤±2g; ≥1000g, ≤±0.1-0.2%
1 – 20kg, ≤±0.1-0.2%, >20kg, ≤±0.05-0.1%
Packing Speed
5 - 10 times per min
2 - 6 time per min
Power Supply
3P AC208 - 415V 50/60Hz
Air Supply
6kg/cm2 0.1m3/min
Total Power
2.65 Kw
3.62Kw
Total Weight
350kg
500kg
Overall Dimension
1135×890×2500mm
1125×975×3230mm
Hopper Volume
50 L
100 L

Features

1.Pneumatic Bag Clamper And Platform Equip With Load Cell To Handle Two Speeds Filling As Per Preset Weight. Featured With High Speed ​​And Accuracy Weighing System To Guarantee The High Packaging Accuracy.
2.Servo Motor Does Up-Down Work Driving With Tray Together, The Up-Down Rate Can Be Set Randomly, No Dust Spouts Out When Filling.
3.With Servo Motor And Servo Drive Controlled Auger, Perform Stably, And With High Accuracy.
4.PLC Control, Touch Screen Display, Easy To Operate.
5.Made Of Stainless Steel, Combined Hopper Or Split Hopper, Easily To Be Cleaned.
6.With Handwheel To Adjust The Height , Easy To Fill Many Kinds Of Weight.
7.With Fixed Screw Installation, The Material Quality Won’t Be Effected.

Process:

Put Bag/Can(Container) On The Machine → Container Raise → Fast Filling, Container Declines → Weight Reaches The Pre-Set Number → Slow Filling → Weight Reaches The Goal Number → Take The Container Away Manually
Note: The Pneumatic Bag-Clamp Equipment And Can-Hold Set Is Optional ,They Are Suitable For Can Or Bag Filling Separately.
Two Filling Modes Can Be Inter-Changeable,Fill By Volume Or Fill By Weight.Fill By Volume Featured With High Speed ​​But Low Accuracy.Fill By Weight Featured With High Accuracy But Low Speed.
Product Details
100L Small Bottle Pepper Powder Coffee Acrylic Milk Auger Filling Equipment 1

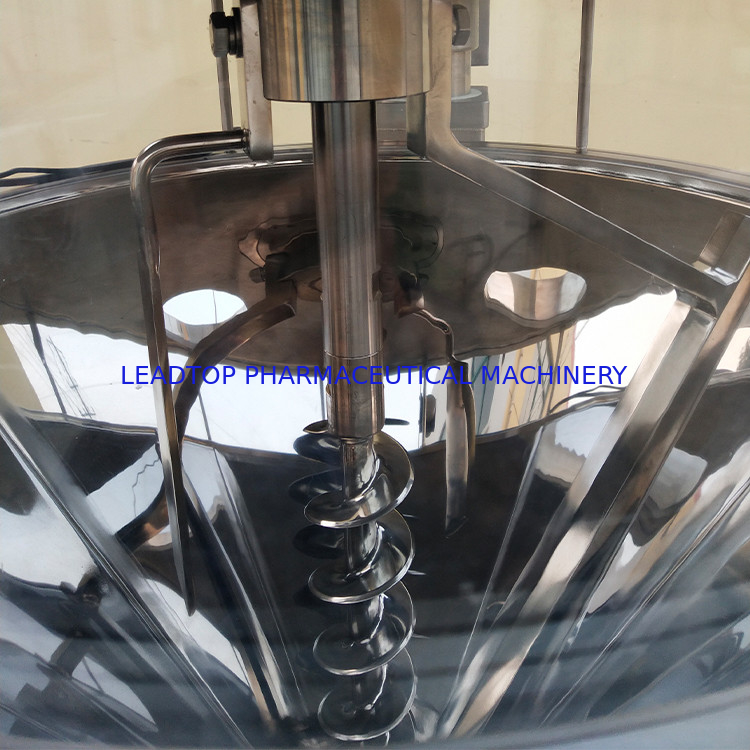

Feeding Screw:
The Rotating Screw Can Make The Powder Material Unloading More Smoothly

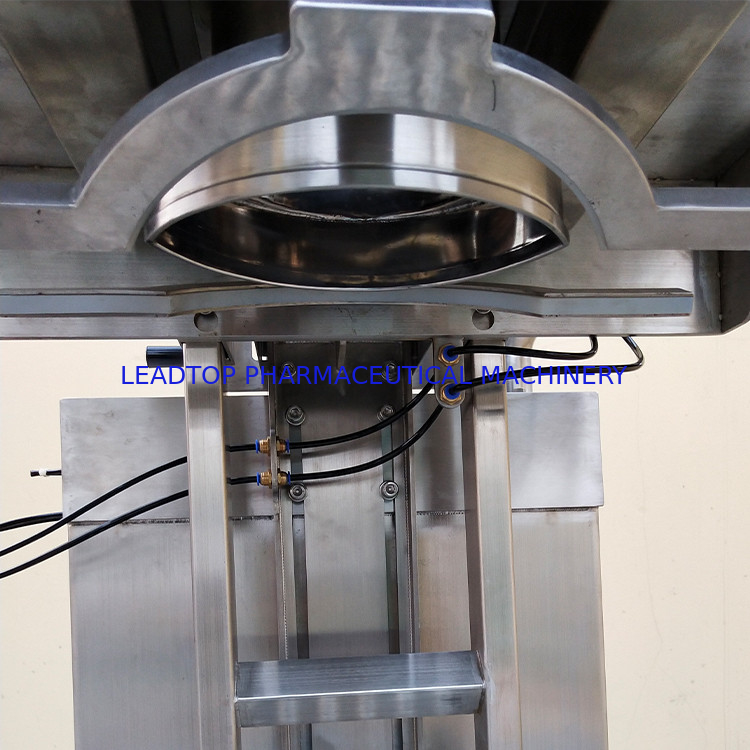

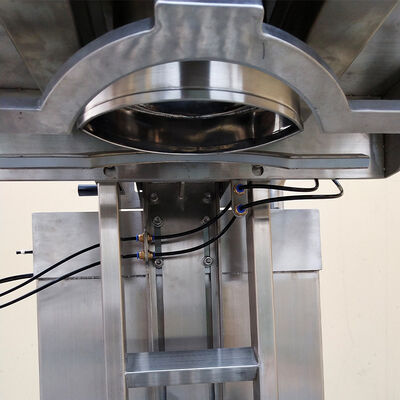

Outlet:
Made Of Stainless Steel, There Are Grooves At The Outlet, And Other Shapes Of Outlets Can Be Installed According To Different Bottle Types
100L Small Bottle Pepper Powder Coffee Acrylic Milk Auger Filling Equipment 2
100L Small Bottle Pepper Powder Coffee Acrylic Milk Auger Filling Equipment 3

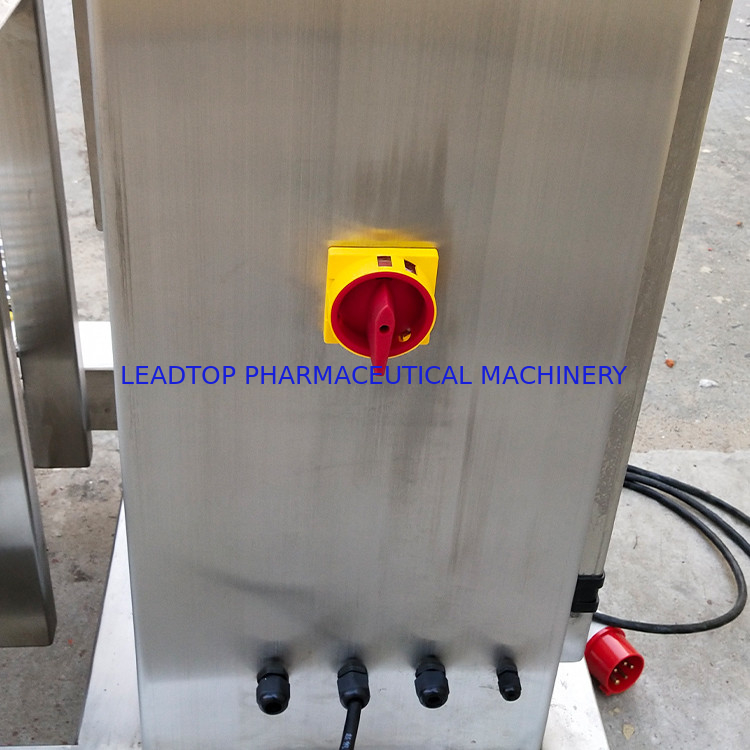

Emergency Stop Button:
If There Is Any Accident, You Can Turn This Button To Stop The Machine Directly

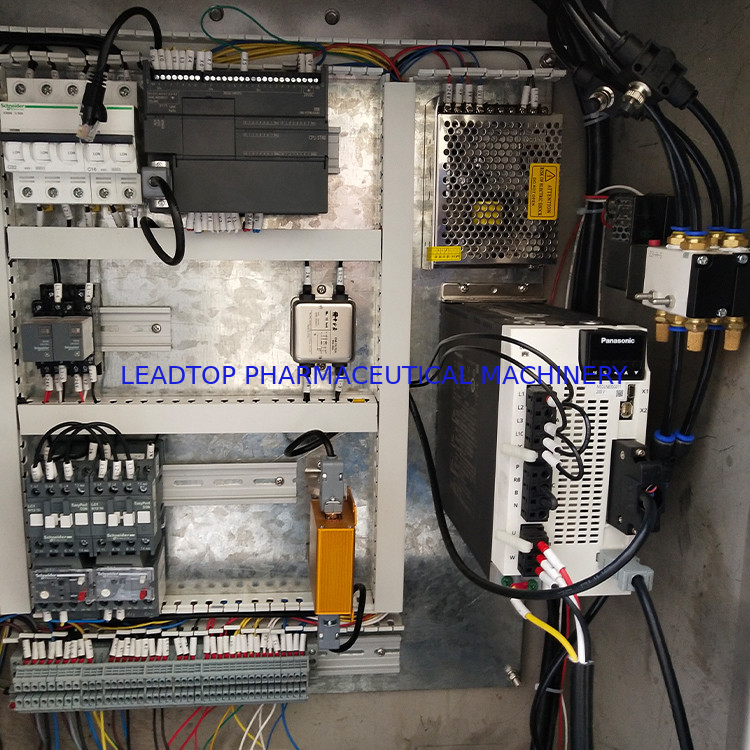

Electric Control Cabinet:
The Circuit Layout Is Simple, And Different Electrical Platforms Can Be Replaced According To Customer Requirements, Such As Siemens, Schneider, Etc.
100L Small Bottle Pepper Powder Coffee Acrylic Milk Auger Filling Equipment 4
Company Profile
100L Small Bottle Pepper Powder Coffee Acrylic Milk Auger Filling Equipment 5
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc. - LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models. - LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
100L Small Bottle Pepper Powder Coffee Acrylic Milk Auger Filling Equipment 6
Our Workshop
FAQ
Q: What is the warranty period for your machine?
A: 5 years free warranty.

Q: Are you a real factory/manufacturer?
A: Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line.

Q: Is engineer available to serve oversea?
A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q: How can we make sure about the machine quality after placing the order?
A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.

Q: We are afraid you won't send us the machine after we send you the money?
A: We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine qulaity and delivery are guaranted.
