Dry Protein Powder Automated Packaging Machine Auger Filling 60Hz

Brand Name:	LTPM CHINA
Model Number:	LTWGF-Series
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, D/A, D/P, T/T, MoneyGram
Supply Ability:	45 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang Province,China

Certification:

CE, GMP, SGS, BV

Filling Speed:

1- 8 Times Per Min

Packing Weight:

1kg - 50kg

Compressed Air:

6kg/cm3 0.1cbm/min

Packing Precision:

1~20kg, ±0.2%, >20kg, ±0.1%

Total Power:

2.37Kw

Power Supply:

3P AC208 - 415V 50/60Hz

Overall Dimension:

1125*975*2500mm

Hopper Volume:

100L

Packaging Details:

Export Standard Wooden Case

Supply Ability:

45 sets/month

Highlight:

Auger Filling Packaging Machine

60Hz Protein Powder Filling Machine

Dry Protein Powder Auger Filling Equipment

Product Description

Weighing Powder Filling Machine Is Divided Into: LTWGF-W25, LTWGF-W50, LTWGF-W75S, LTWGF-W100S, LTWGF-B50, LTWGF-B100 And Other Models.

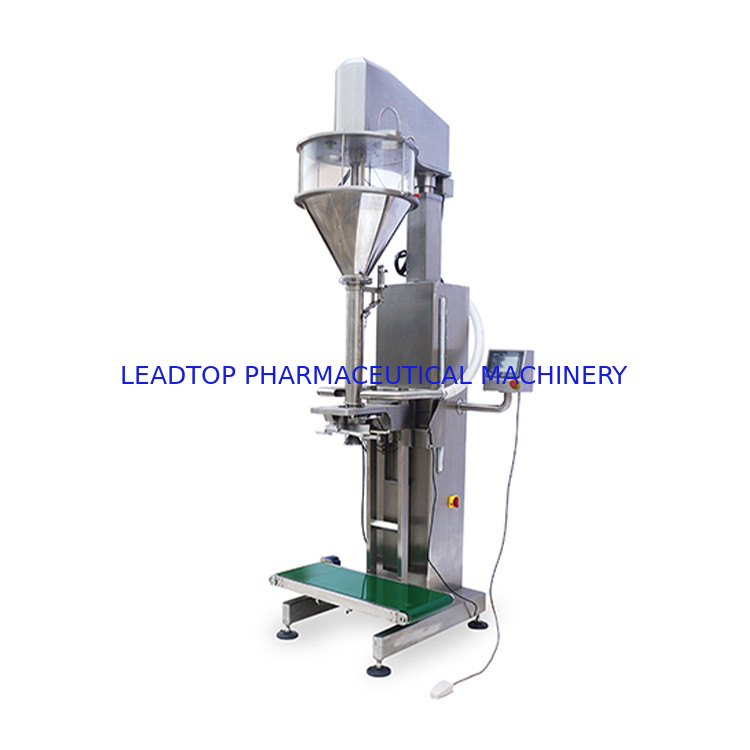

Dry Protein Powder Automated Packaging Machine Auger Filling 60Hz 0

This Series Packing Machines Can Handle Weighing, Filling Functions Etc. Featured With Real-Time Weighing And Filling Design These Machine Can Be Used To Pack High Accuracy Required, With Uneven Density, Free Flowing Or Non Free Flowing Powder Or Small Granule.I.e. Protein Powder ,Food Additive, Solid Beverage, Sugar, Toner, Veterinary And Carbon Powder Etc.

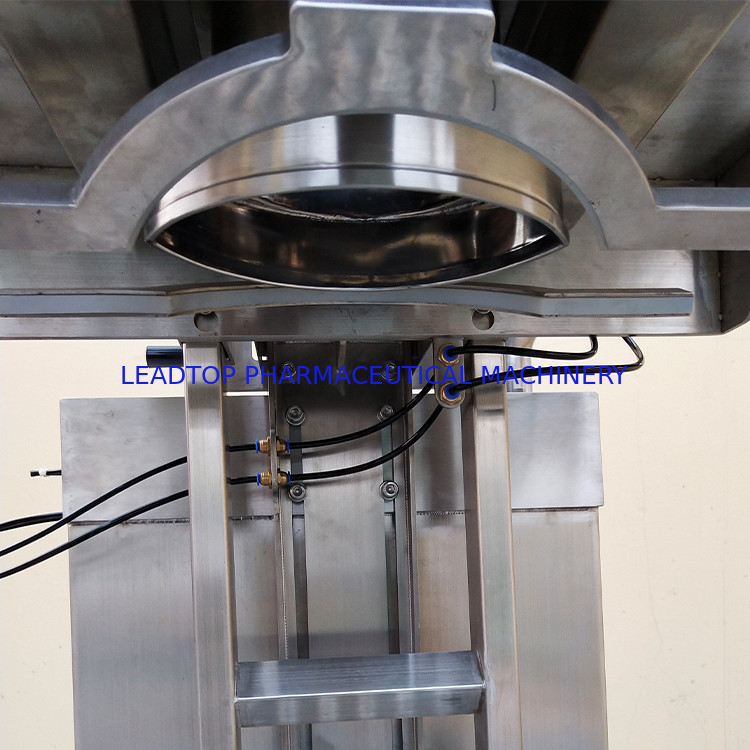

Dry Protein Powder Automated Packaging Machine Auger Filling 60Hz 1

Machine Parameters

Model	LTWGF-W25	LTWGF-W50	LTWGF-W75S	LTWGF-W100S
Packing Weight	1g - 900g	10g - 5000g	10g - 10kg	1kg - 50kg
Packing Accuracy	<100g,≤±1-2%; 100-900g, ≤±1-2g;	100-1000g, ≤±2g; ≥1000g, ≤±0.1-0.2%	100-1000g,≤±2g; ≥1000g, ≤±0.1-0.2%	1 – 20kg, ≤±0.1-0.2%, >20kg, ≤±0.05-0.1%
Packing Speed	8 - 15 times per min	5 - 12 times per min	5 - 12 times per min	1- 8 times per min
Power Supply	3P AC208 - 415V 50/60Hz
Compressed air	6kg/cm3 0.1cbm/min
Total Power	0.93Kw	1.4Kw	2.25Kw	2.37Kw
Total Weight	130kg	260kg	350kg
Overall Dimension	800×790×1900mm	1200×900×2200mm	1205×1010×2174mm	1125×975×2500mm
Hopper Volume	25L	50L	75L	100L

Features

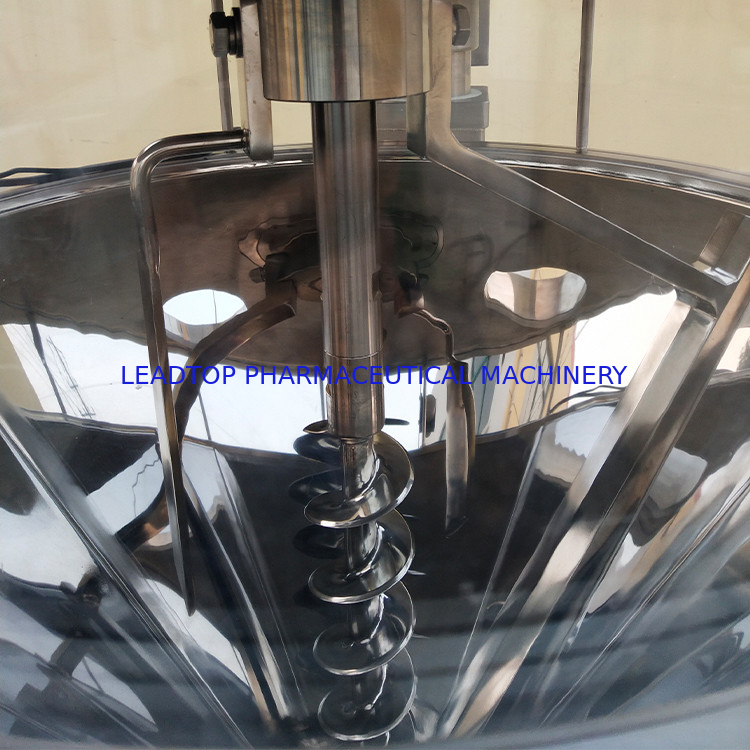

1.Stainless Steel Structure; Quick Disconnecting Or Split Hopper Could Be Washed Easily Without Tools. 2. Servo Motor Drive Screw.

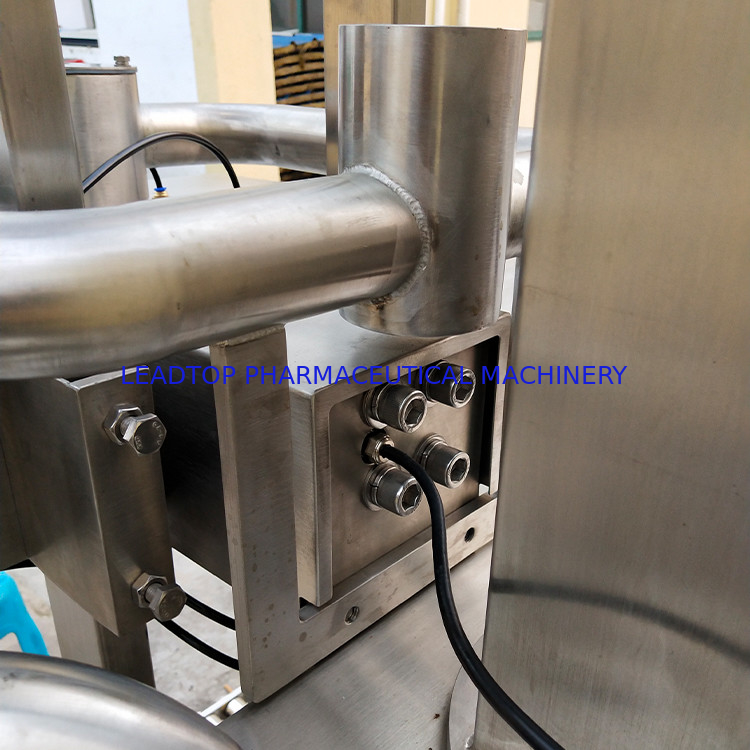

3.Pneumatic Bag Clamper And Platform Equip With Load Cell To Handle Two Speeds Filling As Per Preset Weight. Featured With High Speed And Accuracy Weighing System.

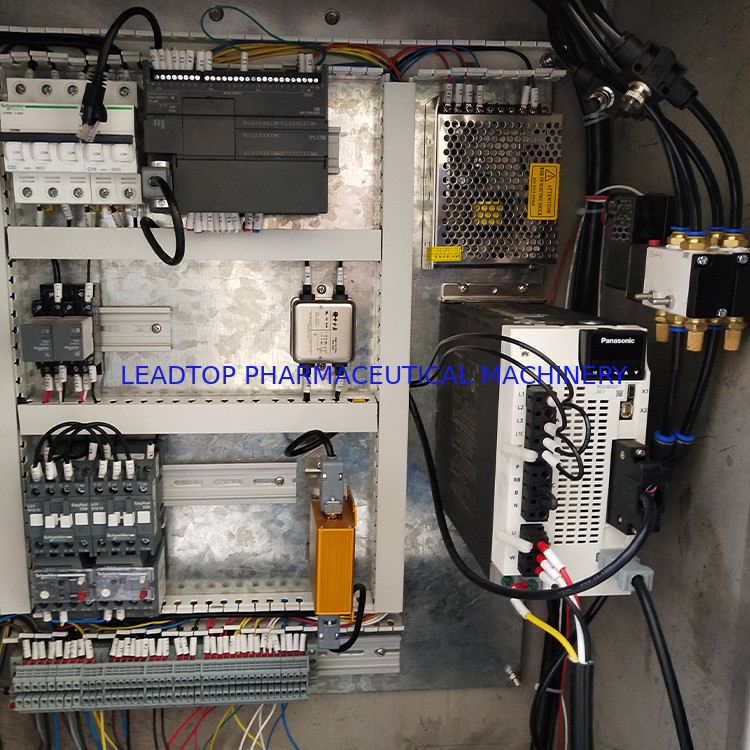

4.Plc Control, Touch Screen Display, Easy To Operate.

5.Two Filling Modes Can Be Inter-Changeable, Fill By Volume Or Fill By Weight. Fill By Volume Featured With High Speed But Low Accuracy. Fill By Weight Featured With High Accuracy But Low Speed.

6. Save The Parameter Of Different Filling Weight For Different Materials. To Save 10 Sets At Most.

7.Replacing The Auger Parts, It Is Suitable For Material From Super Thin Powder To Granule.
