100L Lotion / Cream Vacuum Emulsifying Machine For Homogenizing Mixing

Lotion Making Vacuum Emulsifying Machine For Homogenizing Mixing 100L Capacity

Quick Detail:

Description:

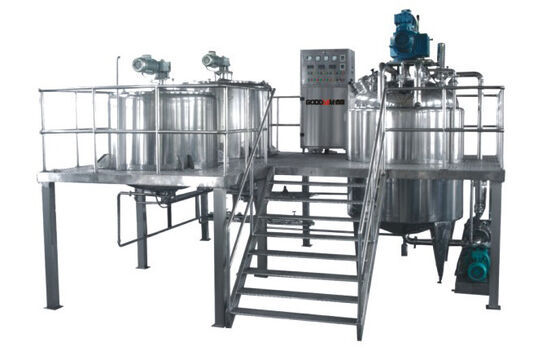

1. The main pot of LTRZ-100 is composed of the cut-off mixing pot, cut-off mixer unit, circulating system and the stirring system etc.
2. The materials are sucked into emulsifying pot by transportation pipe under the vacuum state, or it also can be put from the feed inlet.

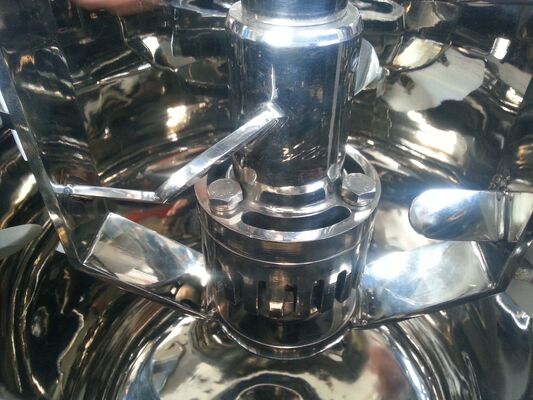

3. The material are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring materials from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, fold. Then the material is sent to the cut-off mixing unit where they are again cut off, broken and stirring by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200um~2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material. The ex-circulating system can make the homogenizing more strong. The material within the pot can be give off only under the state of change direction of the control valves.

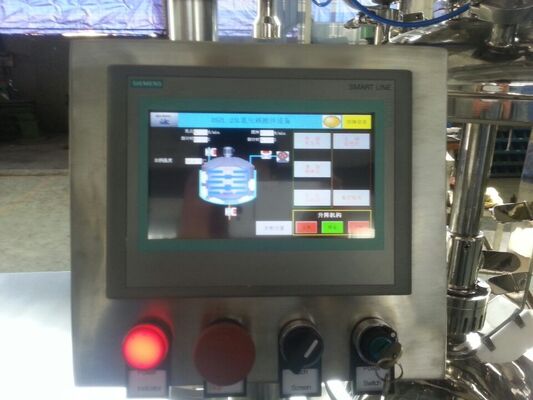

4. The temp controller on operation panel can adjust the temp of the homogenizer pot; The homogenizer stirring and the blade stirring cab be used simultaneously or dividedly; The homogenizer stirring time can be set by the custom according to the different material. After finished the whole procession please rise the pot cover for the clearing.

Applications:

1. Pharmaceutical Industry: Lotion, Cream, Paste, Suspend Liquid etc.
2. Food: Milk, Ketchup, Yogurt, etc.
3. Cosmetics: Lotion, Cream, Toothpaste, Oily Liquid, Suspend Liquid etc.

Specifications:

Competitive Advantage:

1. German Imported Siemens Controlling System
2. Steam and electricity heating are both available for the machine
3. The machine comes with safety protection system while running.
4. One time processing high shearing homogenizing head.
