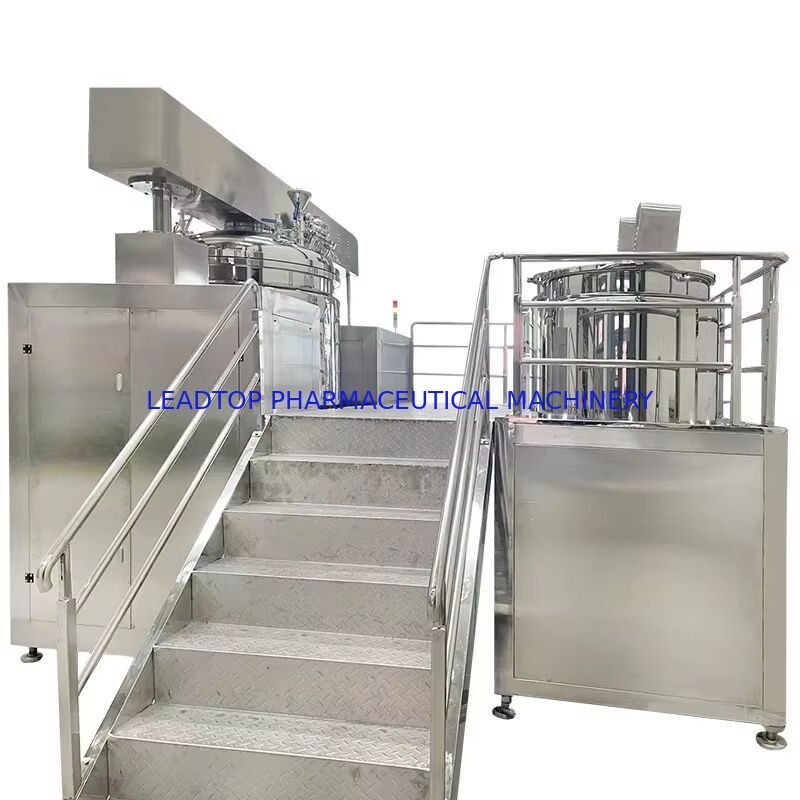

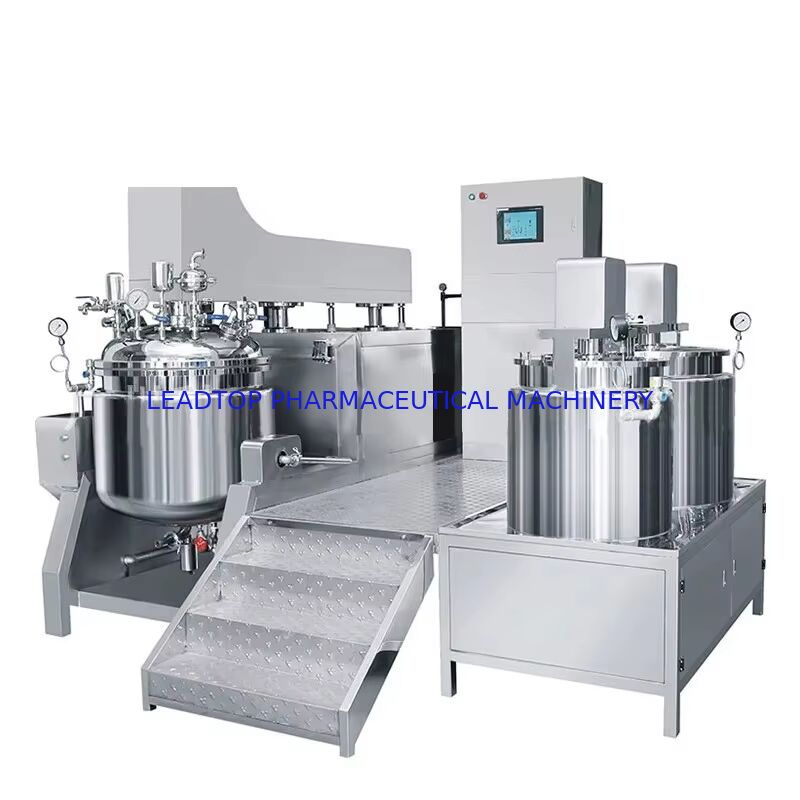

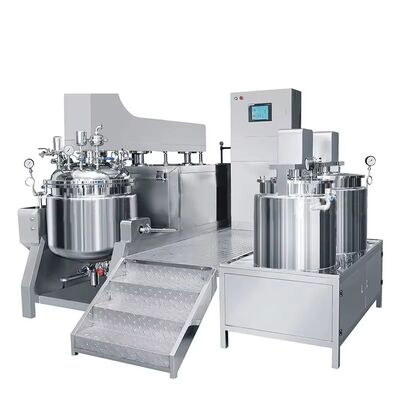

Industrial 100L-1000L Stainless Steel Electric Steam Mixing Tank Homogenizing Emulsifier Machine

Brand Name:	LTPM CHINA
Model Number:	LTRZ-Series
MOQ:	1Set
Payment Terms:	T/T, L/C, D/P, Cash, Credit Card, Paypal
Supply Ability:	25sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,SGS

Mixer Type:

Homogenizer

Application:

Viscous Fluid, Medicine Processing, Chemicals Processing

Voltage:

380V 50HZ

Contact Part Material:

SUS316

Using Life:

More Than 15 Years

Pot Working Pressure:

-0.090 Mpa

Jacket Working Pressure:

0.2Mpa

Spare Parts:

One Year Spare Parts And Tools

Packaging Details:

Export Standard Wooden Case

Supply Ability:

25sets/month

Highlight:

Stainless steel electric steam tank

Industrial homogenizing emulsifier machine

100L-1000L mixing emulsifying machine

Product Description

DESCRIPTION

1. Top wall scraping mixing adopts the fre-quency converter for speed adjustment, so thathigh quality products of differentprocesses can be met according to customerrequirements.

2.Bottom high-speed homogenizer canpowerfully mix solid and liquid raw materials andcan rapidly dissolve manyindissoluble materialssuch as AÉS , AESA , LSA , etc, during the liquiddetergent production process so as to saveenergy consumpion and shorten productionperiod.

3. The pot body is welded by three-layerstainless steel plate.The tank body and the pipesadopt mirror polishing, which fully conforms toGMP requirements.

4.According to customer requirement, thetank can heat and cool materials. The heatingway including steam heating and electric heating.5.Easy discharge, bottom direct dischargeor by transfer pump

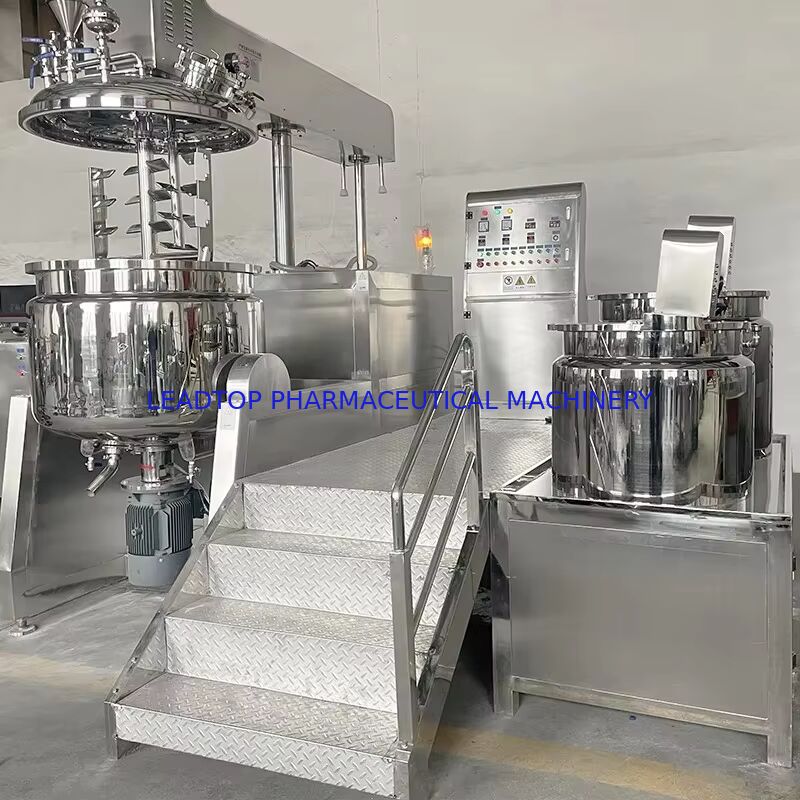

Cover with mixing system

Material contact 316L, with Teflon scraper, with height limit, more safe. with LED light, sight mirror, CIP cleaning ball, vacuum gauge, safty valve, aiar filter, essence inlet, product inlet

Heating

Can choose steam heating or electric heating or no heating

Have fuel oil steam generator, nature gas steam generator and electric steam generator

Electric control box SS304

With english and Chinese Language, can do other lanuages according to customers demands.French Schneider or Delixi eletric parts, Omron temperature display

Hydraulic dumping for main tank, with water and oil tanks

With hydraulic dumping, can discharge product quickly.Water and oil tanks are option, customer can choose with water tank with oil tank or no water oil tanks, material contact 316L other SS304

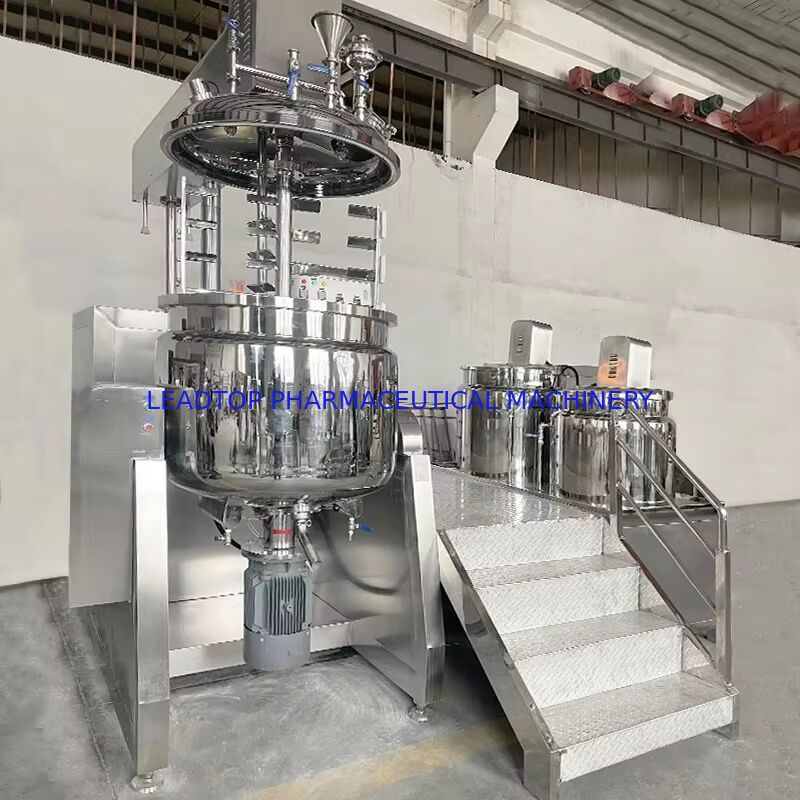

Main tank bottom homogenizer

With bottom high speed homogenizer, 0-3500rpm.USA ABB motor or Germany Siemens motor, Taiwan Delta inverter. Homogenizer cooled by tap water, durable, long time using.

Water oil tanks bottom dispenser

Material contact 316L other SS304, high speed 1440rpm,With baffle plate,USA ABB motor or Germany Siemens motor.
