    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE
    Model Number: LTRG-30A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiation
    Packaging Details: Export Standard Wooden Case
    Delivery Time: 25days
    Payment Terms: L/C, T/T
    Supply Ability: 15Set/Month
    Contact Now
    Detailed Product Description

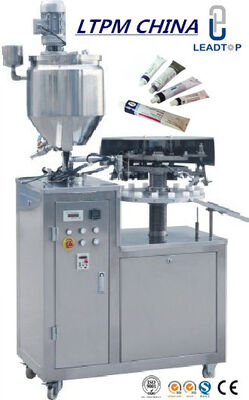

    Cream Semi Automatic Tube Filling and Sealing Machine For Aluminum Tube





    Quick Detail:





    Air Consumption: < 30 dm3/min

    Filling Volume: 50ml/100ml/200ml

    Model: LTRG-30A

    Filling Speed: 20~30 tube/min

    Dimension: 1230mm*700mm*1400mmV

    Weight: 600kg





    Description:





    1. The adjustment accuracy is higher and the stability is good.

    2. High speed, high efficiency, low noise, convenient operation and easy maintenance.

    3. The filling volume is convenient and easy to adjust.

    4. The machine is characterized by mechanism structure.

    5. Such machine is made of high-quality stainless steel (SUS304, SUS316L)





    Applications:





    This machine is made of stainless steel. The working processes are controlled by the buttons. Such processes include manual tube feeding, 8 tube-position automatic turning, ration filling, automatic cutting and heating & sealing. All the processes are button controlled by the cylinder. The filling volume is easy to adjust and the filling speed is tunable. This machine is used to fill and seal all kinds of plastic and laminated tubes. The appearance of the sealing is neat and firm. According to different materials, we can choose the appropriate heating system.





    Specifications:





    Dimension 1230mm*700mm*1400mm
    Weight 600kg
    Filling Speed 20~30 tube/min
    Filling Volume 50ml/100ml/200ml
    Power 400w*2 (heating sealing)
    Compressed Air Pressure 0.6~0.8Mpa
    Voltage AC220V±10% 50Hz
    Air Consumption < 30 dm3/min




    Competitive Advantage:


    1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
    2. We have 24hours hot line for Technical Support.
    3. We get 18hours internet line for technical support.
    4. Video camera in workshop to help you adjust and solve machine problem in working situation.
    5. We have Technical Support in below Foreign Cities:
    California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho

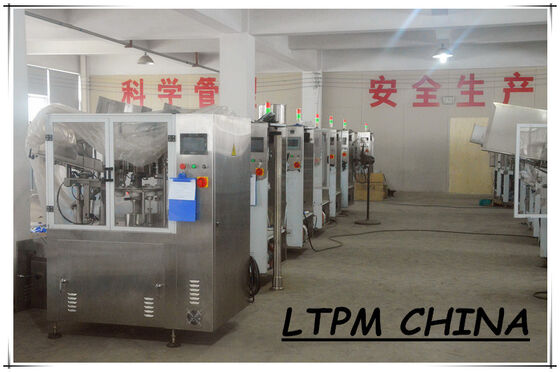

    Our Work Shop:





    Cream Semi Automatic Tube Filling and Sealing Machine For Aluminum Tube
