Cream Semi Automatic Tube Filling and Sealing Machine For Plastic Tube

Cream Semi Automatic Tube Filling and Sealing Machine For Plastic Tube

tube filling and sealing machine

tube filling sealing machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE

Model Number:

LTRG-30P

Contact Us

Request A Quote
Product Details
Product Description

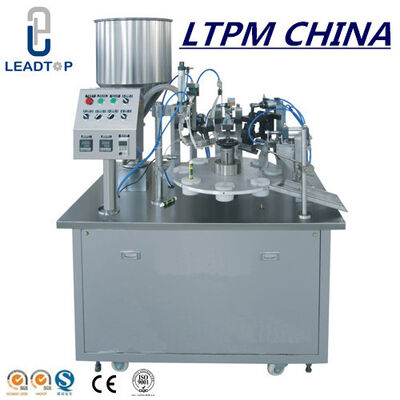

Cream Semi Automatic Tube Filling and Sealing Machine For Plastic Tube





Quick Detail:





Filling Volume: 50ml/100ml/200ml

Model: LTRG-30P

Air Consumption: < 30 dm3/min

Filling Speed: 20~30 tube/min

Dimension: 1230mm*700mm*1400mmV

Weight: 600kg





Description:





1. The machine is characterized by mechanism structure.

2. High speed, high efficiency, low noise, convenient operation and easy maintenance.

3. The filling volume is convenient and easy to adjust.

4. The adjustment accuracy is higher and the stability is good.

5. Such machine is made of high-quality stainless steel (SUS304, SUS316L)





Applications:

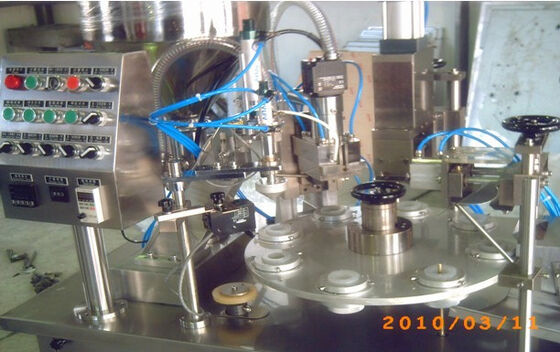

This machine is made of stainless steel. The working processes are controlled by the buttons. Such processes include manual tube feeding, 8 tube-position automatic turning, ration filling, automatic cutting and heating & sealing. All the processes are button controlled by the cylinder. The filling volume is easy to adjust and the filling speed is tunable. This machine is used to fill and seal all kinds of plastic and laminated tubes. The appearance of the sealing is neat and firm. According to different materials, we can choose the appropriate heating system.





Specifications:





Dimension 1230mm*700mm*1400mm
Weight 600kg
Filling Speed 20~30 tube/min
Filling Volume 50ml/100ml/200ml
Power 400w*2 (heating sealing)
Compressed Air Pressure 0.6~0.8Mpa
Voltage AC220V±10% 50Hz
Air Consumption < 30 dm3/min




Competitive Advantage:


1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho

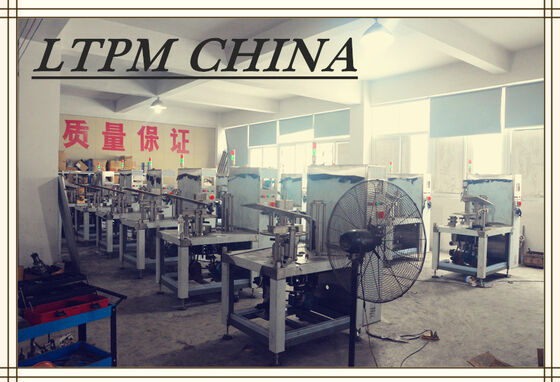

Our Work Shop:





Cream Semi Automatic Tube Filling and Sealing Machine For Plastic Tube 0
