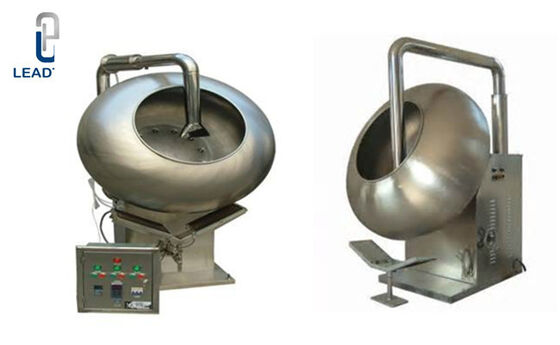

370W Dia 400mm Water Nut Sugar Coating Machine For Candy / Food Industry

370W Dia 400mm Water Nut Sugar Coating Machine For Candy / Food Industry

sugar coating machine

sugar coating equipment

Place of Origin:


Brand Name:

LTPM China



Model Number:


Contact Us

Request A Quote
Product Details
Product Description


Film Coating Machine Used For Candy Manufacturing Or Food Industry



Quick Detail:


Hot air outlet temperature:50-60℃

Motor Power:370w

Boiler rotating speed:46 r.p.m

Power of fan motor:40w

Production capacity: 2-5 Kg/time

Boiler diameter:400mm

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate

Model No.:SHL-400

Material: Stainless steel 304

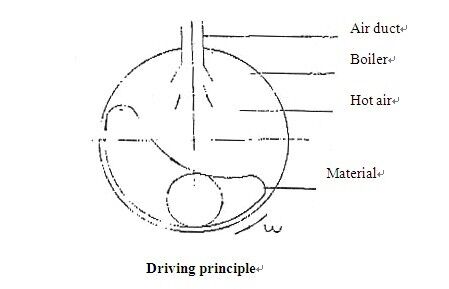

1. Boiler rotates clockwise and sprays syrup and mixed syrup materials on the chip in the boiler in multiple times, enabling the syrup-mixed material to be evenly coated on the chip and sugarcoated tablets to tumble in the boiler. Meanwhile hot air is blown into the boiler to dry the surface moisture on tablets so as to produce certified sugarcoating pills.

2. The machine enables tablets to be formed in optimal materials curve flow in reasonable shape and stable linear velocity so as to meet the technological requirements of coating sugar-coat.





Water nut type sugarcoating machine is mainly used to press shaped slice, pill and the coating of granules in pharmaceutical industry, and also used for candy manufacturing or coating in foodstuff industry.

Sugarcoated tablets after polishing coating have polished surface, which can prevent oxidation, damping or volatilization, in addition, it can envelop bad smell and enable the drug to be conveniently identified and slow dissolution in the intestines and stomach.





Model No SHL-400
Boiler diameter mm 400
Production capacity (Kg/time) 2-5
Clockwise angle α (adjustable) 15˚~45˚
Boiler rotating speed 46
Main motor 370W
Fan motor 40W
Electric oven wire power (Kw) 1.5
Hot air outlet temperature(℃) 50-60
Machine weight (kg) 120


Competitive Advantage:


1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho(Distributor)
