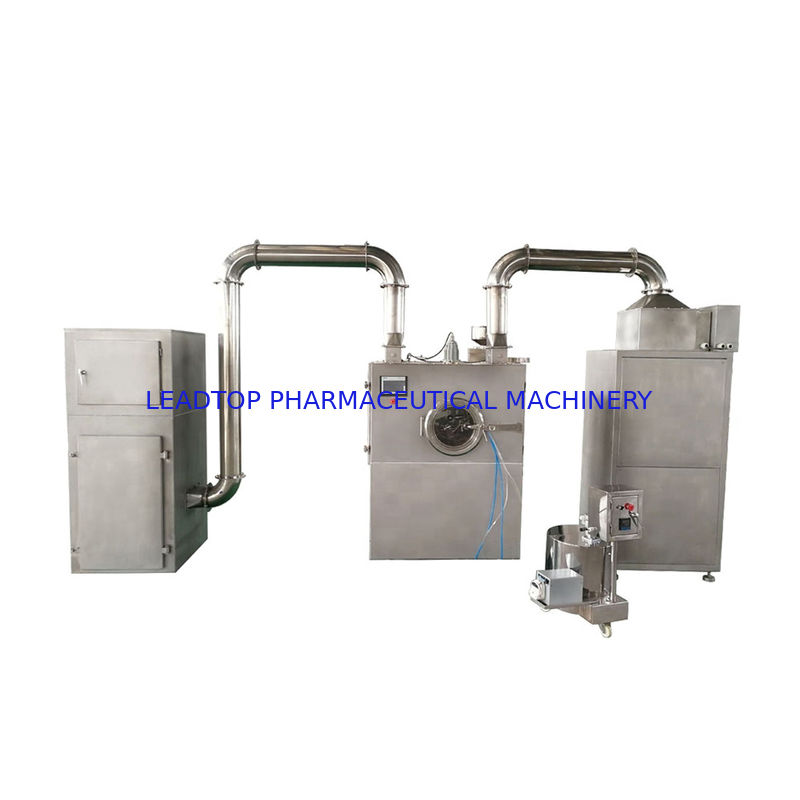

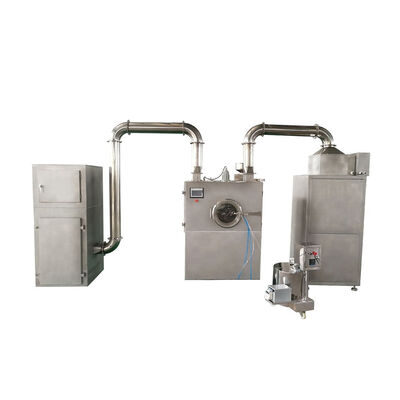

GMP 40Kg/Time Sugar Tablet Coating Machine 18rpm Shockproof
|Place of Origin:||China|
|Brand Name:||LTPM China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1set|
|Packaging Details:||Wooden Case|
|Delivery Time:||In 30 days after receiving the deposit|
|Payment Terms:||30% TT as deposit and 70% before shipping|
|Supply Ability:||25 sets/Month|
|Max. Tablet Volume:||40Kg/time||Sugar Coating Drum Speed:||2-18 R.p.m|
|Host Machine Motor Power:||1.1 Kw||Exhaust Blower Air Flow:||5268m3/h|
|Air Heater Temp.-adjust Range:||~ 80 ℃||Power:||2.8kw|
40Kg/Time Sugar Tablet Coating Machine,
Tablet Coating Machine 18rpm,
GMP Tablet Coating Machine

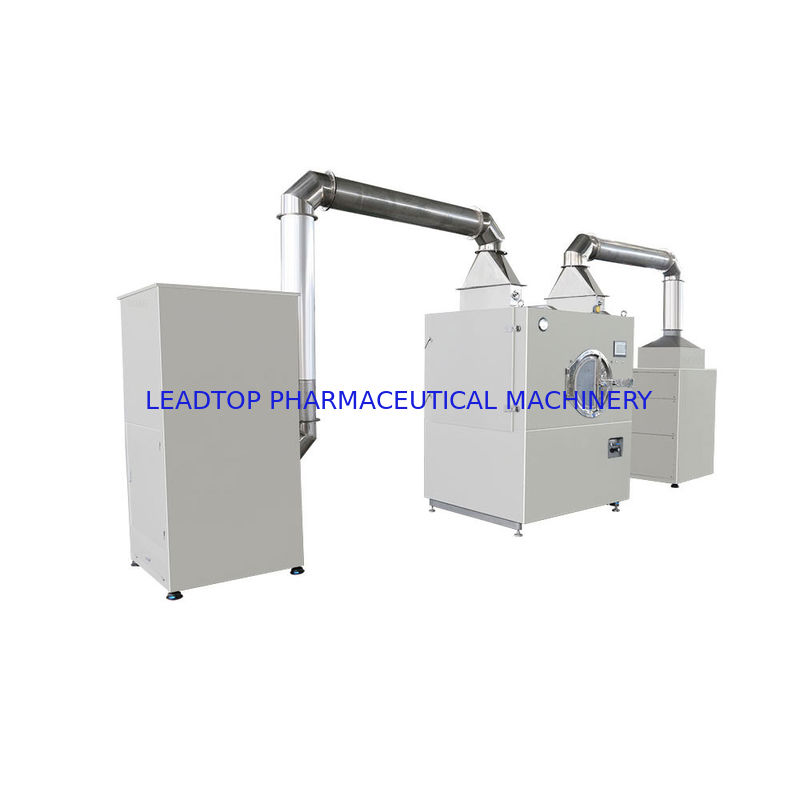

BG-Series High Efficiency Automatic Peanut Sugar Tablet Film Coating Machine With CE Certification
The machine is applied for coating traditional Chinese and Western tablets and pills with sugar, organic film, water soluble film,slow and controlled release film in the fields of pharmacy, food and biology etc.
Main machine, cleaning system, hot-air cabinet, exhaust cabinet and the thermostatic mixing drum are made of high quality,stainless steel, which conforms to "GMP" requirements.
1. The machine can finish organic film coating, water soluble film coating, slow releasing coating, dripping pill coating and sugar coating to tablets, pills, and candies.
2. Imported PLC, HMI, and touch screen are applied to meet requirements of variable pharmacy technology with advantages of stable operation and performance. They also comply with the standards of GMP.
3. Under the force of linear deflector and mixer, tablets reverse fluently, exchange frequently and will not be impacted after falling down from a swell so that tablets keep intact.
4. Peristaltic pump applies continuous variable frequency conversion. The speed can be adjusted within a range of 0~280 r/min to eliminate defects that resistive speed regulation and voltage speed regulation are not stable, potentiometer is breakable easily, and that rotating speed cannot reach zero because of mechanical speed regulation. Lastly, flame-proof and explosion-proof motor is equipped to fully meet the explosion-proof requirements with stable atomization performance. Spraying system can prevent the spray gun from blockage and can be cleaned conveniently without any dead end.
5. The spray gun acquires advantages of evenly atomization and large spray surface. Besides, the adjustable sprayer will not be influenced by liquid volume.
6. The mixer combines mechanism and electricity in one to avoid chaotic layout of wires and air tubes and to be cleaned more easily.
7. It is newly designed that the negative pressure inside the film coating pan can be measured and adjusted automatically to improve the coating quality but save energy.
8. Hot air blower and ventilator are equipped with shockproof and silencing equipment to lower the operation noise of the complete machine and to not harm health of operator.
9. Temperature value is displayed and temperature can be controlled.
10. The function of cleaning guns to avoid blockage is acquired.
Performance And Characteristics:
1.During air intake, three times filtration involving primary filtration, medium filtration and high filtration, can reach 100,000
level purification. During air exhaust,It adopts a bag-type dust extractor.
2.A specially designed air source exchange system.
3.The specially designed imported spray gun features easy to operate and control relevant technological requirements, uniform density and particle size, uniform atomization and large spray area, practical to adjust flow, angle and sector, economization on dressing, free leakage and blockage.
4. PLC automatic control of such process parameters as negative pressure, air flow and temperature etc, automatic run of various process flow in sequence.
|Roller speed adjust range||2-25||2-25||2-20|
|Main machine outline dimension(LxWxH)||900x800x1700||900x840x1800||1080x900x2000|
|Main machine motor power||0.55||0.55||1.1|
|Hot air cabinet motor power||0.37||0.37||0.75|
|Exhaust cabinet motor Power||0.75||0.75||2.2|
|Exhaust cabinet air supply volume||800||900||2500|
