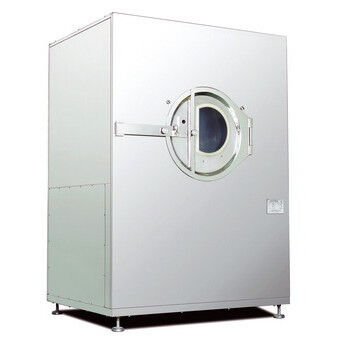

Pill Film Coating Machine With Tablet Volume 10 Kgs Per Batch
Host machine motor power:0.55kw
Max tablet volume: 10kgs/time
Silicon rubber hose:Φ9~16mm
Host machine weight:280㎏
Power Supply: 380V 50HZ Three Phase
Certificate: CE Certificate
Sugar coating drum dia.:Φ600mm
Sugar coating drum speed:2-18 r.p.m
Feed inlet dia:Φ260mm
Material: Stainless steel 304
1. With PLC module, all operations such as hot air temperature setting and control, revolutions of the drum adjustment, automatic control and display of negative pressure etc can be in run by pushing the touch key on the computer-controlled panel fully sealed with slight touch film interface.
2. The machine is free to clean, with such characteristics as reliable and stable performance. The streamline guiding-type mixer drives tablets to make easy and smooth rotation without fragment and chipped edge, which improves the yield. The guiding sheet has a narrow surface, to which no dressing can be stuck, economization on dressing and improving the quality of finished products.
3.The constant-pressure variable crawler pump features the revolution radius of the roller subject to pressure, automatic control of output syrup amounts and sprayed syrup amounts, stabilization of atomization, simplify of spraying system, economization on dressing, easy to fully clean.
4.The specially designed imported s pray gun features east to operate and control technological requirements, uniform density and particle size, uniform atomization and large spray area, practical to adjust flow, free leakage and blockage, angle and sector. The gun can be in operation until its head keeps in the range of 0.29Mpa to 0.39Mpa. Until now, It has been favorably reviewed from users at home and abroad.
This product can be used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film, etc. And it has such characteristics as high efficiency, low energy consumption and small floor area, etc. And it can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc. And it has such characteristics as good appearance in design ,high efficiency, low energy consumption and small floor area, etc. It can automatically spray coating medium according to the process flow and reasonable process parameters. The hot air exhausted through the bottom of the tablets under the effect of air exhaust and negative pressure so as to make coating medium dry quickly on the surfaces of the tablets and form a firm, fine and close and smooth surface film.
|Max. tablet volume||10Kg / time|
|Sugar coating drum dia.||Φ600mm|
|Feed inlet dia||Φ260mm|
|Sugar coating drum speed||2-18 r.p.m|
|Host machine motor power||0.55kw|
|Exhaust cabinet motor power||1.1 kw|
|Exhaust blower air flow||1645 m3/h|
|Hot air cabinet motor power||0.75 kw|
|Air heater air flow||1070 m3/h|
|Air heater temp.-adjust range||~ 80 ℃|
|Hot air cleanness||100000 level|
|Peristaltic pump or lobe pump motor power||0.37kw|
|Silicon rubber hose||Φ9~16mm|
|External dimensions of host machine||
|Host machine weight||280㎏|
|External dimensions of hot air cabinet||
|Hot air cabinet weight||60㎏|
|External dimensions of exhaust cabinet||
|Exhaust cabinet weight||60㎏|
|Air consumption.||0.2m3 /min.|
3 phase and 5 lines
Electric heating type
3 phase and 5 lines10 kw
