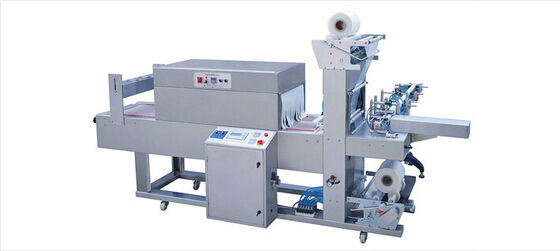

PLC Control Automated Packaging Machine Sleeve Sealing And Shrink Wrapping Machinery

PLC Control Automated Packaging Machine Sleeve Sealing And Shrink Wrapping Machinery

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: BM

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

High Light:

automated packaging equipment

,

packing machine for food products

Product Description



PLC Control Automated Packaging Machine Sleeve Sealing And Shrink Wrapping Machinery





Quick Detail:





Sealing type: sleeve sealing

Power supply: 380V/50-60Hz/3phase

Max Packing capacity: 25 packs per minute

Max product size: 320(L)*150(W)*200(H)mm

Film type: polyethylene(PE)film

Max film size: 400(width)*280mm(outer diameter)

Power consumption: 9.5kW





Description:





1)  Collective packing can save manpower and packing material expenses so as to reduce the costs.
2)  No need to use cardboard as pallet if adopted this model machine.
3)  Special transmission structure avoids the broken of bottles.
4) There is a special protective device in the sealing place, which can effectively prevent from cutting              packaged objects by error.
5)  The leading technology of cold cutting reduces the consumption of electrcal power.
6)  Hot-air cycling system in the shrinking chamber makes products shrink more compactly and                        impressively.
7)  Net-belt transmission structure can correct deviation completely to ensure the good finished package.





Applications:





Bottles, tins and boxes in multi-row. It can be connected and work with auto labeling machine.





Specifications:





  Technical data BMD-600A
  Sealing type
 sleeve sealing
  Power supply
 380V/50-60Hz/3phase
  Max product size
 320(L)*150(W)*200(H)mm
  Max Packing capacity
 25 packs per minute
  Film type
 polyethylene(PE)film
  Max film size
 400(width)*280mm(outer diameter)
  Power consumption
 9.5kW
  Tunnel oven size
 1200mm(L), entrance 450(W)*220(H)mm
  Tunnel conveyor speed
 variable,40m/min
  Tunnel conveyor
 Teflon mesh belt conveyor
  Working height
 850-900mm
  Air pressure
 ≤0.5MPa(5 bar)
  P L C
 SIEMENS S7
  Sealing system
 permanently heated seal bar coated with Teflon
  Operating interface
 Eview displayer
  Machine material
 stainless steel
  Weight
 600kg





Competitive Advantage:





1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
