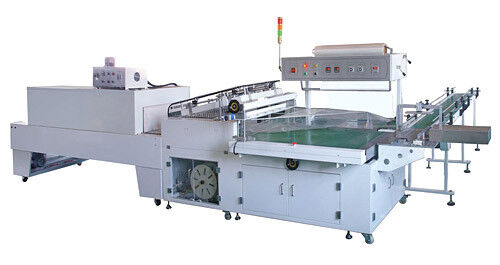

380V 50-60Hz 3 Phase Automated Packaging Machine L Bar Sealer And Shrink Packing Machine

380V 50-60Hz 3 Phase Automated Packaging Machine L Bar Sealer And Shrink Packing Machine

automatic packaging machine

automated packaging equipment

Place of Origin:


Brand Name:

LTPM China



Model Number:


Contact Us

Request A Quote
Product Details
Product Description


380V/50-60Hz/3phase Automated Packaging Machine L-bar Sealing & Shrink Packing Machine



Quick Detail:



Sealing type: L-sealing by means of L-bar
Power supply: 380V/50-60Hz/3phase
Max Packing capacity: 25 packs per minute(depends on product size)
Sealing height: ≤ 180mm
Packing width: ≤ 600mm
Product size: Width+height≤ 680mm length+height≤ 700mm
Film type: Center-folded polyolefin(POF)film
Max film size: 850mm(width)× 280mm(outer diameter)
Power consumption: 16kW
Tunnel conveyor speed: Variable, 40m/min
Tunnel oven size: 2000mm(L)entrance 800(W)× 300(H)mm
Working height: 800-850mm
Air pressure: ≤ 0.5MPa(5 bar)
Sealing system: 2600× 1150× 1600+3000× 1150× 1700
Machine material: Carbon steel
Weight: 1000kg






L bar sealer and shrink packing machine is combination of hot air circulation-type shrink machine and cutting machine. It uses “L” type manual sealing and cutting off.






Single and group products with big size.






 Technical data BS-680
  Sealing type  L-sealing by means of L-bar
  Power supply  380V/50-60Hz/3phase
  Max Packing capacity  25 packs per minute(depends on product size)
  Sealing height  ≤180mm
  Packing width  ≤600mm
  Product size  width+height≤680mm length+height≤700mm
  Film type  center-folded polyolefin(POF)film
  Max film size  850mm(width)×280mm(outer diameter)
  Power consumption  16kW
  Tunnel conveyor speed  variable,40m/min
  Tunnel oven size  2000mm(L),entrance 800(W)×300(H)mm
  Working height  800-850mm
  Air pressure  ≤0.5MPa(5 bar)
  Sealing system  2600×1150×1600+3000×1150×1700
  Machine material  carbon steel
  Weight  1000kg



Competitive Advantage:



1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
