Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE, GMP
Model Number:
KD
Contact Us

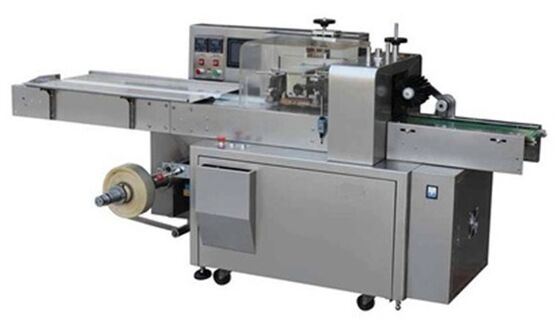

All-Servo System Pillow Type Automatic Packaging Machine With Electronic Text Display
Quick Detail:
Max. film width:250-550mm
Model No.: KD
Capacity: 80-200 times/min
Suitable film thickness:0.03-0.07mm
Weight: 500-800kgs
Power Supply: 220V 2.4kw Three Phase
Certificate: CE Certificate
Description:
1. Controller to Program Operation: This machine adopts PLC Programmable Controller to program operation of the whole machine.
2. Electronic Text Display: The packing output will be displayed on TD-200 Screen to meet your eyes automatic.
3. Adjustment of Bag Length: the packing length can be set directly on TD-200 Screen Display and can be changed very easily and quickly without manual operation.
4.Two-way Compensation Color Code Aligning: Detect the color code with the imported Photoelectric Detecting Senor and conduct automatic compel sating mechanism, thus making color code aligning quick and accurate.
5. Four Sets of Automatic Temperature Controllers: It adopts Temperature Controller on every heating position for automatic temperature control so as to improve the sealing quality.
6. Automatic feeding of medicine plate: It is suitable for automatic feeding of various specification of aluminum-plastic medicine plates.
Applications:
This machine is suitable to pack slice biscuit, chocolate, ice cream, card, bread and commodities, etc.
Specifications:
| Model | 250 | 350 | 450 | 550 |
| Max. film width | 250mm | 350mm | 450mm | 550mm |
| Max packaging capacity | 200times/min | 120times/min | 100times/min | 80times/min |
| Suitable film thickness | 0.03-0.06mm | 0.03-0.06mm | 0.03-0.06mm | 0.03-0.07mm |
| Length of bags | 50-330mm | 65-330mm | 65-330mm | 180-600mm |
| Packaging with | 25-100mm | 25-150mm | 25-200mm | 60-220mm |
| Packaging high | ≤40mm | ≤80mm | ≤80mm | ≤120mm |
| Total power | 2.4KW 220V | 2.4KW 220V | 2.4KW 220V | 2.8KW 220V |
| Overall dimensions(L×W×H) | 3500×880×1500 | 4000×1050×1560 | 4200×1100×1750 | 4200×1200×1800 |
| Weight | 500 | 600 | 800 | 800 |
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
