Product Details:

Place of Origin: Zhejiang Province,China
Brand Name: LTPM CHINA
Certification: CE, GMP, SGS, BV
Model Number: DXD-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 45 sets/month
Get Best Price Contact Now

Detail Information

Machine: Pillow Packaging Machine Max.Film Width: 260mm
Max Capacity Of Packing: 20-120 Pcs/ Min Film Thickness: Film Thickness
Bag Length: 60-300 ( Do Not Exceed This Size ) Packing Width: 25-150mm
High Light:

Lucidum Powder Automated Packaging Machine

,

Automated Packaging Machine 5.5kw

,

50ml Automated Packaging Machine

Product Description

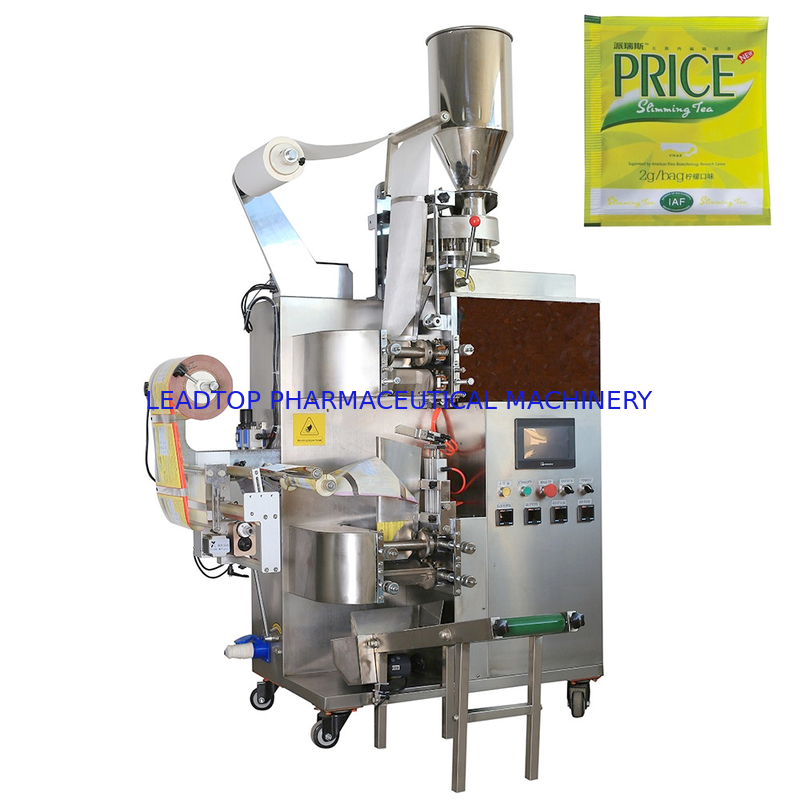

Lucidum Powder Automated Packaging Machine



During the packaging process of the DXD-series packaging machine, the material is fed through the material stretching and feeding device. The plastic film is formed into a cylindrical shape through the film cylinder, and the side is sealed by the heat longitudinal sealing device. The color code photoelectric detection device cuts the length and position of the packaging.





Main Features
1.PLC control system, touch operation, using Ethernet connection, can realize remote control.

2.Different packaging formulations of many different materials can be stored at the same time.

3.The servo motor drives the film transmission to ensure the stable, accurate and high-precision film transportation system.

4.The intelligent temperature control system can directly set the temperature value through the touch screen, so that the sealing is smooth and beautiful.

5.Photoelectric tracking adjustment controls the length of the bag.

6.The film is automatically corrected.

7.Can be rounded and not rounded.

8.According to materials and other factors, matching optional devices (such as nitrogen filling devices) can be added.

9.It can be matched with different metering equipment such as screw metering machine, measuring cup, metering pump, etc.



Technical Parameters

Items / Model
DXD-350K
DXD-500K
DXD-900K
Pouch length
50-250mm(L) (adjustable)
50~160mm
50~120mm( Pouch length can change)
Pouch width
50-85mm(W)
50~105mm
50~105mm
Packing speed
30-50times/min depend on pouch size and material
20~50times/nim(depend on pouch size and material)
80times/nim(depend on pouch size & material)
Measuring range
1-50ml
1~80ml
1~80ml
Applicable film
PET/AL/PE PET/PE NY/AL/PE NY/PE
PET/AL/PE PET/PE NY/AL/PE NY/PE
PET/AL/PE PET/PE NY/AL/PE NY/PE
Max width of film roll
350mm
500mm
900mm
Max film roll diameter
300mm
420mm
Φ300mm
Film roll core diameter
75mm
75mm
Φ75mm
Power voltage
220V/ 50HZ(do as customer’s request)
380V50Hz 3P 4W
380V 50Hz (do as customer's request)
Power
5.5kw
12 Kw
12 Kw
Gross Weight
650kg
1200kg
1200kg
Package size
(L)1400mm×(W)1000mm×(H)1700mm
1680x1280x2050mm
1500x1540x2200mm(L x W x H)



Lucidum Powder Automated Packaging Machine 5.5kw 50ml Range 0

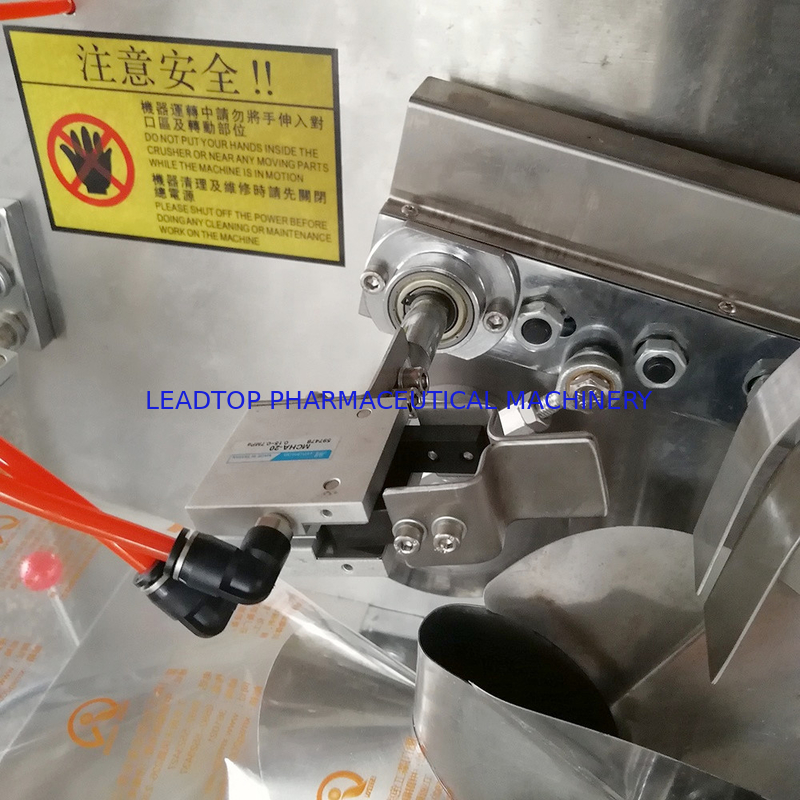

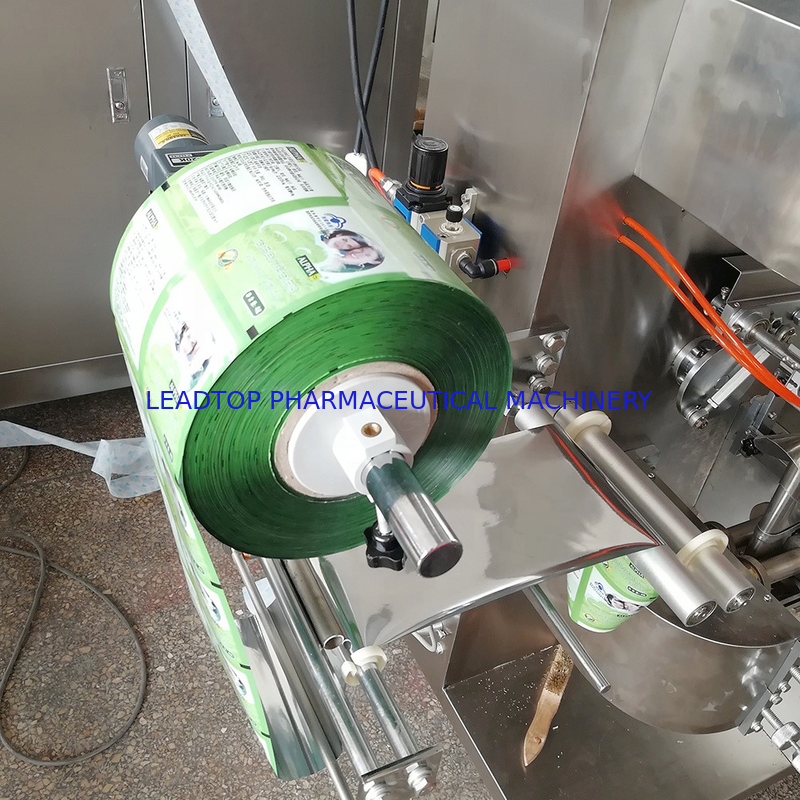

Machine Details

Lucidum Powder Automated Packaging Machine 5.5kw 50ml Range 1

Lucidum Powder Automated Packaging Machine 5.5kw 50ml Range 2



Application

DXD-Series is suitable for inner bag and outer envelope, and for packing small granular products such as tea leaf, medicinal tea and health care tea.

Lucidum Powder Automated Packaging Machine 5.5kw 50ml Range 3

Machine Production Process

Lucidum Powder Automated Packaging Machine 5.5kw 50ml Range 4
