Curry Powder Automated Vffs Packaging Machine 20pcs/Min

Curry Powder Automated Vffs Packaging Machine 20pcs/Min

Product Details:

Place of Origin: Zhejiang Province,China
Brand Name: LTPM CHINA
Certification: CE, GMP, SGS, BV
Model Number: DXD-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 45 sets/month
Get Best Price Contact Now

Detail Information

Machine: Pillow Packaging Machine Max.Film Width: 260mm
Max Capacity Of Packing: 20-120 Pcs/ Min Film Thickness: Film Thickness
Bag Length: 60-300 ( Do Not Exceed This Size ) Packing Width: 25-150mm
High Light:

Automated Vffs Packaging Machine

,

Curry Powder Vffs Packaging Machine

,

Vffs Packaging Machine 20pcs/Min

Product Description

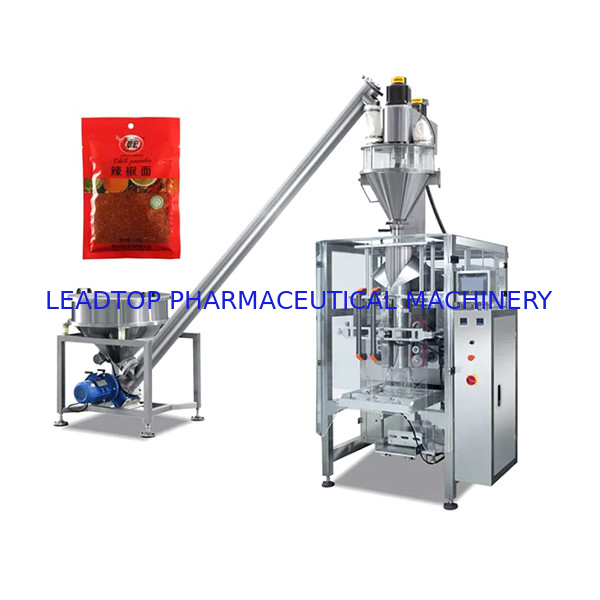

Curry Powder Automated Vffs Packaging Machine 20pcs/Min

Curry Powder Automated Vffs Packaging Machine 20pcs/Min



DXD-series packaging machines are special strip bags for cutting and rounding packaging. It is suitable for all kinds of powder and fine granular packaging, such as milk powder, seasoning, flour, coffee, etc.

The packaging machine adopts two-channel parallel connection, which occupies less production space and has high production efficiency.

The failure of a single channel does not affect the normal operation of the other channel, which is convenient for maintenance.

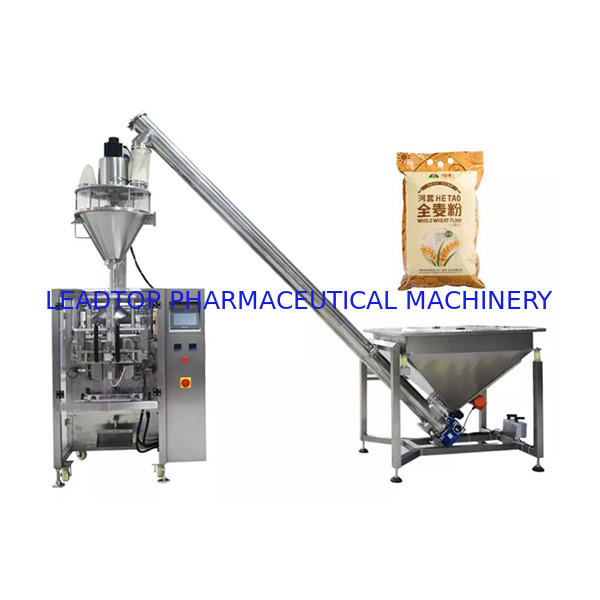

Curry Powder Automated Vffs Packaging Machine 20pcs/Min 0


This is our Automatic Powder Packing Machine require limited operator intervention.

The operator need only replenish product by loading supply hoppers,changing packaging film and bag former.



Combined Parts:
Necessary:

Screw Elevator

Auger Filler
DXD-Series Packing Machine

Conveyor
1: Made of stainless steel, rust and durable, easy operation and maintenance.
2: Controller by PLC, operate by touch screen, driving by stepper motor control.
3: Film moving very smooth and have serson tracking, shape of bag, dimension of bag is very well.
4: Horizontal and vertical sealing temperature can adjustable, better for lof of packaging film.
5: From filling, bagging, printing date, inflatable (exhaust) one-time completion.

Curry Powder Automated Vffs Packaging Machine 20pcs/Min 1

Product Features:
1. High precision structure for simple and easy operation and repair.
2. The machine fix stepper motor controller,its advantage is precise,needless to adjust other parts, easy and accurate to set the bag length.
3 .It's owns simple circuitry and outstanding function.
4 .The machine completes the whole procedure of filling, bagging, date printing,charging(exhausting) automatically.
5 .Select device: Linked bags device, triangle seal's horizontal seal.

6.It has color control system which can get the complete trade mark design (photoelectricity control system).

7. Be able to weight, bag-making, filling, sealing, cutting,lot number automatically.

8. Intelligent temperature control by temperature controller to make heat balance better.use bilingual display screen control system and stainless steel cabinet

9. Fine packaging performance ,low noise ,clear sealing texture and strong sealing performance

10. With safe plastic box on rotating blade to avoid hurting operator's hands

11. Need to change new temperature controller,blade& pressing mode only after 3 years continuous operation,2 shifts a day and other parts is still good and safe freely)

12. With printer (to be able to code the date and batch number) and rotating blade(be able to adjust the length of bag and shape of bag notch edge packing.

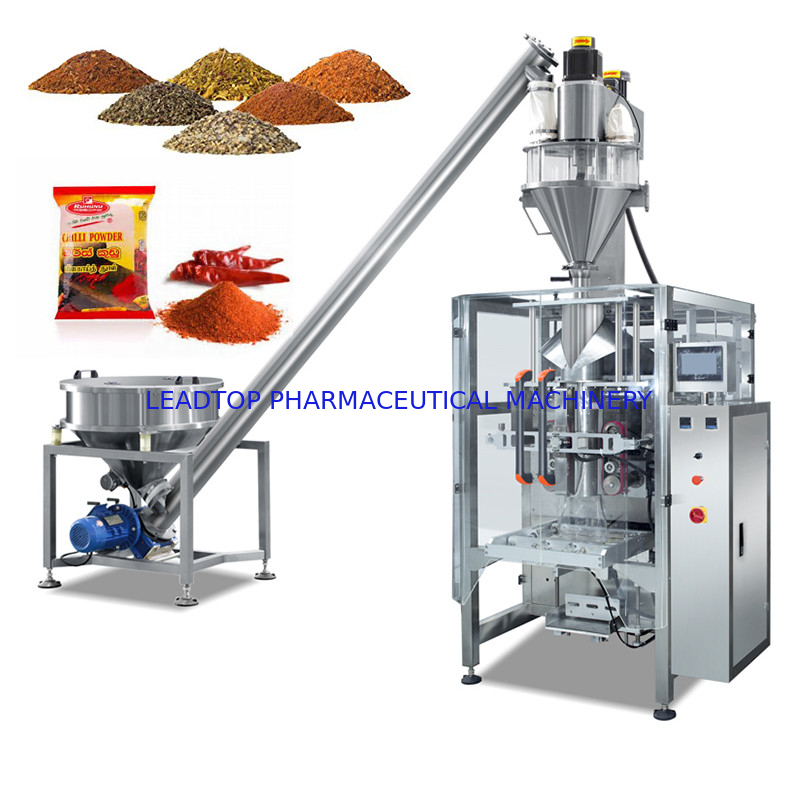

Curry Powder Automated Vffs Packaging Machine 20pcs/Min 2



Technical Parameters

Items / Model
DXD-350K
DXD-500K
DXD-900K
Pouch length
50-250mm(L) (adjustable)
50~160mm
50~120mm( Pouch length can change)
Pouch width
50-85mm(W)
50~105mm
50~105mm
Packing speed
30-50times/min depend on pouch size and material
20~50times/nim(depend on pouch size and material)
80times/nim(depend on pouch size & material)
Measuring range
1-50ml
1~80ml
1~80ml
Applicable film
PET/AL/PE PET/PE NY/AL/PE NY/PE
PET/AL/PE PET/PE NY/AL/PE NY/PE
PET/AL/PE PET/PE NY/AL/PE NY/PE
Max width of film roll
350mm
500mm
900mm
Max film roll diameter
300mm
420mm
Φ300mm
Film roll core diameter
75mm
75mm
Φ75mm
Power voltage
220V/ 50HZ(do as customer’s request)
380V50Hz 3P 4W
380V 50Hz (do as customer's request)
Power
5.5kw
12 Kw
12 Kw
Gross Weight
650kg
1200kg
1200kg
Package size
(L)1400mm×(W)1000mm×(H)1700mm
1680x1280x2050mm
1500x1540x2200mm(L x W x H)

Machine Details

Curry Powder Automated Vffs Packaging Machine 20pcs/Min 3

Application

This machine is suitable for packaging many kinds of liquid, such as: milk, oil, shampoo, drink, sauce, and jam, etc.

Applicable packing film
Paper/PE, PT/PE, PET/AL/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed.

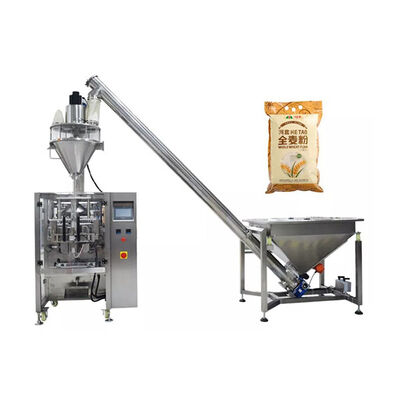

Curry Powder Automated Vffs Packaging Machine 20pcs/Min 4





Our affordable, easy to use packaging machine are suitable for company wanting to automate their packaging processes for the first time or to the larger producer looking for more productivity and efficiency.
