Automated Milk Sauce Liquid Filling Packaging Machine 120pcs/Min

Automated Milk Sauce Liquid Filling Packaging Machine 120pcs/Min

Sauce Liquid Filling Packaging Machine

260mm Film Liquid Filling Packaging Machine

Liquid Filling Packaging Machine 120pcs/Min

Place of Origin:

Zhejiang Province,China

Brand Name:

LTPM CHINA

Certification:

CE, GMP, SGS, BV

Model Number:

DXD-Series

Contact Us

Request A Quote
Product Details
Machine:
Pillow Packaging Machine
Max.Film Width:
260mm
Max Capacity Of Packing:
20-120 Pcs/ Min
Film Thickness:
Film Thickness
Bag Length:
60-300 ( Do Not Exceed This Size )
Packing Width:
25-150mm
Product Description

Automated Milk Sauce Liquid Filling Packaging Machine 120pcs/Min



Automatic Powder Packing Machine is widely used to pack Packing Machine with Auger Filler is ideal for powder products (milk powder, coffee powder, flour, spice, cement , curry powder, ect.)

Why choose us
1. Efficient and simple to use.
2. Use famous brand electric and
pneumatic components, stable and long life circle.
3. Superior mechanical components.
4. Easy to install film.
5. Apply advanced operating system.
6. Easy to use and reprogramable.
7. To be used on VIZI High quality machine.
8. Four servo motor for reciprocating pull film system, can reach 180 bpm.
9. Automatically film recitifying function,smart and convenient.
10. High speed packing, save labour, resoures and place.
11. Many kinds of languages can be choosen.

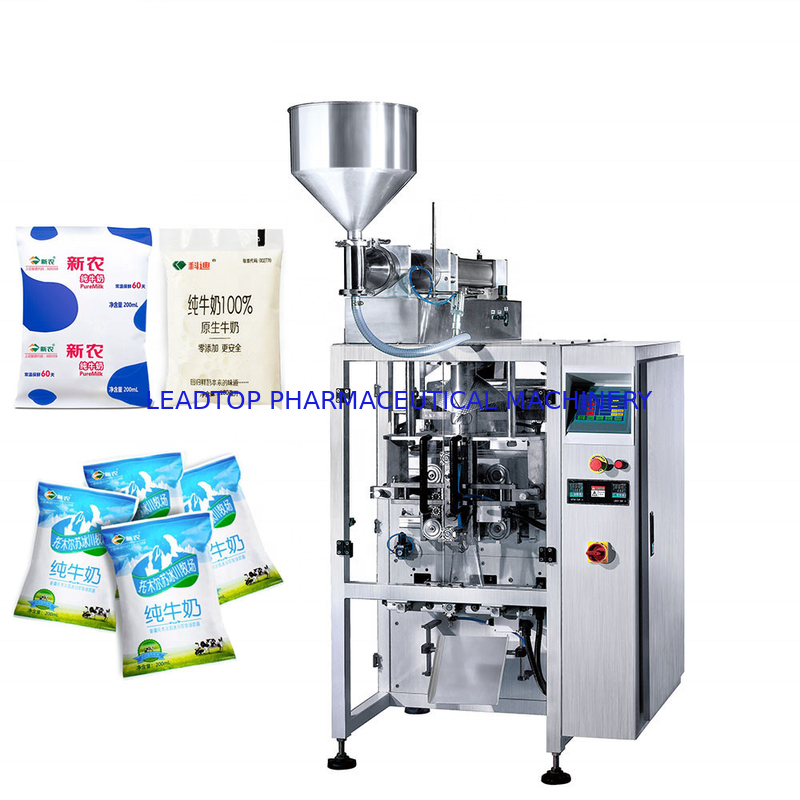

Automated Milk Sauce Liquid Filling Packaging Machine 120pcs/Min 0

Machine Features:
1. This machine can finish : forming bag--measuring--material filling-sealing-counting-date code printing, all
the work automatically; 2. Photoelectric and tracing system or computer system can be provided without your specific requirements.
3. The PLC controller has the advantages such as setting the length of the bag; the out put alarm and the speed and quantity with buttons;
4. This machine can be installed to code printer for 1-3 lines characters such as production and expiry date according to your special request.
5.Eye Mark System ,machine can cut complete logo 6.Machine Stop Automaticlly if it is out of film 7.Fine
Packaging performance.low noise .clear sealing texture and strong sealing performance

Automated Milk Sauce Liquid Filling Packaging Machine 120pcs/Min 1





Technical Parameters

Items / Model
DXD-350K
DXD-500K
DXD-900K
Pouch length
50-250mm(L) (adjustable)
50~160mm
50~120mm( Pouch length can change)
Pouch width
50-85mm(W)
50~105mm
50~105mm
Packing speed
30-50times/min depend on pouch size and material
20~50times/nim(depend on pouch size and material)
80times/nim(depend on pouch size & material)
Measuring range
1-50ml
1~80ml
1~80ml
Applicable film
PET/AL/PE PET/PE NY/AL/PE NY/PE
PET/AL/PE PET/PE NY/AL/PE NY/PE
PET/AL/PE PET/PE NY/AL/PE NY/PE
Max width of film roll
350mm
500mm
900mm
Max film roll diameter
300mm
420mm
Φ300mm
Film roll core diameter
75mm
75mm
Φ75mm
Power voltage
220V/ 50HZ(do as customer’s request)
380V50Hz 3P 4W
380V 50Hz (do as customer's request)
Power
5.5kw
12 Kw
12 Kw
Gross Weight
650kg
1200kg
1200kg
Package size
(L)1400mm×(W)1000mm×(H)1700mm
1680x1280x2050mm
1500x1540x2200mm(L x W x H)

Automated Milk Sauce Liquid Filling Packaging Machine 120pcs/Min 2

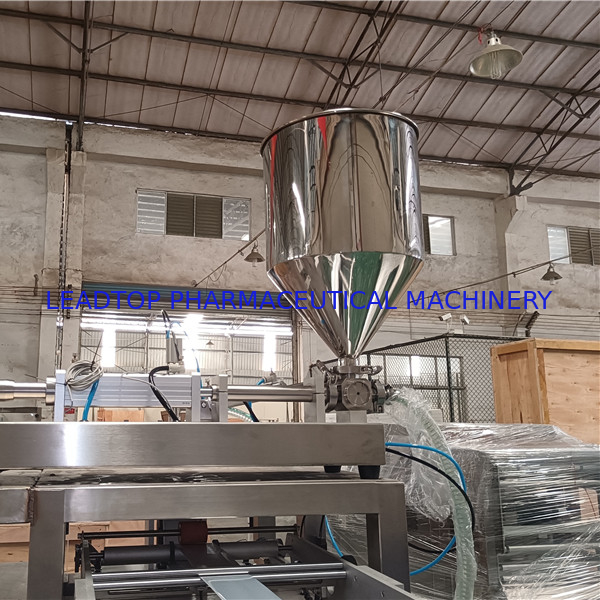

Machine Details

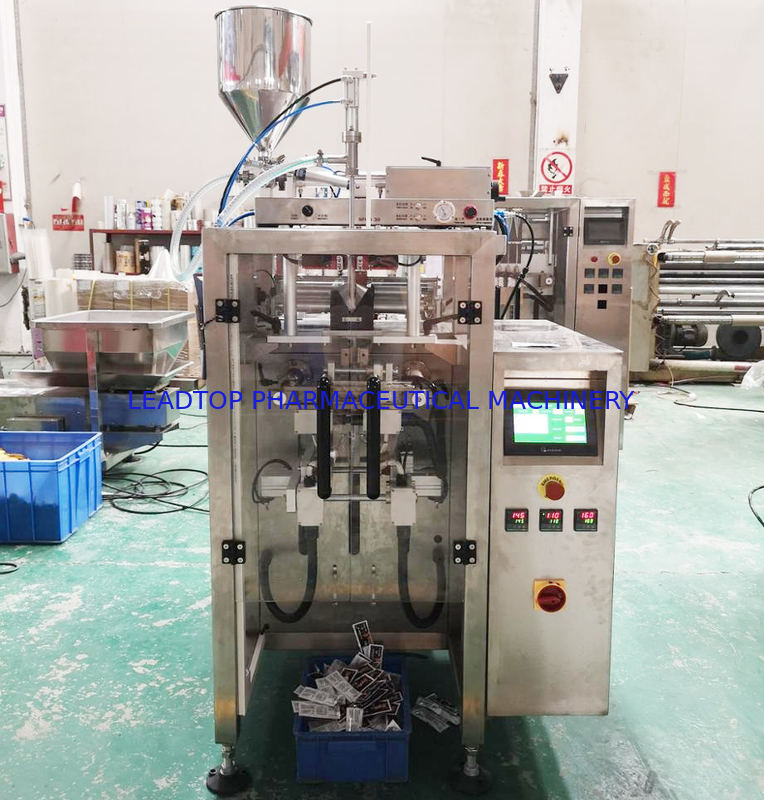

Automated Milk Sauce Liquid Filling Packaging Machine 120pcs/Min 3

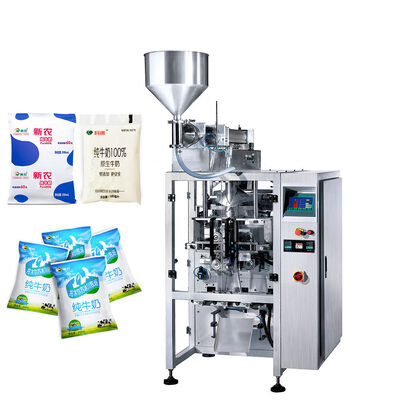

Automated Milk Sauce Liquid Filling Packaging Machine 120pcs/Min 4



Application

This machine is suitable for packaging many kinds of liquid, such as: milk, oil, shampoo, drink, sauce, and jam, etc.

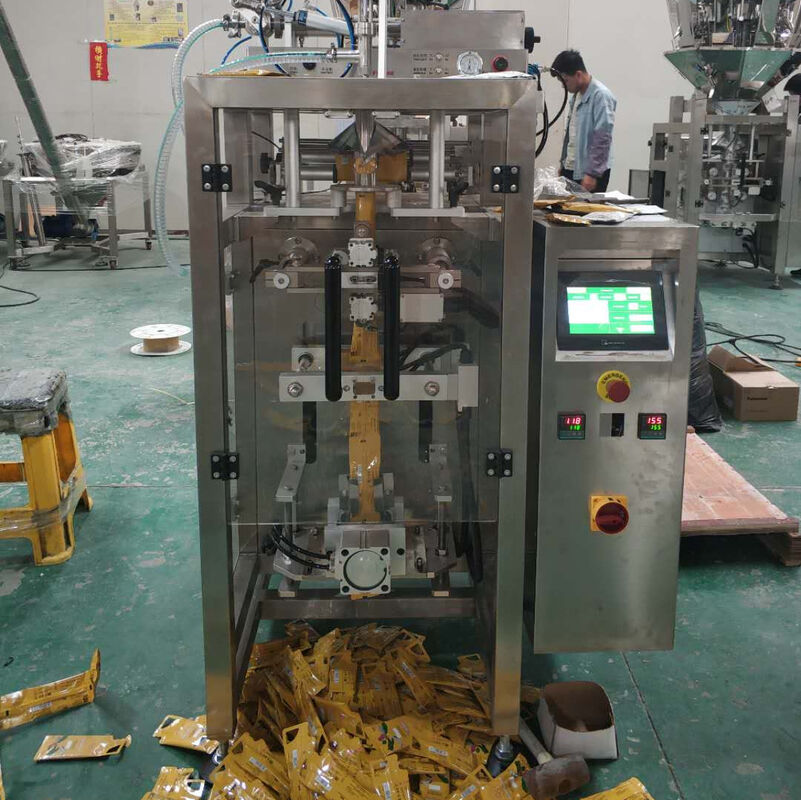

Automated Milk Sauce Liquid Filling Packaging Machine 120pcs/Min 5

Automated Milk Sauce Liquid Filling Packaging Machine 120pcs/Min 6
